MODEL: KS2

KS2 SPECIFICATIONS

ES-3612 Rev.6 Page 3/4

http://www.m-system.co.jp/

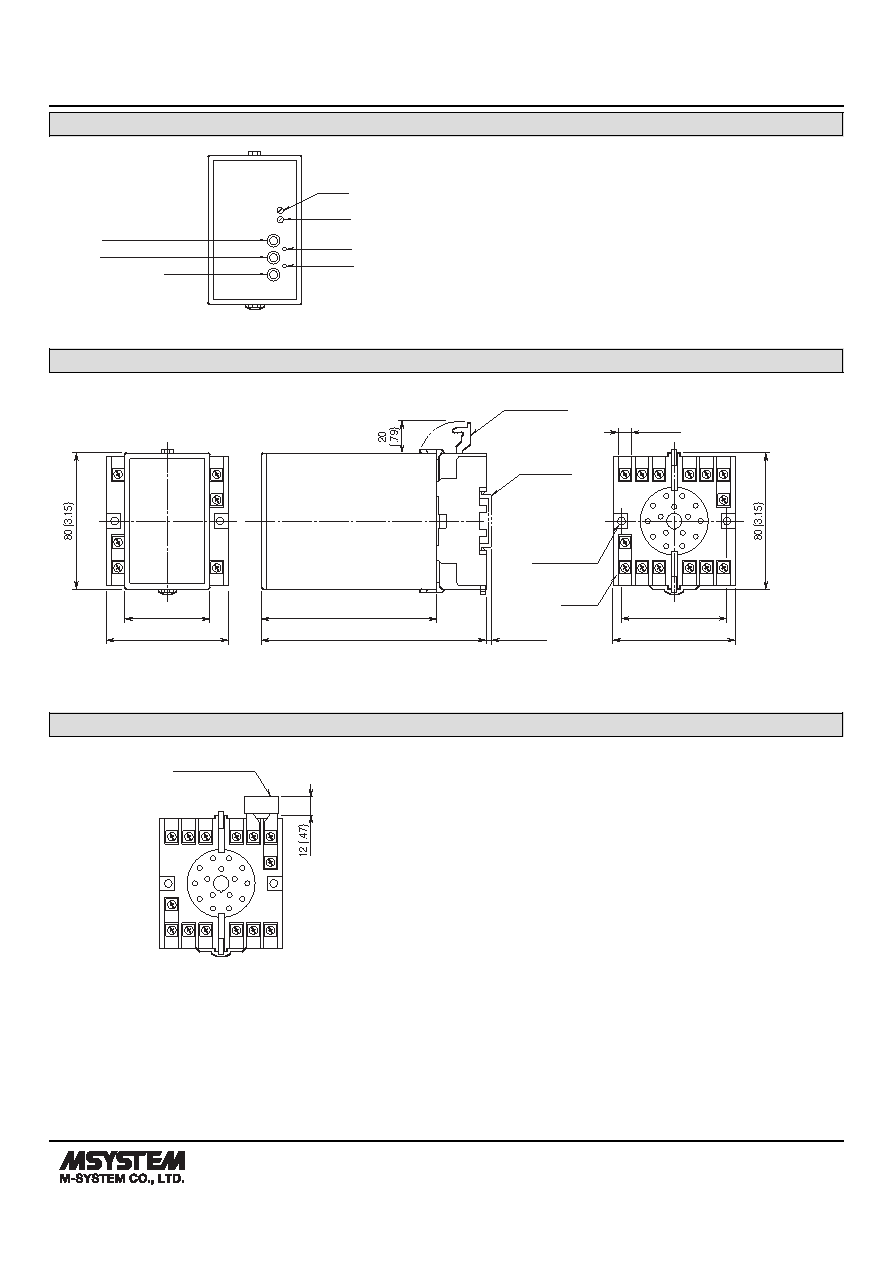

EXTERNAL VIEW

Lo LED

Hi LED

Lo Adj.

Hi Adj.

Hi Setpoint Monitor

Lo Setpoint Monitor

COM.

EXTERNAL DIMENSIONS unit: mm (inch)

50 (1.97)

72 (2.83)

[3.3 (.13)]

60 (2.36)

72 (2.83)

7.8 (.31)

CLAMP

(top & bottom)

DIN RAIL

35mm wide

MTG HOLE

25 (.98) deep

SCREW

• When mounting, no extra space is needed between units.

12

5

6

14

11

1

10

15

4

3

2

7

9

8

103 (4.06)

132 (5.20)

TERMINAL ASSIGNMENTS unit: mm (inch)

5

6

14

11

1

10

15

3

2

7

9

8

INPUT RESISTOR

(model: REM)

Input shunt resistor attached

for current input.

12 4
