MODEL: LCS

LCS SPECIFICATIONS

ES-1360 Rev.3 Page 3/3

http://www.m-system.co.jp/

EXTERNAL VIEW

LCD Meter

Span Adj.

Zero Adj.

Excitation Adj.

Loop Test Selector

Top

Middle

Bottom

: 0% fixed

: 100% fixed

: Cancel

(normal operating mode)

NEXT Key

ENTER Key

■ Option /E

■ Option /E2

LCD Meter

Span Adj.

Zero Adj.

Excitation Adj.

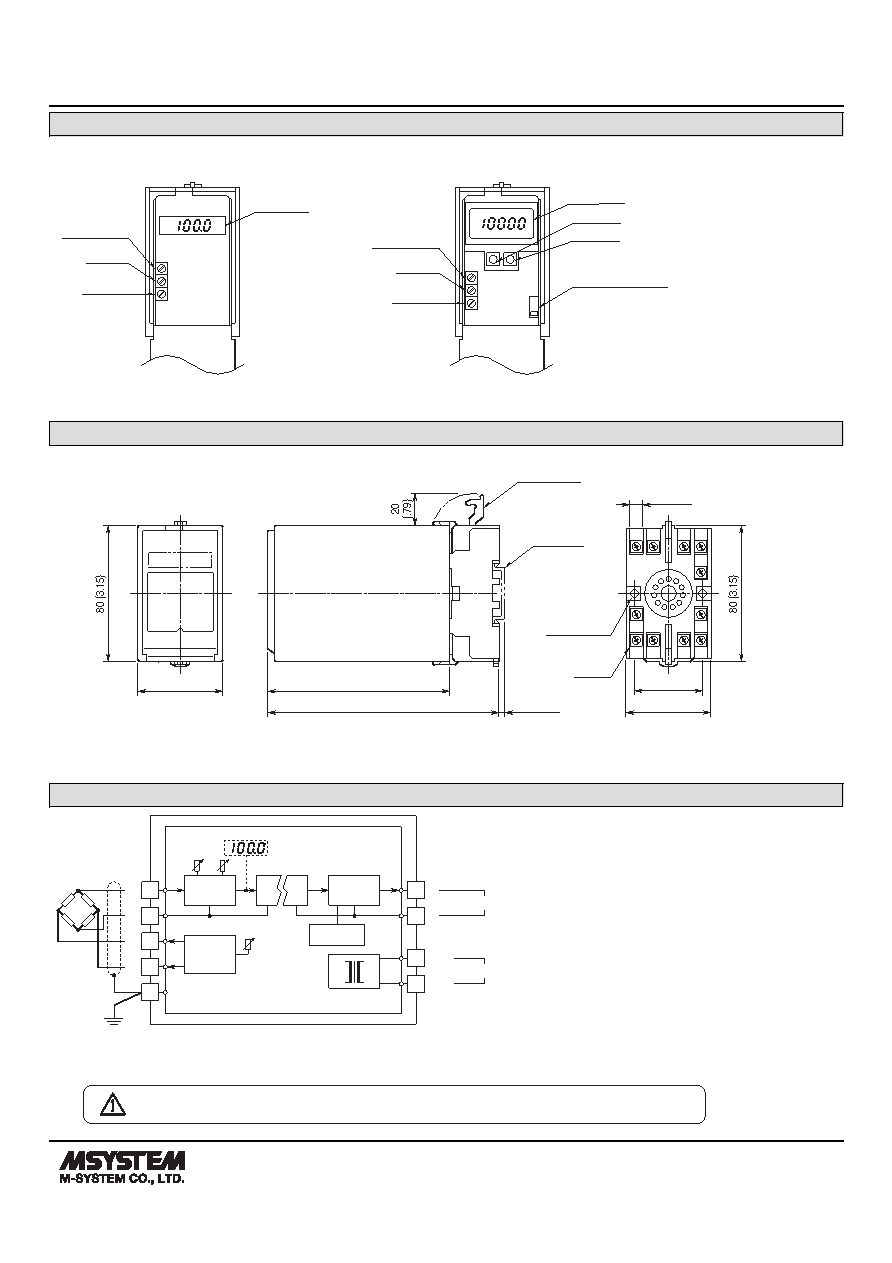

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

5

6

7

8

2

1

11

10

50 (1.97)

107 (4.21)

136 (5.35)

[3.3 (.13)]

40 (1.57)

50 (1.97)

7.8 (.31)

CLAMP

(top & bottom)

DIN RAIL

35mm wide

MTG HOLE

25 (.98) deep

SCREW

• When mounting, no extra space is needed between units.

3

9

4

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

Isolation

*

Base Socket

Low Drift

Amplifier

Output

Driver

1

2

Z

S

7

8

+ 10

3

9

11

6

+

STRAIN

GAUGE

Option /E, E2

Option /E2

Low Drift

DC Volt.

Stabilizer

EXC.

LOOP TEST

SELECTOR

**

*

**

+

–

OUTPUT

U(+)

V(–)

POWER

–

–
