Data Sheet

ADMV1011

Rev. A | Page 21 of 26

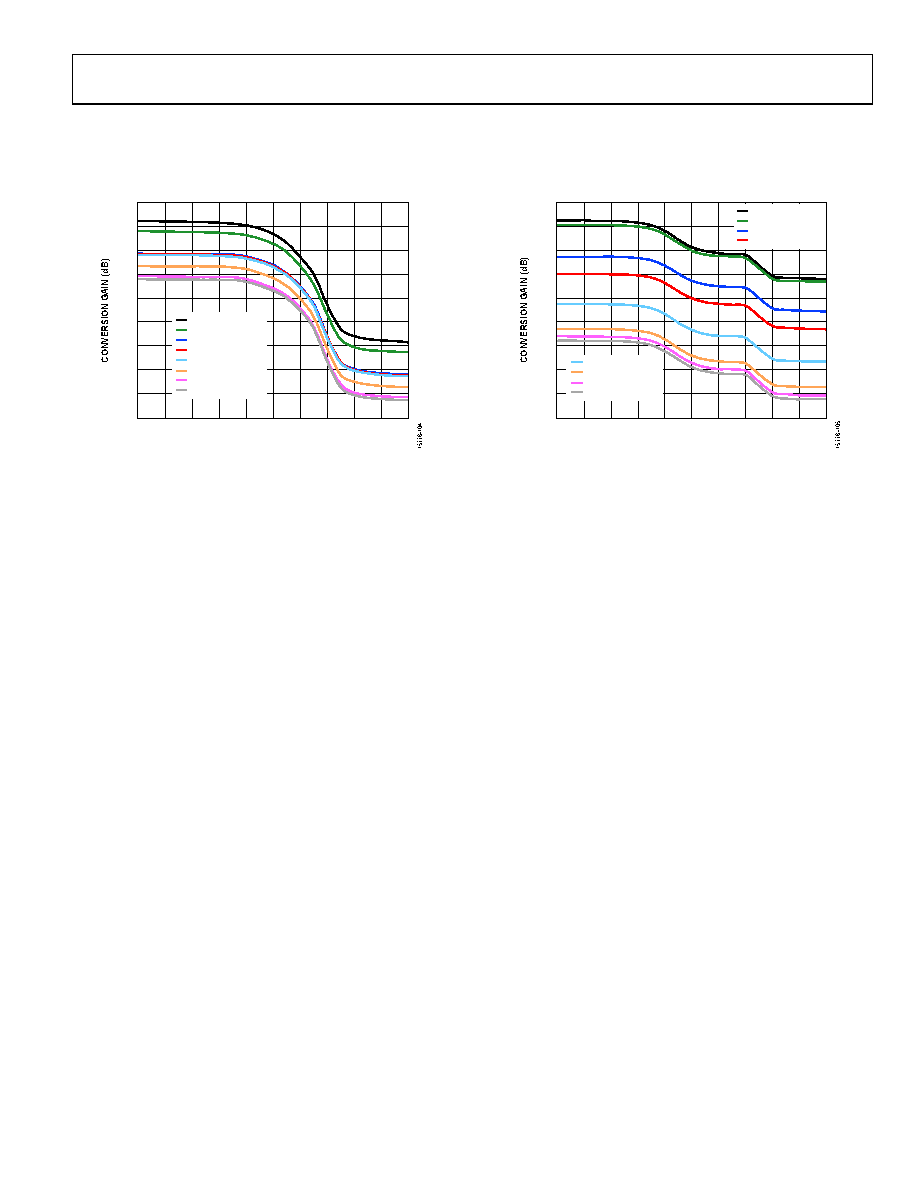

Figure 61 shows the conversion gain vs. VCTRL2 for different

VCTRL3 voltages at RFOUT = 23 GHz. Figure 61 shows 30 dB

attenuation can be obtained at VCTRL2 = −1 V and VCTRL3 =

−2 V. The overall attenuation range is 35 dB.

VCTRL2 (V)

–20

–15

–10

–5

–4.5

–5.0

–4.0 –3.5 –3.0 –2.5 –2.0 –1.5 –1.0 –0.5

VCTRL3 = –5.00V

VCTRL3 = –3.00V

VCTRL3 = –2.00V

VCTRL3 = –1.75V

VCTRL3 = –1.50V

VCTRL3 = –1.25V

VCTRL3 = –1.00V

VCTRL3 = –0.50V

Figure 61. Conversion Gain vs. VCTRL2 at Different VCRTL3 Voltages

Figure 62 shows the conversion gain vs. VCTRL3 for different

VCTRL2 voltages at RFOUT = 23 GHz. Figure 62 shows 30 dB

attenuation can be obtained at VCTRL2 = −1 V and VCTRL3 =

−1 V. The overall attenuation range is 37 dB.

VCTRL3 (V)

–20

–15

–10

–5

–4.5

–5.0

–4.0 –3.5 –3.0 –2.5 –2.0 –1.5 –1.0 –0.5

VCTRL2 = –5.00V

VCTRL2 = –3.00V

VCTRL2 = –2.00V

VCTRL2 = –1.75V

VCTRL2 = –1.50V

VCTRL2 = –1.25V

VCTRL2 = –1.00V

VCTRL2 = –0.50V

Figure 62. Conversion Gain vs. VCTRL3 at Different VCRTL2 Voltages
