Data Sheet
ADRF6780
Rev. D | Page 19 of 35
OUTPUT DETECTOR PERFORMANCE
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
–35
–30
–25
–20
–15
–10
–5
0
5
10
POUT AT 15GHz (dBm)
–40°C
+25°C
+85°C

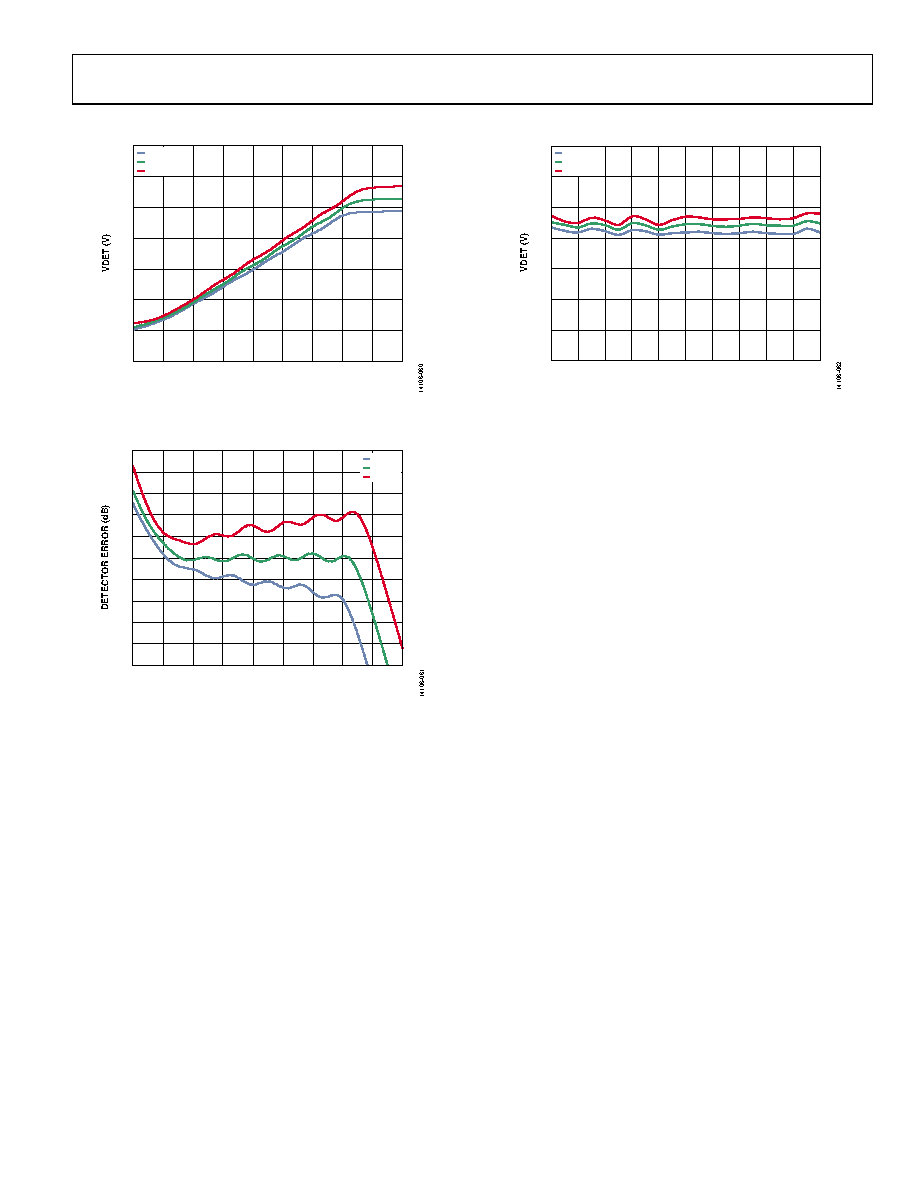

Figure 60. Detector Output (VDET) vs. Output Power (POUT) at 15 GHz for
Various Temperatures
–5
–4
–3
–2
–1
0
1
2
3
4
5
–35
–30
–25
–20
–15
–10
–5
0
5
10
POUT AT 15GHz (dBm)
–40°C
+25°C
+85°C
Figure 61. Detector Error vs. Output Power (POUT) at 15 GHz for
Various Temperatures
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
5
7
9
11
13
15
17
19
21
23
25
RF FREQUENCY (GHz)
–40°C
+25°C
+85°C
Figure 62. Detector Output (VDET) vs. RF Frequency (fRF),
−5 dBm Output Power (POUT) for Various Temperatures
