LM386

LINEAR INTEGRATED CIRCUIT

UNISONICTECHNOLOGIESCO.,LTD

6 of 8

www.unisonic.com.tw

QW-R107-007.H

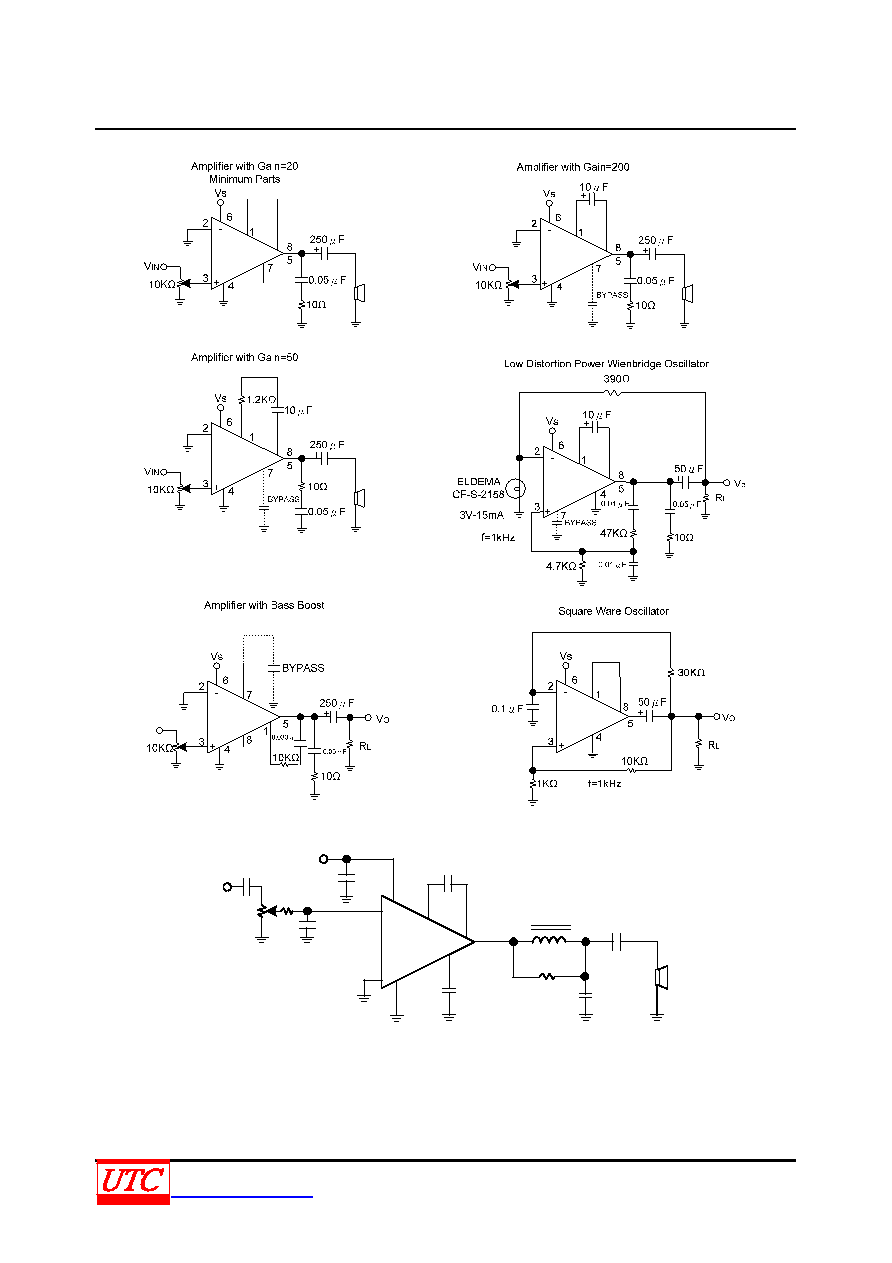

TYPICAL APPLICATIONS CIRCUIT

FROM

DETECTOR

10KΩ

250μF

0.05μF

AM Radio Power

Amplifier

10μF

VOL

10KΩ

2200pF

0.05μF

8Ω

SPEAKER

FERRITE

BEAD

47Ω

Note 1: Twist Supply lead and supply ground very tightly.

Note 2: Twist speaker lead and ground very tightly.

Note 3: Ferrite bead in Ferroxcube K5-001-001/3B with 3 turns of wire.

Note 4: R1C1 band limits input signals.

Note 5: All components must be spaced very closely to IC.
