R2K-1-R 데이터시트(PDF) 2 Page - M-System Co.,Ltd. |
|
|
|||||||||||||||||||||||||||||
R2K-1-R 데이터시트(HTML) 2 Page - M-System Co.,Ltd. |
|
|

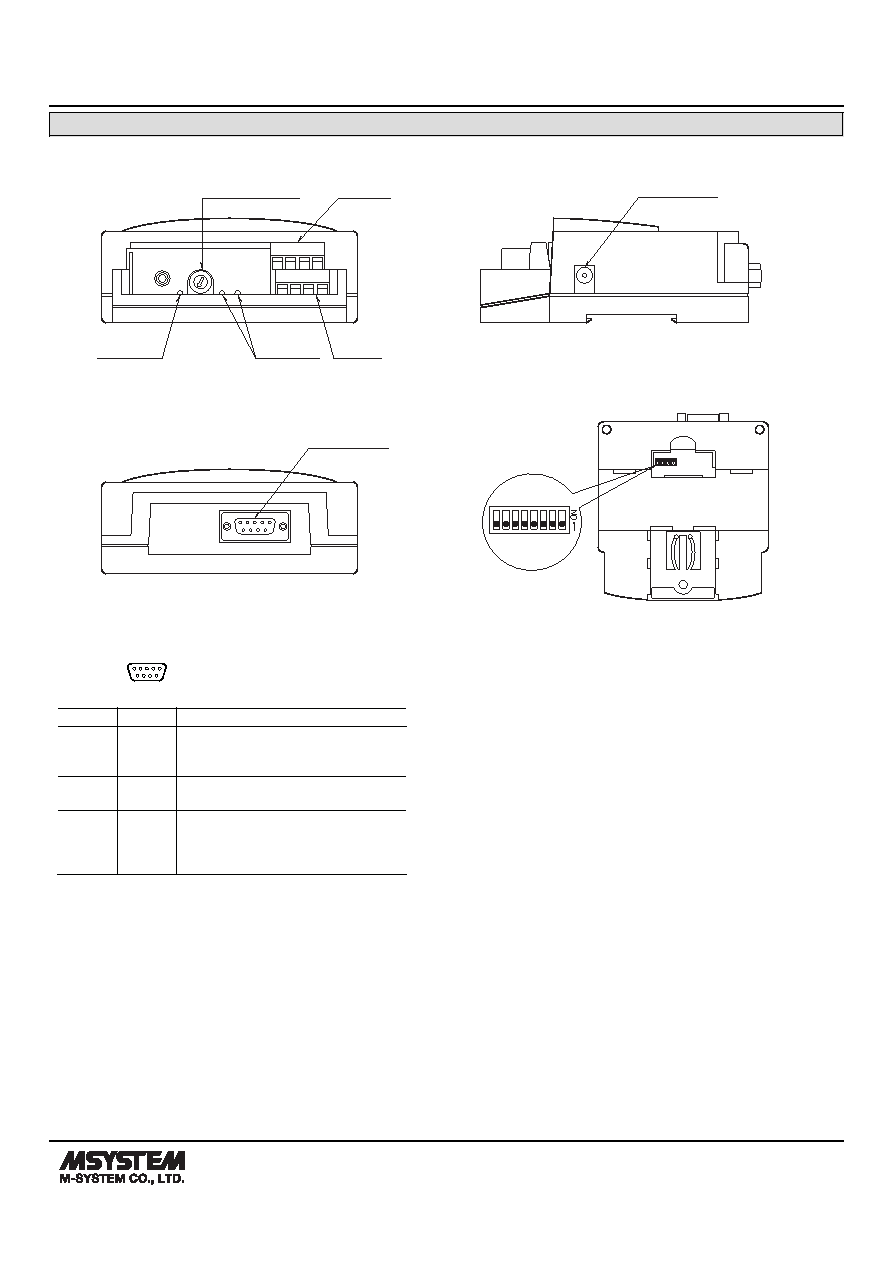

2 / 3 page  MODEL: R2K-1 R2K-1 SPECIFICATIONS ES-6701 Rev.5 Page 2/3 https://www.m-system.co.jp/ EXTERNAL VIEW AC Adaptor Jack RS-485 Connector Baud Rate Selector DC Power Terminals ERROR Indicator LED RUN Indicator LED ■ FRONT VIEW RS-232-C 9-pin Connector Data, Parity, Stop Bit DIP SW ■ REAR VIEW ■ BOTTOM VIEW RS-232-C ■ SIDE VIEW B RATE CONFIG RUN ERR.1 ERR.2 T4 T3 T2 T1 + – 1 2 3 4 5 6 7 8 ABBR. PIN NO. EXPLANATION OF FUNCTION BA (SD) 2 Transmitted Data BB (RD) 3 Received Data AB (SG) 5 Signal Common CB (CS) 7 Clear to Send CA (RS) 8 Request to Send 1 Not Used. 4 DO NOT connect. Connecting may 6 cause malfunctions. 9 1 5 6 9 ■ RS-232-C INTERFACE |
|
|
