MODEL: R1D-GH2
R1D-GH2 SPECIFICATIONS
ES-5958 Rev.8 Page 3/5
http://www.m-system.co.jp/

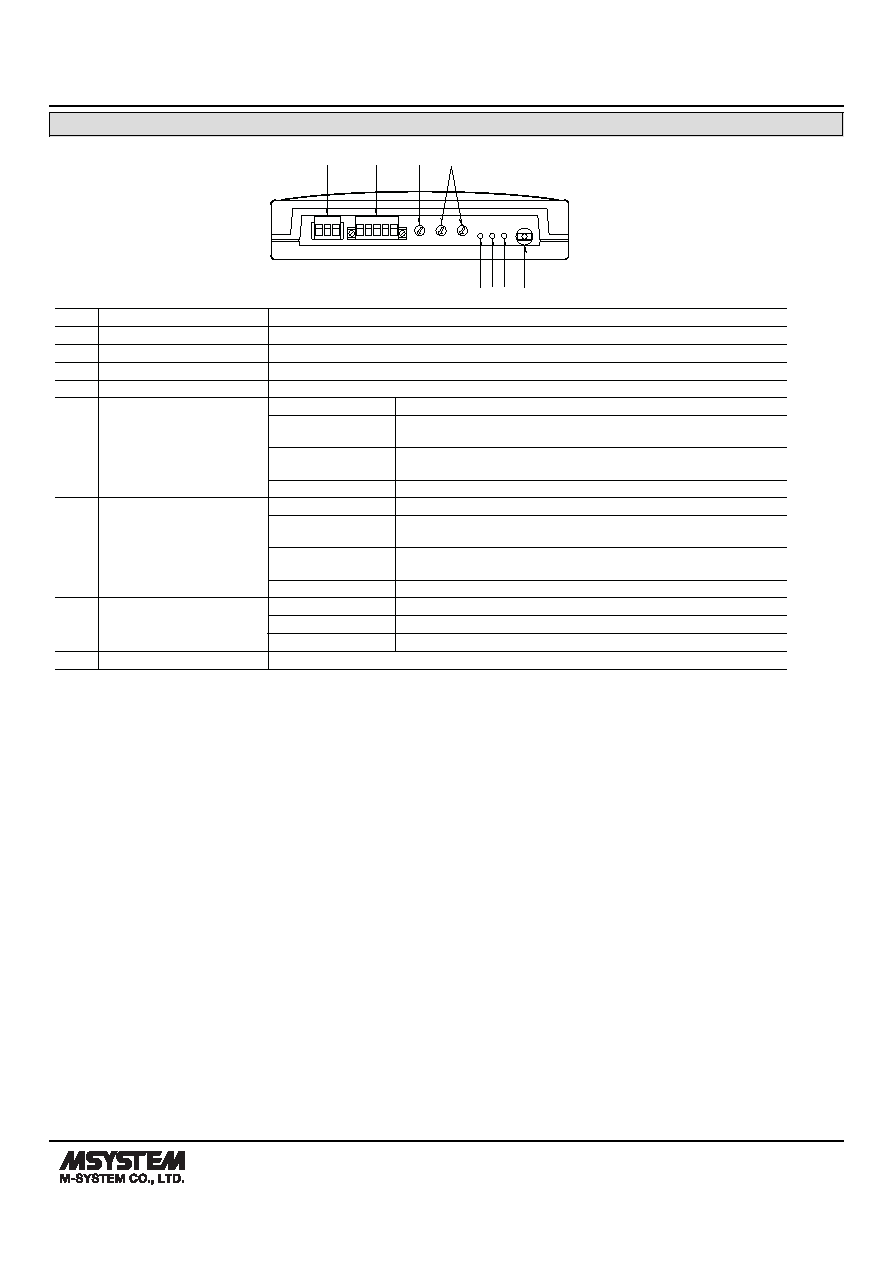

EXTERNAL VIEW
A
H
B
C
D
G
F
E
NAME
FUNCTIONS
A
Power terminal block
For power input
B
Network terminal block
For wiring to DeviceNet
C
Baud rate setting
125, 250, 500 kbps (factory set to: 125 kpbs)
D
Node address setting
Selectable within 00 – 63 (factory set to: 00)
COLOR
FUNCTIONS
E
NS (Network Status)
Red
ON:
Critical communication error
indicator LED
blinking: Minor communication error
Green
ON:
Communication established
blinking: Communication down
----
OFF:
Power Not supplied
COLOR
FUNCTIONS
F
MS (Module Status)
Red
ON:
Critical failure
indicator LED
blinking: Minor failure
Green
ON:
Normal conditions
blinking: Device Not configured
----
OFF:
Power Not supplied
COLOR
FUNCTIONS
G
Power LED
Green
ON:
Power supplied
----
OFF:
Power Not supplied
H
Configurator jack
2.5 dia. miniature jack; RS-232-C level
