MODEL: R3-NF3

R3-NF3 SPECIFICATIONS

ES-8288 Rev.2 Page 2/7

http://www.m-system.co.jp/

Operating temperature: -10 to +55°C (14 to 131°F)

Operating humidity: 30 to 90 %RH (non-condensing)

Atmosphere: No corrosive gas or heavy dust

Mounting: Installation Base (model: R3-BSx)

Weight: 200 g (0.44 lb)

PERFORMANCE

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength: 1500 V AC @ 1 minute (T-Link to

internal bus or internal power to power input to RUN contact

output to FG)

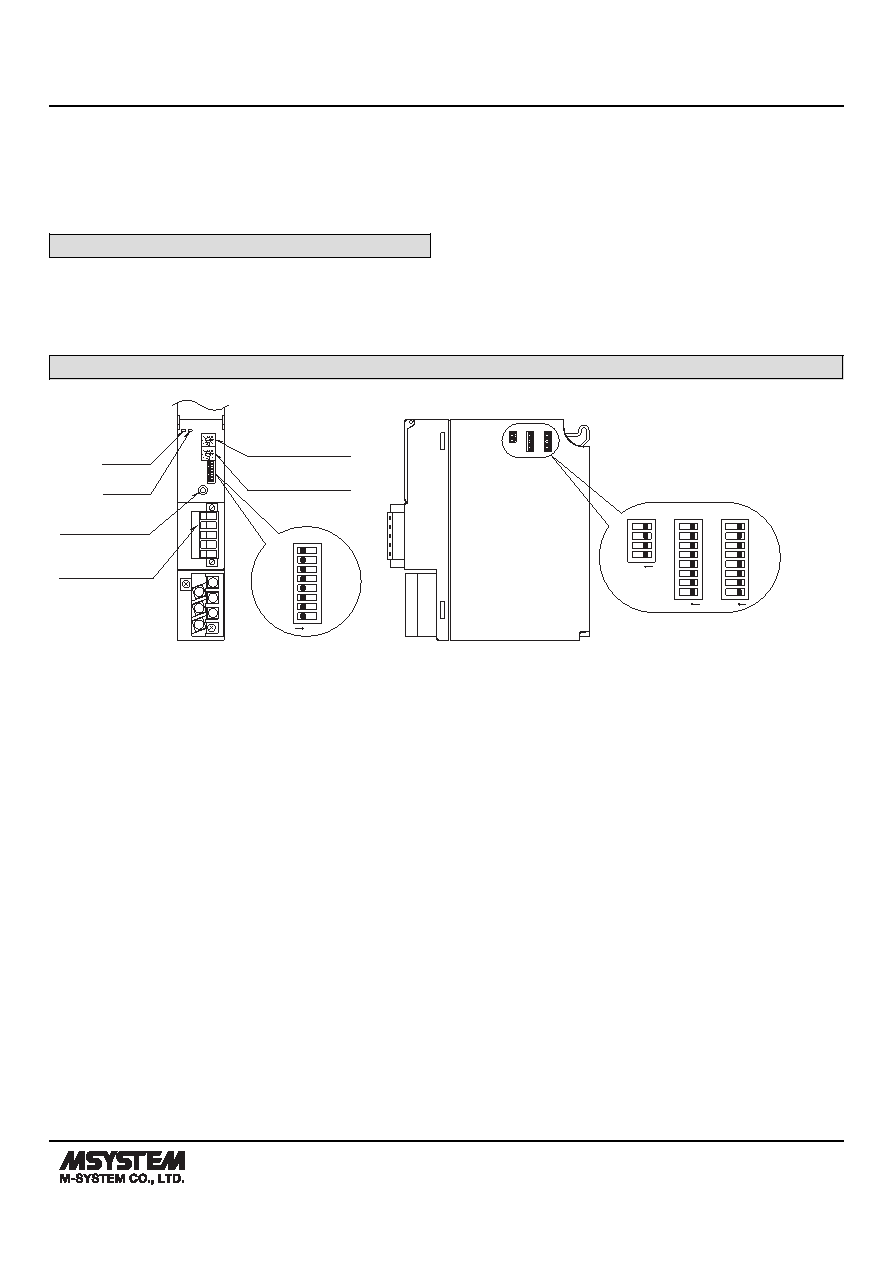

EXTERNAL VIEW

RUN LED

ERR LED

SW2

ON

8

7

6

5

4

3

2

1

SW3

SA1

SA2

ON

4

3

2

1

ON

8

7

6

5

4

3

2

1

SW1

1

2

3

4

5

6

8

7

8

7

SW6

ON

8:KS7

7:KS6

6:KS5

5:KS4

4:KS3

3:KS2

2:KS1

1:KS0

Configuration Jack

Node Address Setting

Rotary SW (MSB)

Node Address Setting

Rotary SW (LSB)

Network

DIP SW

RT+

RT–

SD

T2

T1

■ FRONT VIEW

■ SIDE VIEW

Euro Type

Connector Terminal
