HMC6505ALC5TR-R5 데이터시트(PDF) 13 Page - Analog Devices

부품명 HMC6505ALC5TR-R5
상세설명  5.5 GHz to 8.6 GHz, GaAs, MMIC, I/Q Upconverter
PDF  30 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  AD [Analog Devices]
홈페이지  http://www.analog.com
Logo AD - Analog Devices

HMC6505ALC5TR-R5 데이터시트(HTML) 13 Page - Analog Devices

Back Button HMC6505ALC5TR-R5 Datasheet HTML 9Page - Analog Devices HMC6505ALC5TR-R5 Datasheet HTML 10Page - Analog Devices HMC6505ALC5TR-R5 Datasheet HTML 11Page - Analog Devices HMC6505ALC5TR-R5 Datasheet HTML 12Page - Analog Devices HMC6505ALC5TR-R5 Datasheet HTML 13Page - Analog Devices HMC6505ALC5TR-R5 Datasheet HTML 14Page - Analog Devices HMC6505ALC5TR-R5 Datasheet HTML 15Page - Analog Devices HMC6505ALC5TR-R5 Datasheet HTML 16Page - Analog Devices HMC6505ALC5TR-R5 Datasheet HTML 17Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 13 / 30 page
background image
Data Sheet
HMC6505A
Rev. 0 | Page 13 of 30
0
2
4
6
8
10
12
14
16
18
20
5.5
6.0
6.5
7.0
7.5
8.0
8.5
9.0
RF FREQUENCY (GHz)
–40°C
+25°C
+85°C

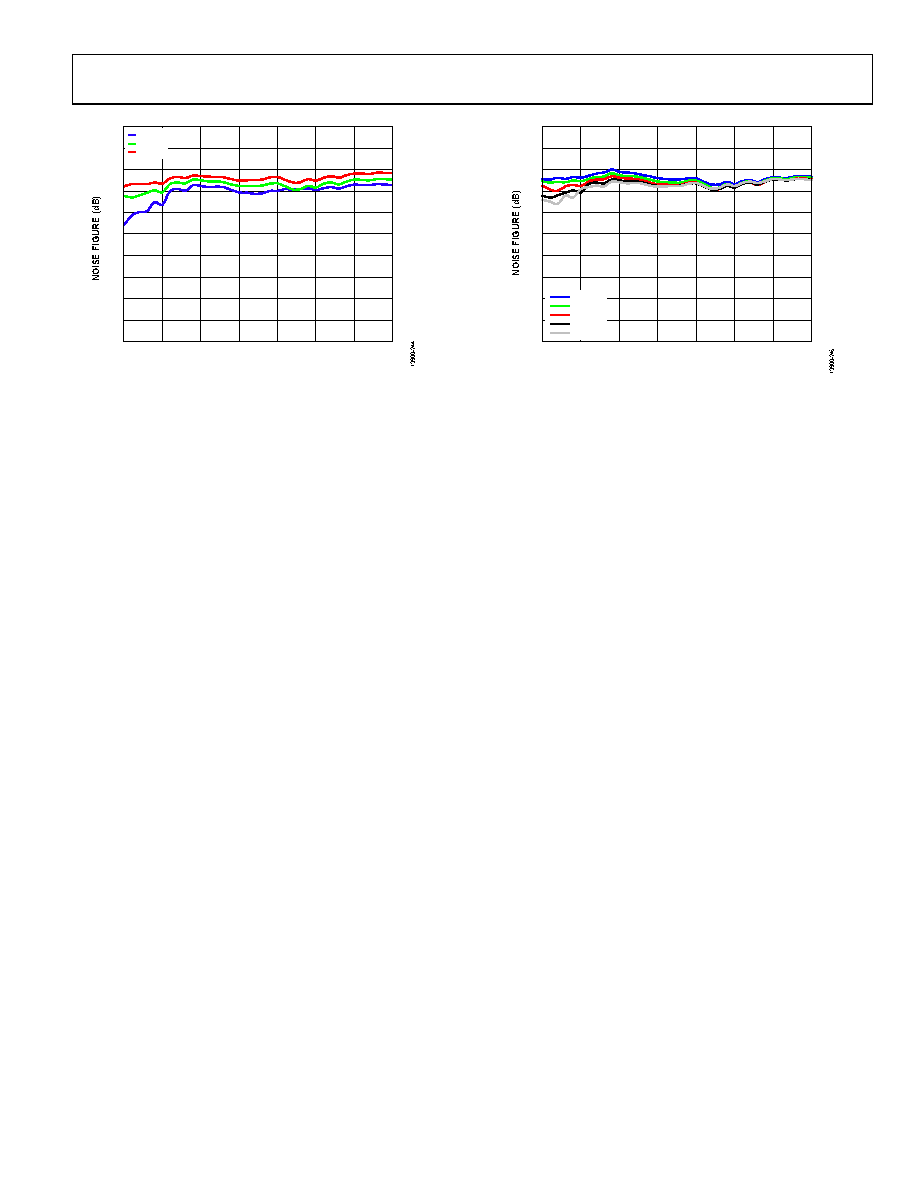

Figure 44. Noise Figure vs. RF Frequency over Temperatures,
LO Power = 4 dBm, Voltage Control = −4 V
0
2
4
6
8
10
12
14
16
18
20
5.5
6.0
6.5
7.0
7.5
8.0
8.5
9.0
RF FREQUENCY (GHz)
–2dBm
0dBm
+2dBm
+4dBm
+6dBm
Figure 45. Noise Figure vs. RF Frequency over LO Powers
TA = 25°C, Voltage Control = −4 V
