MODEL: TR3EX

http://www.m-system.co.jp/

TR3EX SPECIFICATIONS

ES-8632 Rev.0 Page 2/5

STANDARDS & APPROVALS

EU conformity:

EMC Directive

EMI EN 61000-6-4

EMS EN 61000-6-2

RoHS Directive

EN 50581

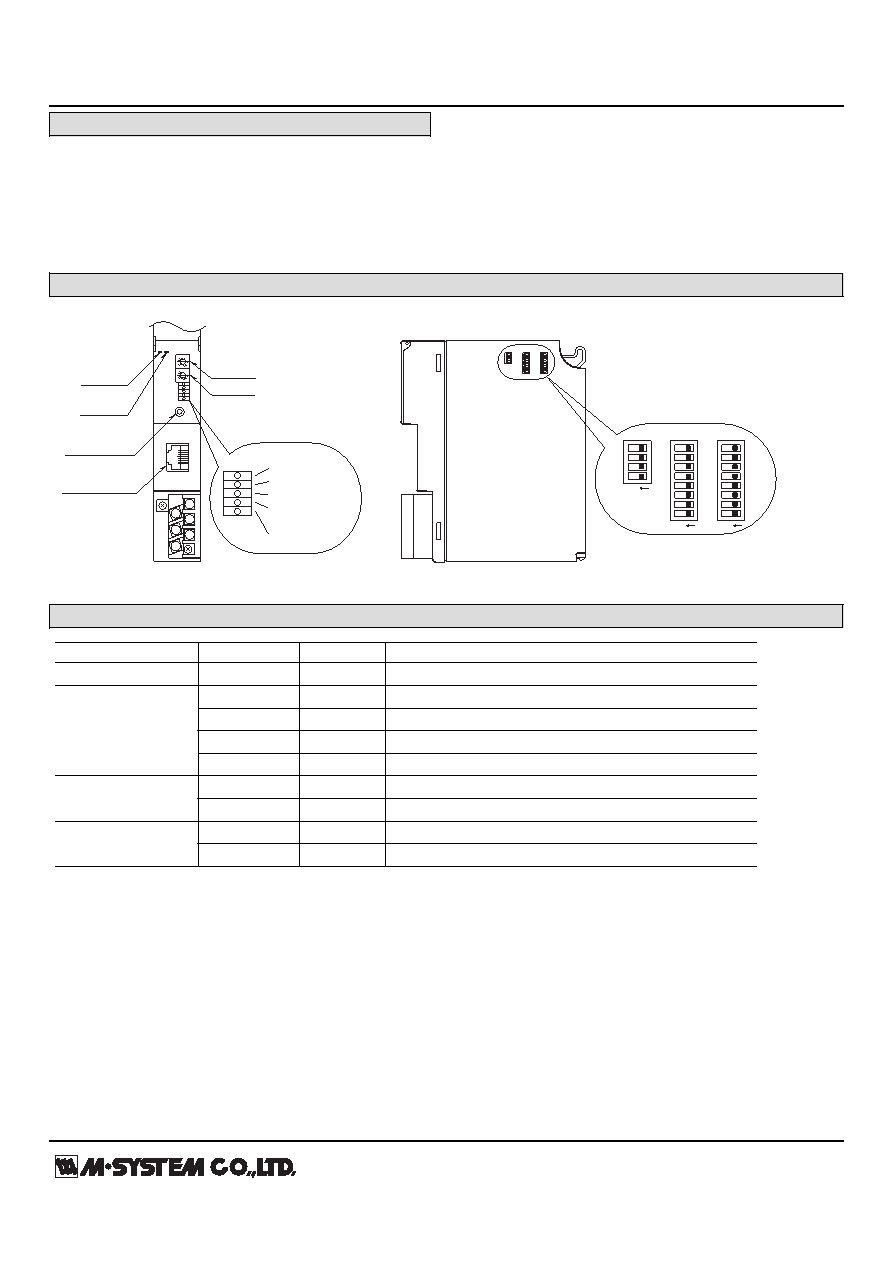

EXTERNAL VIEW

SW2

ON

8

7

6

5

4

3

2

1

SW3

ON

4

3

2

1

ON

8

7

6

5

4

3

2

1

SW1

1

2

3

4

5

6

RUN LED

ERR LED

RJ-45 Modular

Jack

Not used

Not used

Configuration

Jack

DIP SW

LINK

DPLX (Duplex)

LINK10 (10Mbps)

LINK100

(100Mbps)

COL (Collision)

■ FRONT VIEW

■ SIDE VIEW

E

D

C

B

E

D

C

B

MODBUS I/O ASSIGNMENT

ADDRESS

DATA TYPE

DATA

Coil (0X)

1 – 1024

Digital Output (discrete output)

Inputs (1X)

1 – 1024

Digital Input (discrete input)

1025 – 1040

Module Status

1041 – 1056

Error Status

1057 – 1072

Data Error Status

Input Registers (3X)

1 – 256

I

Analog Input

257 – 768

F

Analog Input

Holding Registers (4X)

1 – 256

I

Analog Output

257 – 768

F

Analog Output

I: Integer, 0 – 10000 (0 – 100%)

F: Floating (32-bit data cannot be accessed using floating addresses.)

Note: DO NOT access addresses other than mentioned above. Such access may cause problems such as inadequate opera-

tion.

turns to “1,” and the unmounted slots to “0.”

“1.”

R3-TSx, R3-RSx, R3-US4:

Input burnout

R3-DA16A:

Power input in error or disconnected

R3-YSx:

Output current error (e.g. load unconnected)

each module. The bit corresponding to such modules turns to “1.”
