MODEL: TR30
TR30 SPECIFICATIONS
ES-8631 Rev.16 Page 4/8
http://www.m-system.co.jp/
TERMINAL ASSIGNMENTS
4
5
NC
FE
6
1
2
U(+)
3
V(-)
NO.
ID
FUNCTON
1
RUN contact output
RUN contact output
2
U (+)
Power supply (24 V DC)
3
V (-)
Power supply (0 V DC)
4
RUN contact output
RUN contact output
5
NC
Not used
6
FE
Functional earth

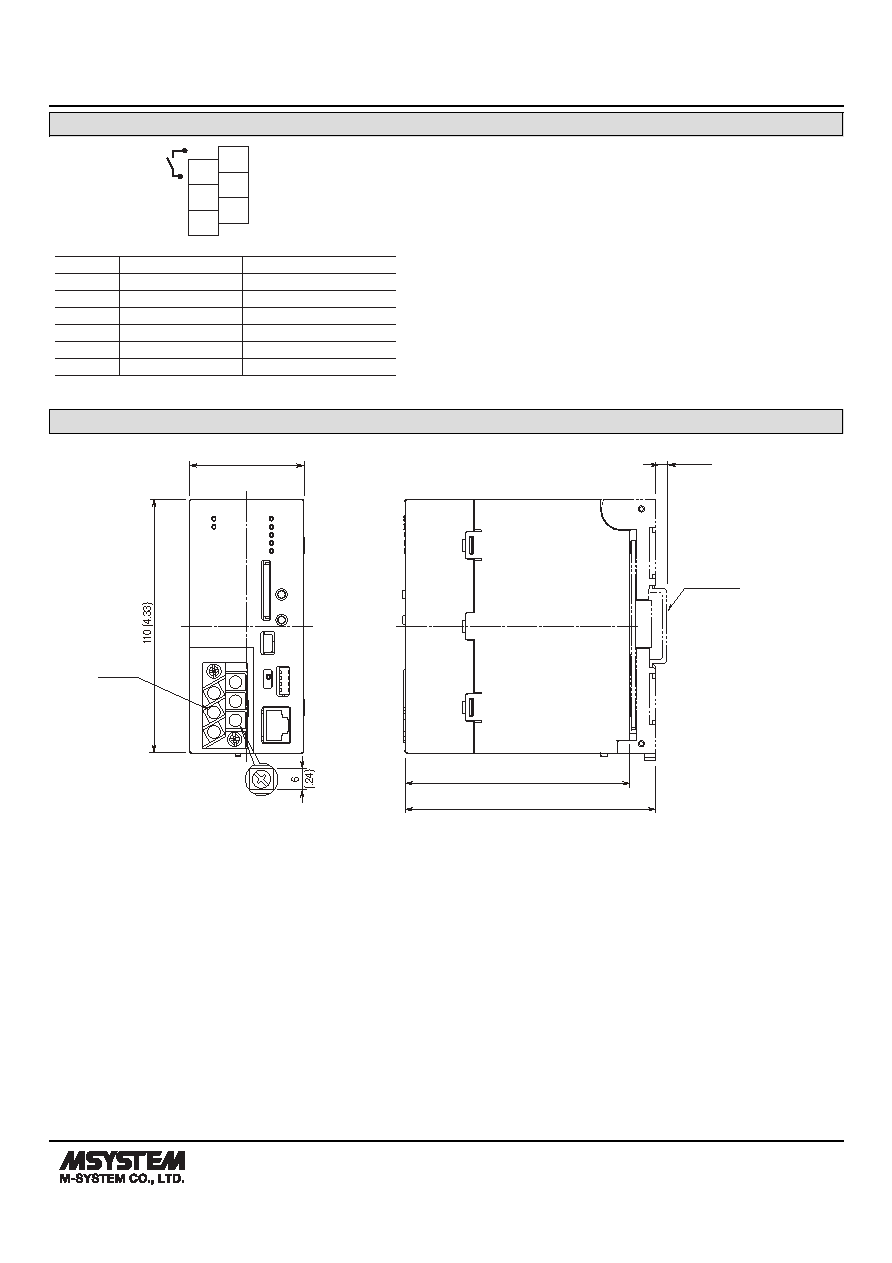

EXTERNAL DIMENSIONS unit: mm (inch)
50 (1.97)
6–M3
SCREW
1
2
3
4
5
6
DIN RAIL
35mm wide
[5 (.20)]
110 (4.33)
98 (3.86)
