Preliminary
PL611-30
Programmable Quick Turn ClockTM
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
www.phaselink.com Rev 03/03/05 Page 6

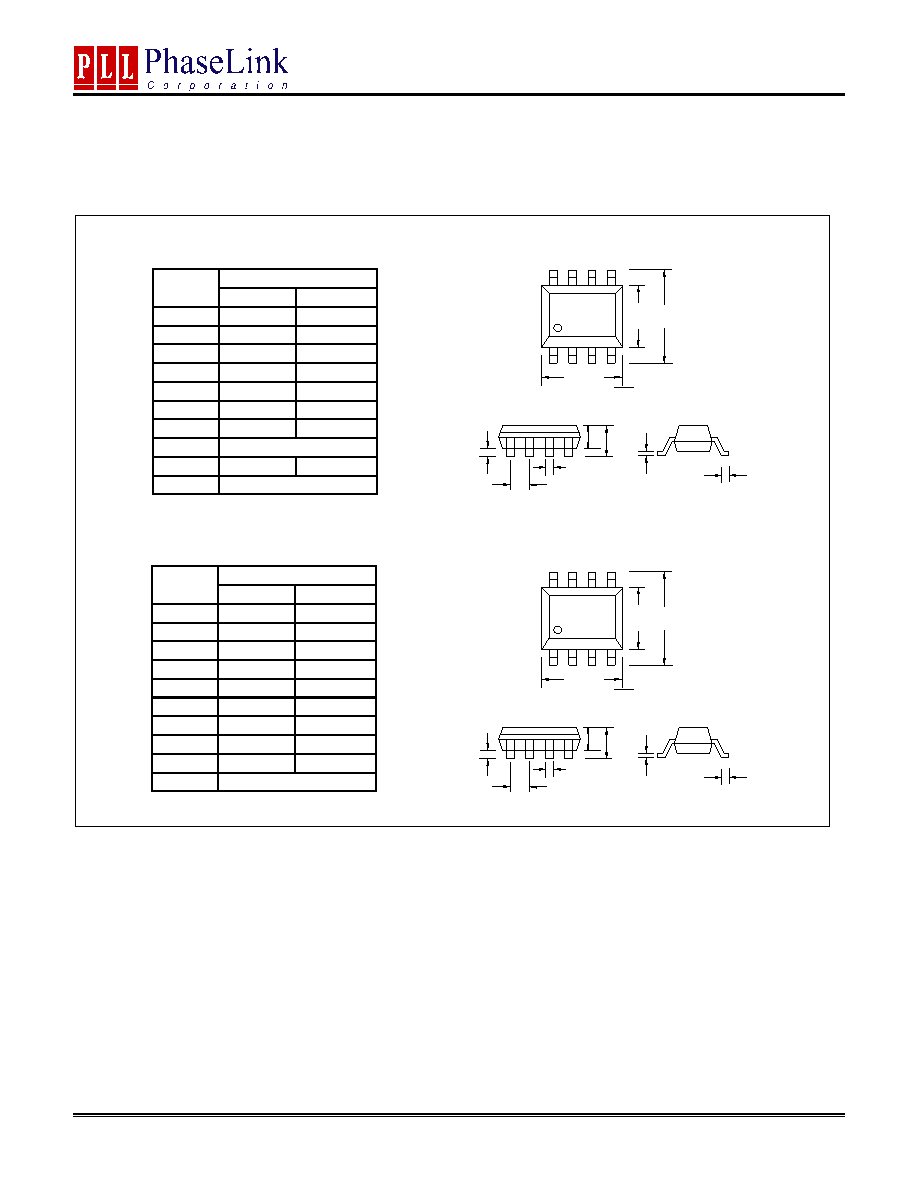

PACKAGE DRAWINGS (GREEN PACKAGE COMPLIANT)
MSOP 8L
SOP 8L
Dimension in MM
Symbol
Min.
Max.
A
---
1.10
A1
0.05
0.15
A2
0.81
0.91
B
0.25
0.40
C
0.13
0.23
D
2.90
3.10
E
2.90
3.10
H
4.90 BSC
L
0.445
0.648
e
0.65 BSC
Dimension in MM
Symbol
Min.
Max.
A
1.35
1.75
A1
0.10
0.25
A2
1.25
1.50
B
0.33
0.53
C
0.19
0.27
D
4.80
5.00
E
3.80
4.00
H
5.80
6.20
L
0.40
0.89
e
1.27 BSC
C
L
A2
E
H
D
A1
e
b
A
C
L
A2
E
H
D
A1
e
b
A
