MODEL: WL40W1F-DS2

WL40W1F SPECIFICATIONS

ES-9084 Rev.0 Page 7/7

http://www.m-system.co.jp/

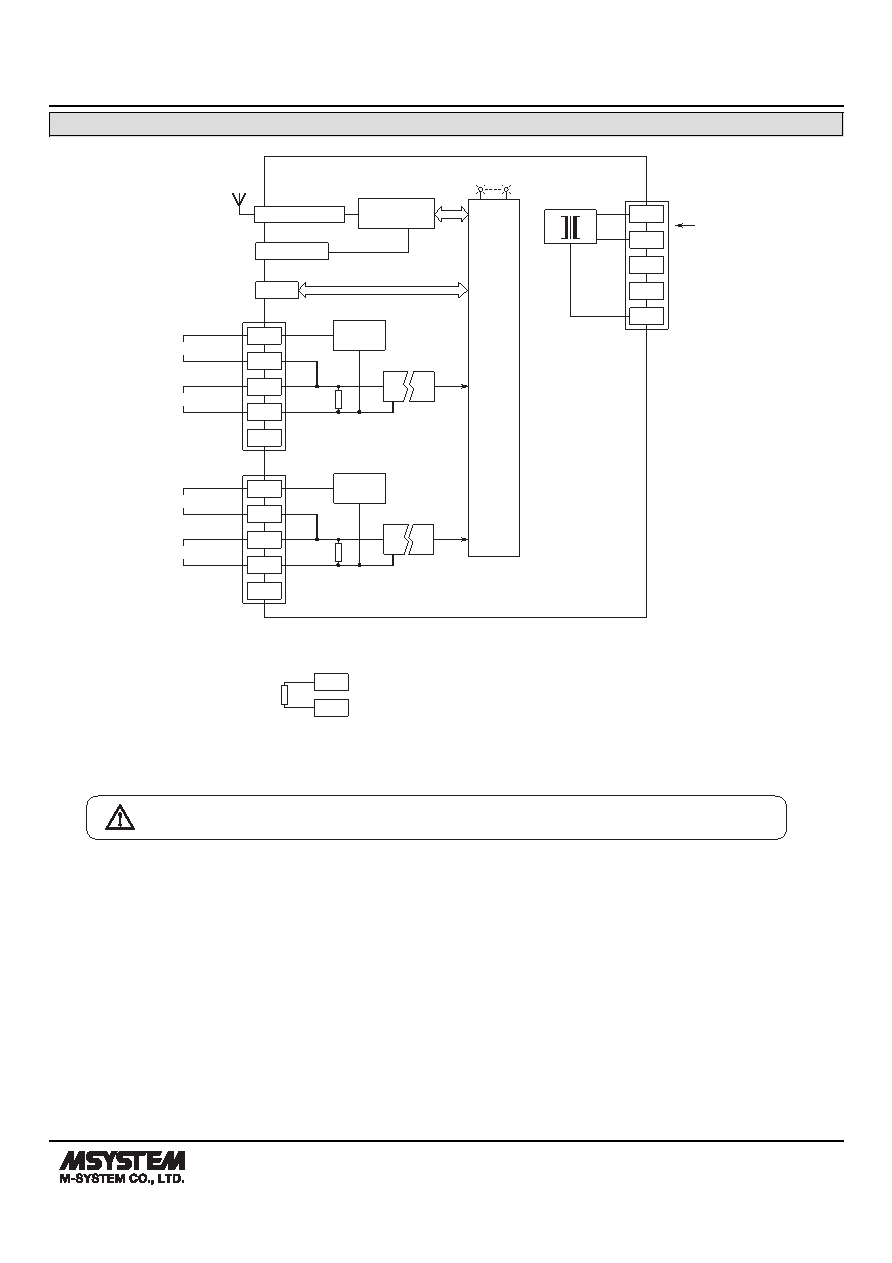

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

Control

Circuit

AI1B

0V1

NC

24V1

AI1A

24Vn

AInA

AI2B

0V2

NC

24V2

AI2A

5 kΩ (0.5 Ｗ)

250Ω

■

 

250Ω

NC

NC

FE1

24V

0V

Antenna Connector

USB Connector

Jack

Maintenance Connector

Configuration Jack

Power Input

Two-way

Wireless Circuit

Input Circuit

Input Circuit

2-WIRE TRANSMITTER

2-WIRE TRANSMITTER

INPUT (CURRENT INPUT)

INPUT (CURRENT INPUT)

INPUT 1

INPUT 2

LED

HANDLING OF THE UNUSED INPUT

Connect 5 kΩ (0.5 W) terminating resistor to the input terminal which is not used, as shown below.

If the above step is not performed, input becomes -5% or less, and PLC and such show data error.

However, using PC configuration software (model: W920FCFG) enables the setting of the unused

input without the above step.

Excitation

Supply

Excitation

Supply

Specifications are subject to change without notice.
