RESET TIMING OPTIONS

OPTION 1

END OF

PACKET

OPTION 2

END OF

PACKET

OPTION 3

END OF

PACKET

RESET PULSE

0 BYTES TO 8 BYTES

0 BYTES TO 8 BYTES

RESET PULSE

(2 BYTES)

200µs BETWEEN BURSTS

200µs BETWEEN BURSTS

RESET PULSE

(2 BYTES)

GUARD TIME (4 BYTES)

THIS ASSUMES NO NOISE IS PRESENT

ON THE INPUTS TO THE ADN2855

THIS ASSUMES NO NOISE IS PRESENT AT THE INPUTS TO THE ADN2855 BETWEEN BURSTS.

IF THIS IS THE CASE, THE RESET PULSE MUST BEASSERTED UNTIL THE TIME THAT THE

INPUT DATA TO THE ADN2855 BECOMES VALID, IDEALLY JUST PRIOR TO THE START OF THE

PREAMBLE. THERE IS NO REQUIREMENT THAT FOLLOWING THE DEASSERTION OF THE

RESET SIGNAL THE ADN2855 MUST SEE AT LEAST 13 BITS OF THE PREAMBLE.

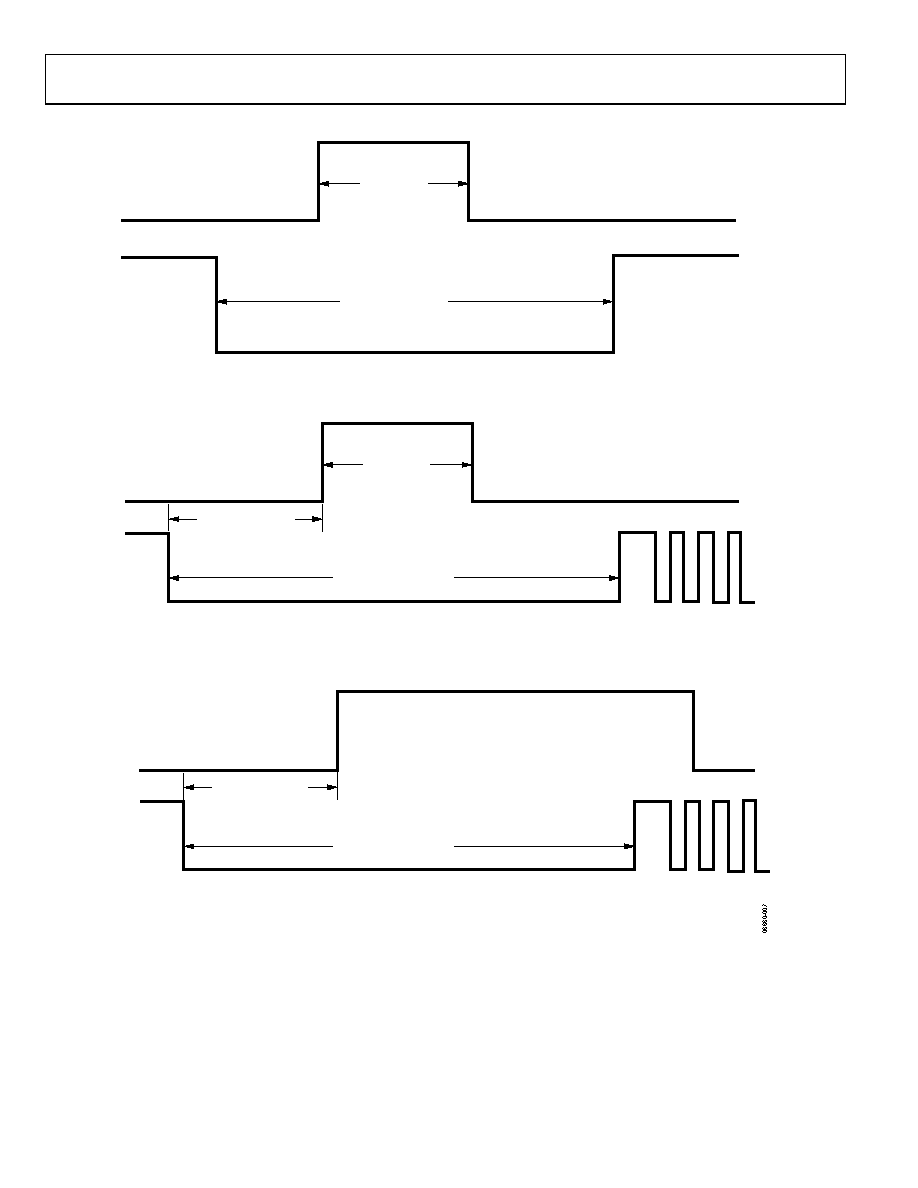

Figure 8. Reset Timing Options
