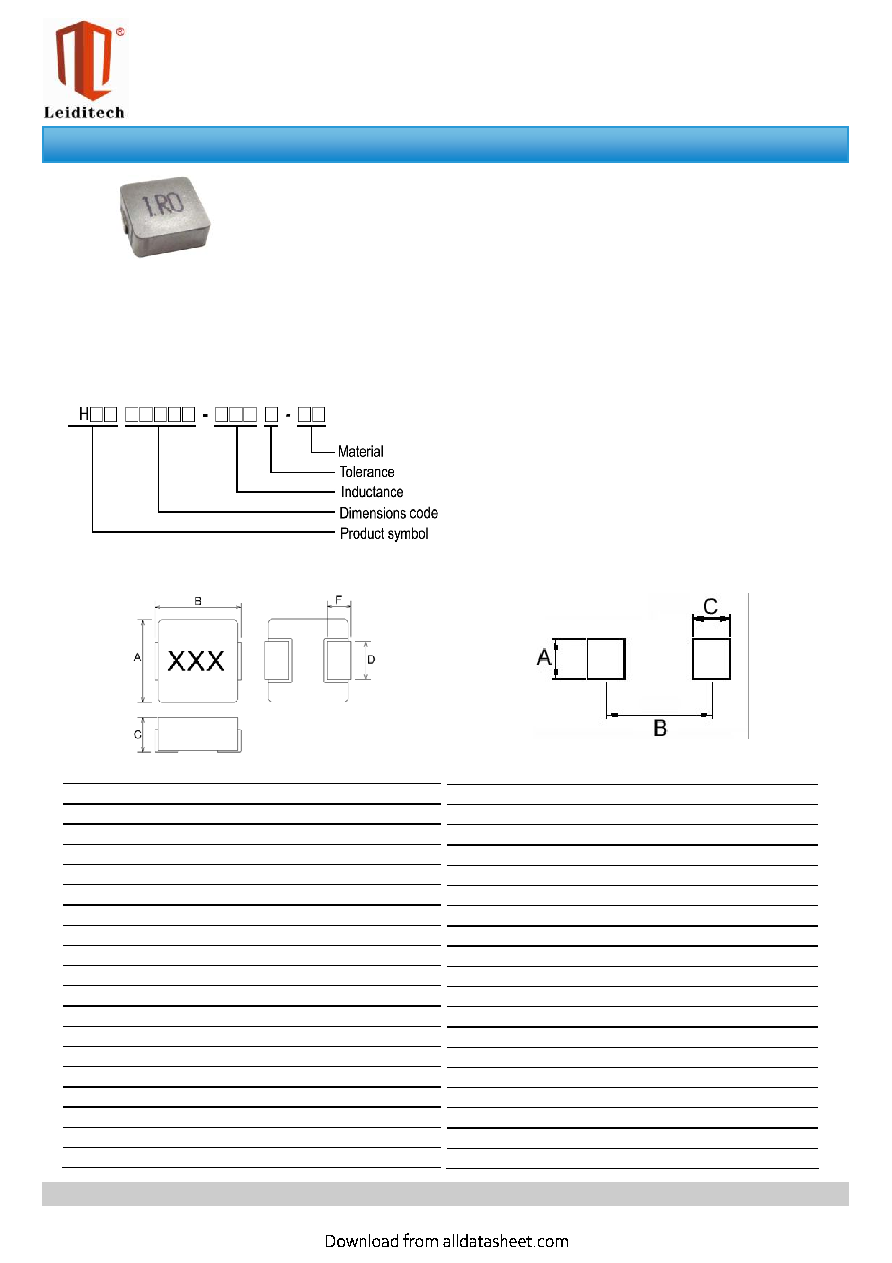

1 / 6 page

LHCC series is designed for low profile type with low RDC and ultra

large current. Its molded magnetic shielded type is suitable for

high-density mounting and ultra low buzz noise. Soldering conditions

can be easily confirmed when mounting onto the board. This series

also provides customers with embossed carrier type packaging for

automatic mounting machine.

Features

Applications

 RoHS, Halogen Free and REACH Compliance

 High rated current

 Ultra low buzz noise

 Laptops and PCs

 Switchs and servers

 Base stations

 DC/DC converters

Product Identification

Shape and Dimensions

Recommended Pattern

Dimensions in mm

TYPE

A

B Max

C Max

D

F

04012

4.1±0.2

4.6±0.2

1.2

1.5±0.3

1.0±0.5

04015

4.1±0.2

4.6±0.2

1.5

1.5±0.3

1.0±0.5

04020

4.1±0.2

4.6±0.2

2.0

1.5±0.3

1.0±0.5

05012

5.4±0.35

5.7±0.2

1.2

2.0±0.3

1.5±0.3

05015

5.4±0.35

5.7±0.2

1.5

2.0±0.3

1.5±0.3

05018

5.4±0.35

5.7±0.2

1.8

2.0±0.3

1.5±0.3

05020

5.4±0.35

5.7±0.2

1.8±0.2

2.0±0.3

1.5±0.3

05030

5.4±0.35

5.7±0.2

3.0

2.0±0.3

1.5±0.3

06012

6.6±0.2

7.3

1.2

2.9

1.6±0.5

06015

6.6±0.2

7.3

1.3±0.2

2.9

1.6±0.5

06018

6.6±0.2

7.3

1.6±0.2

2.9

1.6±0.5

06024

6.6±0.2

7.3

2.4

2.9

1.6±0.5

06030

6.6±0.2

7.3

3.0

2.9

1.6±0.5

06050

6.6±0.2

7.3

5.0

2.9

1.6±0.5

10030

10.1±0.3

11.6

3.0

2.5±0.5

10040

10.1±0.3

11.6

4.0

3.0

2.5±0.5

12050

12.6±0.2

13.8

5.0

3.7

2.7±0.7

12060

12.6±0.2

13.8

6.0

3.7

2.7±0.7

Dimensions in mm

TYPE

A

B

C

04012

2.5

3.7

1.5

04015

2.5

3.7

1.5

04020

2.5

3.7

1.5

05012

2.5

4.1

1.9

05015

2.5

4.1

1.9

05018

2.5

4.1

1.9

05020

2.5

4.1

1.9

05030

2.5

4.1

1.9

06012

3.5

6.05

2.35

06015

3.5

6.05

2.35

06018

3.5

6.05

2.35

06024

3.5

6.05

2.35

06030

3.5

6.05

2.35

06050

3.5

6.05

2.35

10030

4.0

9.5

3.5

10040

4.0

9.5

3.5

12050

5.0

10.5

4.0

12060

5.5

10.5

4.0

Moiding power lnducto rs

LHCC Series

L

Rev :

www.leiditech.com

01.06.2018

1/6
