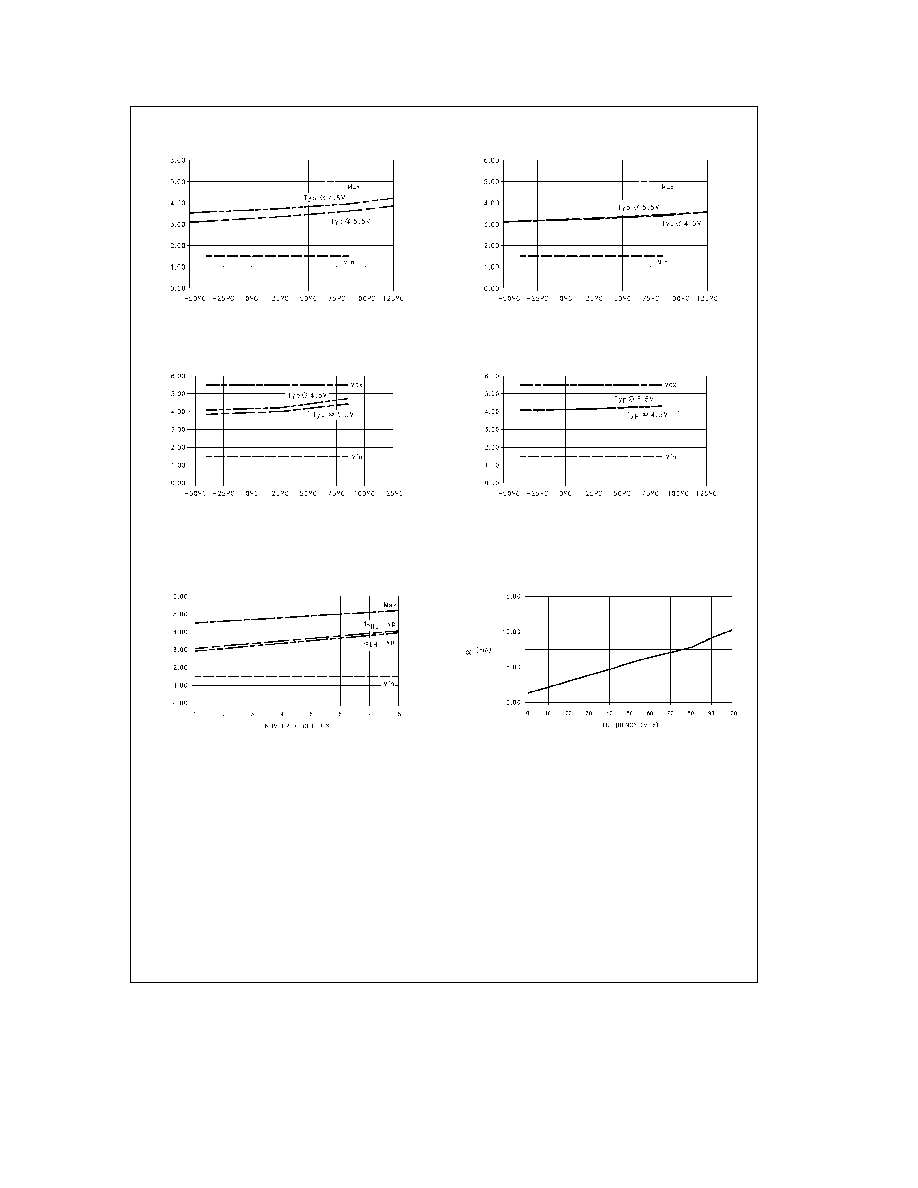

tPLH vs Temperature (TA)

CL e 50 pF 1 Output Switching

LE to Output

TLF11547 – 35

tPHL vs Temperature (TA)

CL e 50 pF 1 Output Switching

LE to Output

TLF11547 – 36

tPLH vs Temperature (TA)

CL e 50 pF 8 Outputs Switching

LE to Output

TLF11547 – 37

tPHL vs Temperature (TA)

CL e 50 pF 8 Outputs Switching

LE to Output

TLF11547 – 38

tPLH and tPHL vs Number Outputs Switching

CL e 50 pF TA e 25 C VCC e 50V

Outputs In Phase Data to Output

TLF11547 – 33

Typical ICC vs Output Switching Frequency

CL e 0 pF VCC e VIH e 55V LE e GND

1 Output Switching at 50% Duty Cycle

Data to Output Transparent Mode with

Unused Data Inputs e VIH

TLF11547 – 34

Dashed lines represent design characteristics for specified guarantees refer to AC Characteristics Tables
