ADN8835ACPZ-R7 데이터시트(PDF) 3 Page - Analog Devices

부품명 ADN8835ACPZ-R7
상세설명  Ultracompact, 3 A Thermoelectric Cooler (TEC) Controller
PDF  27 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  AD [Analog Devices]
홈페이지  http://www.analog.com
Logo AD - Analog Devices

ADN8835ACPZ-R7 데이터시트(HTML) 3 Page - Analog Devices

  ADN8835ACPZ-R7 Datasheet HTML 1Page - Analog Devices ADN8835ACPZ-R7 Datasheet HTML 2Page - Analog Devices ADN8835ACPZ-R7 Datasheet HTML 3Page - Analog Devices ADN8835ACPZ-R7 Datasheet HTML 4Page - Analog Devices ADN8835ACPZ-R7 Datasheet HTML 5Page - Analog Devices ADN8835ACPZ-R7 Datasheet HTML 6Page - Analog Devices ADN8835ACPZ-R7 Datasheet HTML 7Page - Analog Devices ADN8835ACPZ-R7 Datasheet HTML 8Page - Analog Devices ADN8835ACPZ-R7 Datasheet HTML 9Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 3 / 27 page
background image
Data Sheet
ADN8835
Rev. B | Page 3 of 27

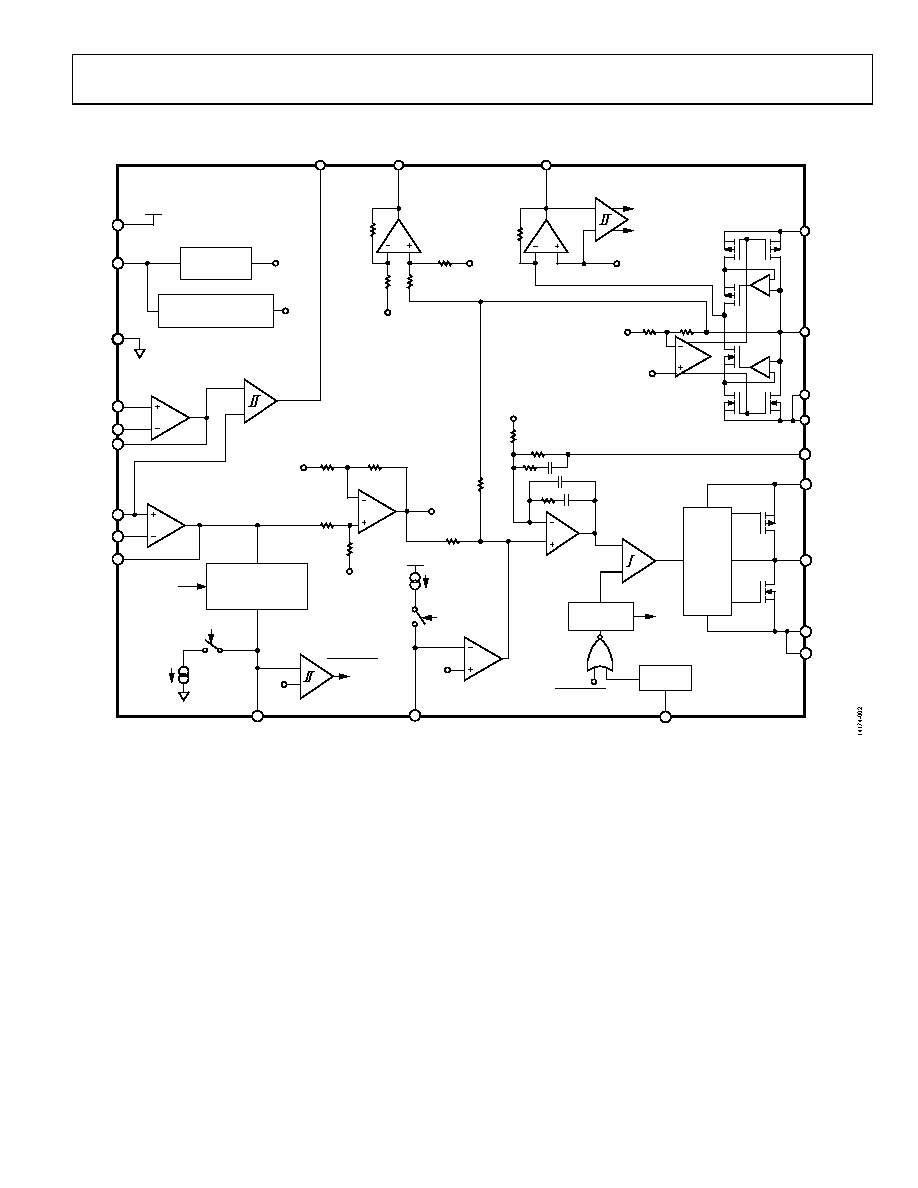

DETAILED FUNCTIONAL BLOCK DIAGRAM
Figure 2. Detailed Functional Block Diagram of the ADN8835
VB
LINEAR
AMPLIFIER
VC
20kΩ
ITEC
1.25V
1.25V
1.25V
5kΩ
VTEC
20kΩ
20kΩ
5kΩ
SFB
IN2P
IN2N
OUT2
IN1P
IN1N
OUT1
1.25V
VLIM/SD
VC
VB = 2.5V AT VDD > 4.0V
VB = 1.5V AT VDD < 4.0V
BAND GAP
VOLTAGE
REFERENCE
VB
VREF
2.5V
VDD
AGND
TEC VOLTAGE
LIMIT AND INTERNAL
SOFT START
COMPENSATION
AMPLIFIER
TEMPERATURE
ERROR
AMPLIFIER
VDD
ADN8835
VDD
40µA
10µA
HEATING
TEC CURRENT SENSE
LDR
TEC
VOLTAGE
SENSE
SW
PGNDS
PVINS
PWM POWER
STAGE
PWM
MOSFET
DRIVER
EN/SY
SFB
20kΩ
20kΩ
20kΩ
20kΩ
100kΩ
VB
VB
400kΩ
80kΩ
PWM
MODULATOR
PWM
ERROR
AMPLIFIER
ILIM
COOLING
ITEC
20k
Ω
TEC
CURRENT
LIMIT
PGNDS
LDR
PGNDL
PVINL
PGNDL
HEATING
COOLING
CLK
SHUTDOWN
0.07V
OSCILLATOR
CLK
SHUTDOWN
DEGLITCH
VHIGH ≥ 2.1V
VLOW ≤ 0.8V
2kΩ
80kΩ
TEC DRIVER
LINEAR POWER
STAGE
+
–
+
–
TMPGD
