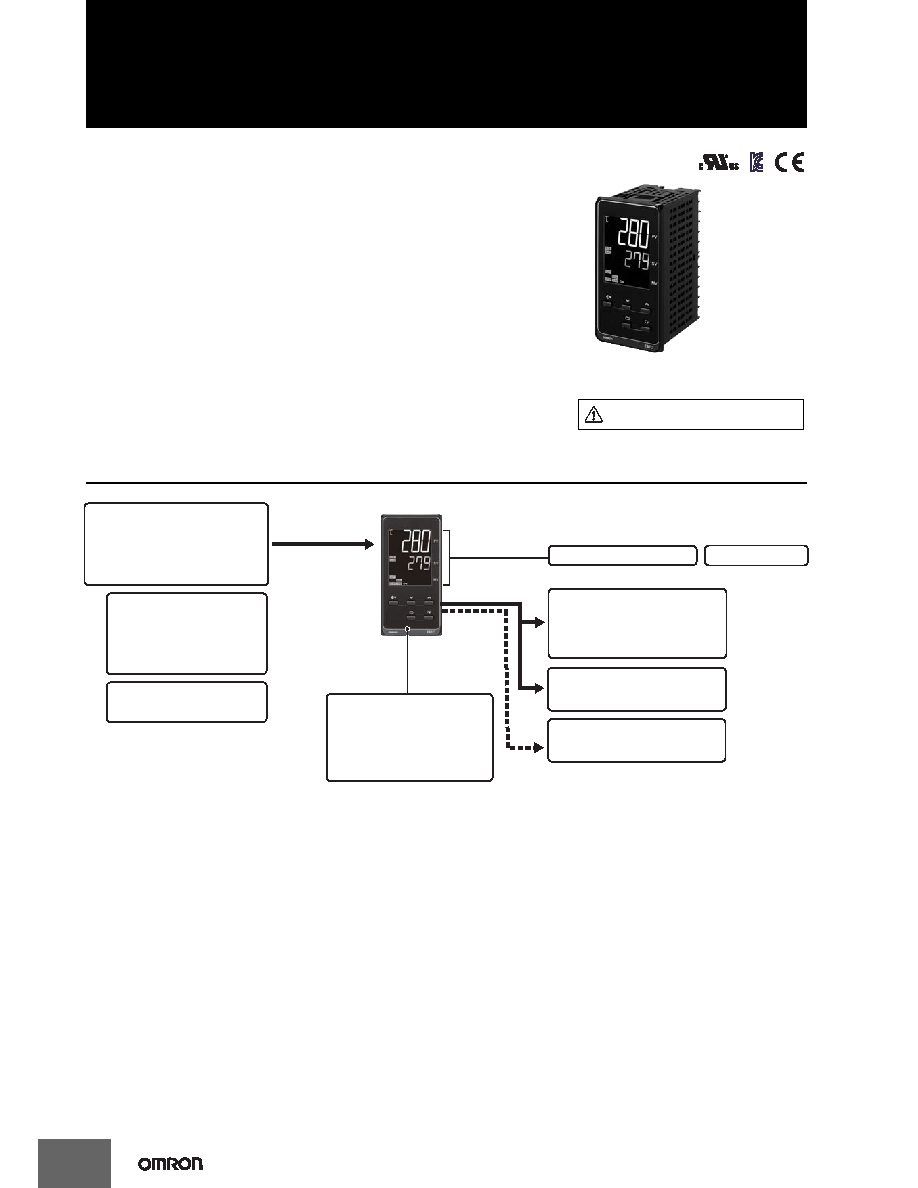

Digital Temperature Controller (Simple Type)

E5EC-800

(48

× 96 mm)

Large White PV Display That’s Easier to Read.

Easy to Use, from Model Selection to

Setup and Operation.

A Complete Range of I/O Capacities,

Functions, and Performance.

Handles More Applications.

• A white LCD PV display with a height of approx. 18 mm

improves visibility.

• High-speed sampling at 50 ms.

• Models with up to 2 auxiliary outputs.

• Short body with depth of only 60 mm.

Main I/O Functions

× 96 mm

E5EC

Refer to Safety Precautions on page 29.

E5EC

4-digit displays

Sensor Input

• Thermocouple

• Pt

• Universal analog

current/voltage input

Indication Accuracy

• Thermocouple input:

±0.3% of PV

• Pt input: ±0.2% of PV

• Analog input: ±0.2% of FS

Sampling Period

• 50 ms

Control Output 1

• Relay output

• Voltage output (for driving SSR)

• Current output

Control Output 2

• Relay output

Auxiliary Outputs

• 2

• PF (shift) Key

• Temperature status display

• Independent heating and

cooling PID control

• Changed parameter display

• Display brightness setting

Dual displays: PV/SV
