709

800-262-IDEC (4332) • USA & Canada

ø22mm - TW Series

Switches & Pilot Devices

1904032203

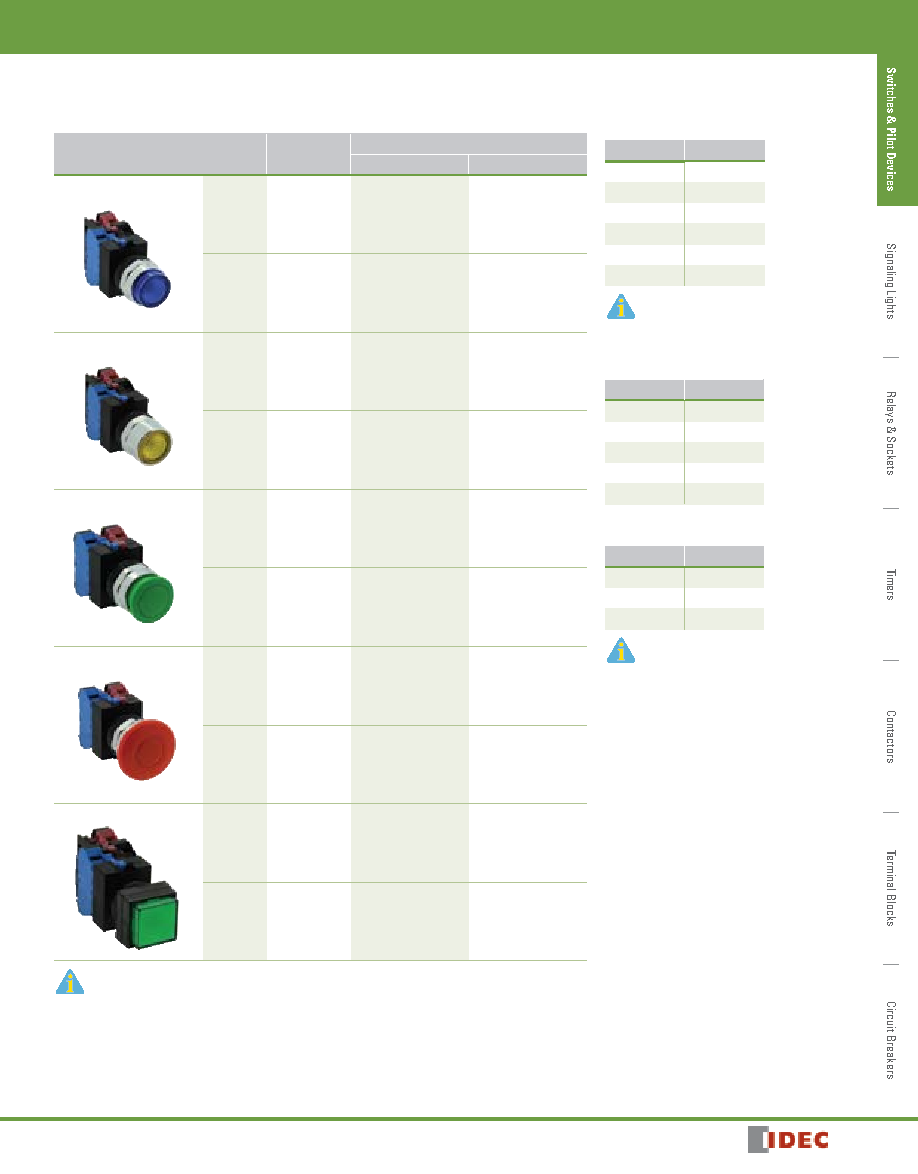

Illuminated Pushbuttons (Assembled)

Illuminated Pushbuttons

Style

Contacts

Part Number

Momentary

Maintained

Extended Lens

Transformer

1NO-1NC

2NO

2NC

ALW2 m 11D-k

ALW2 m 20D-k

ALW2 m 02D-k

AOLW2 m 11D-k

AOLW2 m 20D-k

AOLW2 m 02D-k

Full Voltage

1NO-1NC

2NO

2NC

ALW29911D-k-l

ALW29920D-k-l

ALW29902D-k-l

AOLW29911D-k-l

AOLW29920D-k-l

AOLW29902D-k-l

Extended Lens with Full Shroud

Transformer

1NO-1NC

2NO

2NC

ALFW2 m 11D-k

ALFW2 m 20D-k

ALFW2 m 02D-k

AOLFW2 m 11D-k

AOLFW2 m 20D-k

AOLFW2 m 02D-k

Full Voltage

1NO-1NC

2NO

2NC

ALFW29911D-k-l

ALFW29920D-k-l

ALFW29902D-k-l

AOLFW29911D-k-l

AOLFW29920D-k-l

AOLFW29902D-k-l

ø29mm Mushroom Button

Transformer

1NO-1NC

2NO

2NC

ALW3 m 11D-k

ALW3 m 20D-k

ALW3 m 02D-k

AOLW3 m11D-k

AOLW3 m20D-k

AOLW3 m 02D-k

Full Voltage

1NO-1NC

2NO

2NC

ALW39911D-k-l

ALW39920D-k-l

ALW39902D-k-l

AOLW39911D-k-l

AOLW39920D-k-l

AOLW39902D-k-l

ø40mm Mushroom Button

Transformer

1NO-1NC

2NO

2NC

ALW4 m 11D-k

ALW4 m 20D-k

ALW4 m 02D-k

AOLW4 m11D-k

AOLW4 m20D-k

AOLW4 m 02D-k

Full Voltage

1NO-1NC

2NO

2NC

ALW49911D-k-l

ALW49920D-k-l

ALW49902D-k-l

AOLW49911D-k-l

AOLW49920D-k-l

AOLW49902D-k-l

Square Extended

Transformer

1NO-1NC

2NO

2NC

ALQW2B m11D-k

ALQW2B m20D-k

ALQW2B m02D-k

AOLQW2B m11D-k

AOLQW2B m20D-k

AOLQW2B m02D-k

Full Voltage

1NO-1NC

2NO

2NC

ALQW2B9911D-k-l

ALQW2B9920D-k-l

ALQW2B9902D-k-l

AOLQW2B9911D-k-l

AOLQW2B9920D-k-l

AOLQW2B9902D-k-l

1. In place of k, specify the Lens Color Code (see table). Mushroom lenses not available in yellow.

2. In place of l, specify the Full Voltage Code (lamp voltage) (see table).

3. In place of m, specify the Transformer Voltage Code (see table).

4. For sub-assembly part numbers, see next page.

5. For accessories, see page 728.

6. For dimensions, see page 730.

7. Light is independent of switch position.

8. Yellow pushbutton comes with white LED.

LED/Lens Color Codes

Color

Code

Amber

Green

Red

Blue

White

Yellow

1. Mushroom lenses not

available in yellow.

2. Yellow pushbutton comes

with white LED.

Full Voltage Codes

Voltage

Code

6V AC/DC

12V AC/DC

12V

24V AC/DC

24V

120V AC

120V

240V AC

240V

Transformer Voltage Codes

Voltage

Code

120VAC

126

240VAC

246

480VAC

486

Transformers step down to 6V

(use 6V LED).
