19.20±0.50

0.76±0.02

8.5

0.33

H8.0

[0.31]

8.5

0.33

19.2

0.76

5.5

0.22

8.0

0.31

CONNECTOR A

1/4 - 36UNS-2B

THREADS

CONNECTOR B

1/4 - 36UNS-2A

THREADS

NOTES: (UNLESS OTHERWISE SPECIFIED)

1. ALL DIMENSIONS ARE IN mm [INCHES].

2. DIMENSIONS APPLY AFTER FINISHING.

3. MANUFACTURE TO BE COMPLIANT WITH EU RoHS DIRECTIVE,

USE MATERIALS THAT DO NOT CONTAIN REACH SUBSTANCES

OF VERY HIGH CONCERN >1000ppm, AND USE DRC

CONFLICT-FREE SOURCED MATERIALS.

4. SAFETY BREAK ALL SHARP CORNERS AND EDGES 0.5 MAXIMUM.

5 SEE TABLE I FOR ELECTRICAL SPECIFICATIONS.

6 SEE TABLE II FOR ENVIRONMENTAL SPECIFICATIONS.

7 SEE TABLE III FOR MECHANICAL SPECIFICATIONS.

REVISIONS

REV

DESCRIPTION

DATE

APPV

A INITIAL RELEASE OF LINX INTERNAL DRAWING

9-OCT-17

CLL

B ADDED ADDITIONAL SPECIFICATIONS TABLES

17/JAN/19

SH

19.20±0.50

0.76±0.02

8.5

0.33

H8.0

[0.31]

SHEET 1 OF 2

LDCFDAL_C

SCALE: 4:1

A

TITLE:

SIZE DWG. NO.

REV

DO NOT SCALE DRAWING

ADP-RPSM-SMAF-G

B

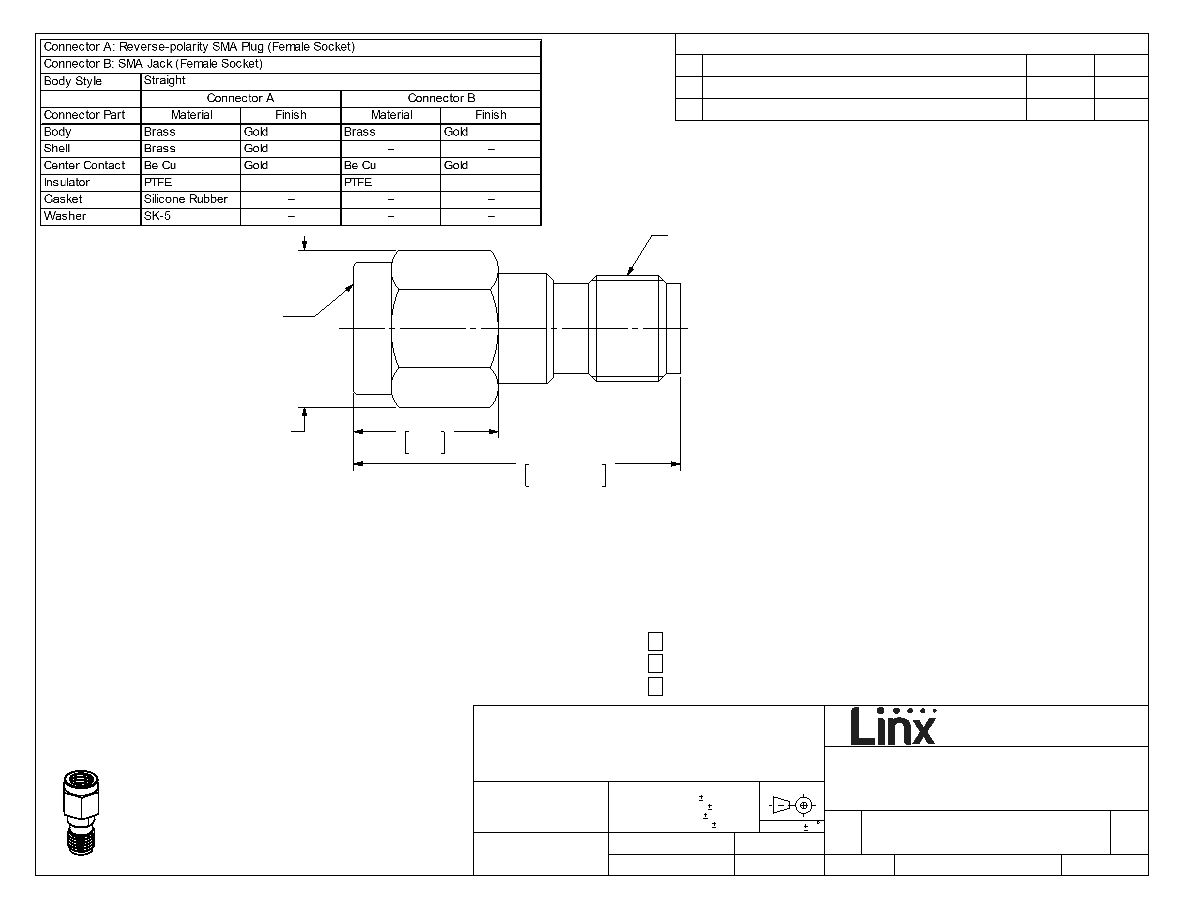

ADAPTER, RP-SMA PLUG (FEMALE SOCKET)

TO SMA JACK (FEMALE SOCKET), GOLD

159 ORT LANE

MERLIN, OR 97532

ANGLES: 1

DRAWN: M. SCHULTE

ENGR: D. VARATHARAJAN

DT: 30/OCT/18

DT: 17/JAN/19

MATERIAL:

FINISH:

PROJECTION:

THAT IS THE SOLE PROPERTY OF LINX TECHNOLOGIES, AND SHALL BE

TREATED AS SUCH. NO DISCLOSURE OR REPRODUCTION OF THIS

DOCUMENT IS PERMITTED, IN WHOLE OR IN PART, WITHOUT THE

EXPRESS WRITTEN PERMISSION OF LINX TECHNOLOGIES OR ITS

DESIGNATED AGENTS.

TOLERANCES:

0.50 [.020]-5.00 [.200]= 0.20 [.008]

5.00 [.200]-30.00 [1.200]= 0.40 [.016]

30.0 [1.20]-120.0 [4.75]= 0.60 [0.24]

120.0 [4.75]-315.0 [12.40]= 1.0 [.040]
