ANT-2.4-LCW-ccc Data Sheet

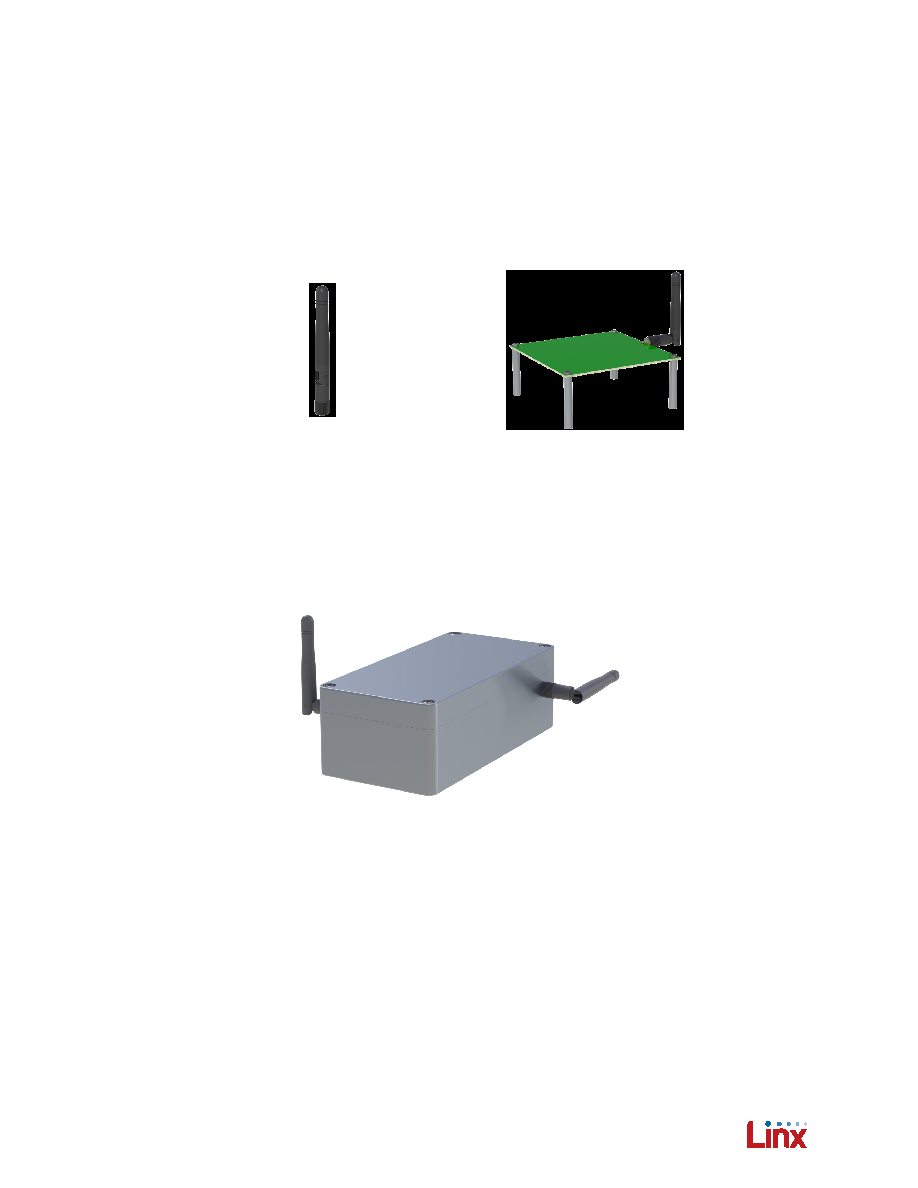

Straight, without ground

Bent 90°, on edge of ground

Dipole antennas, ground planes and additional orientations

Since it is not always possible to provide an adequate ground plane, dipole antennas like the LCW are

designed with a built-in ground plane, so an external ground plane is not required for the antenna to radiate

properly.

Linx knows how our customers most frequently use our antennas in theirs designs, typically mounted to

enclosures, conductive or non-conductive, so we tested our LCW antenna in 2 different configurations:

straight, without ground (free space), and edge of a ground plane bent at 90°.

Linx tested the LCW dipole antenna to ensure excellent radiation behavior and minimize the risk to the

customer when implementing a new design, regardless of complexity.

Additionally, there are many other configurations with which our LCW antenna will have similar performance

to the Bent 90°, on edge of ground, with minimal difference, as shown below.
