Data Sheet
ADRF5345
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 8 of 11
INPUT THIRD-ORDER INTERCEPT
VDD = 5 V, VCTRL = 0 V or 3.3 V, and TCASE = 25°C on a 50 Ω system, unless otherwise noted. All of the large signal performance parameters
were measured on the ADRF5345-EVALZ evaluation board.

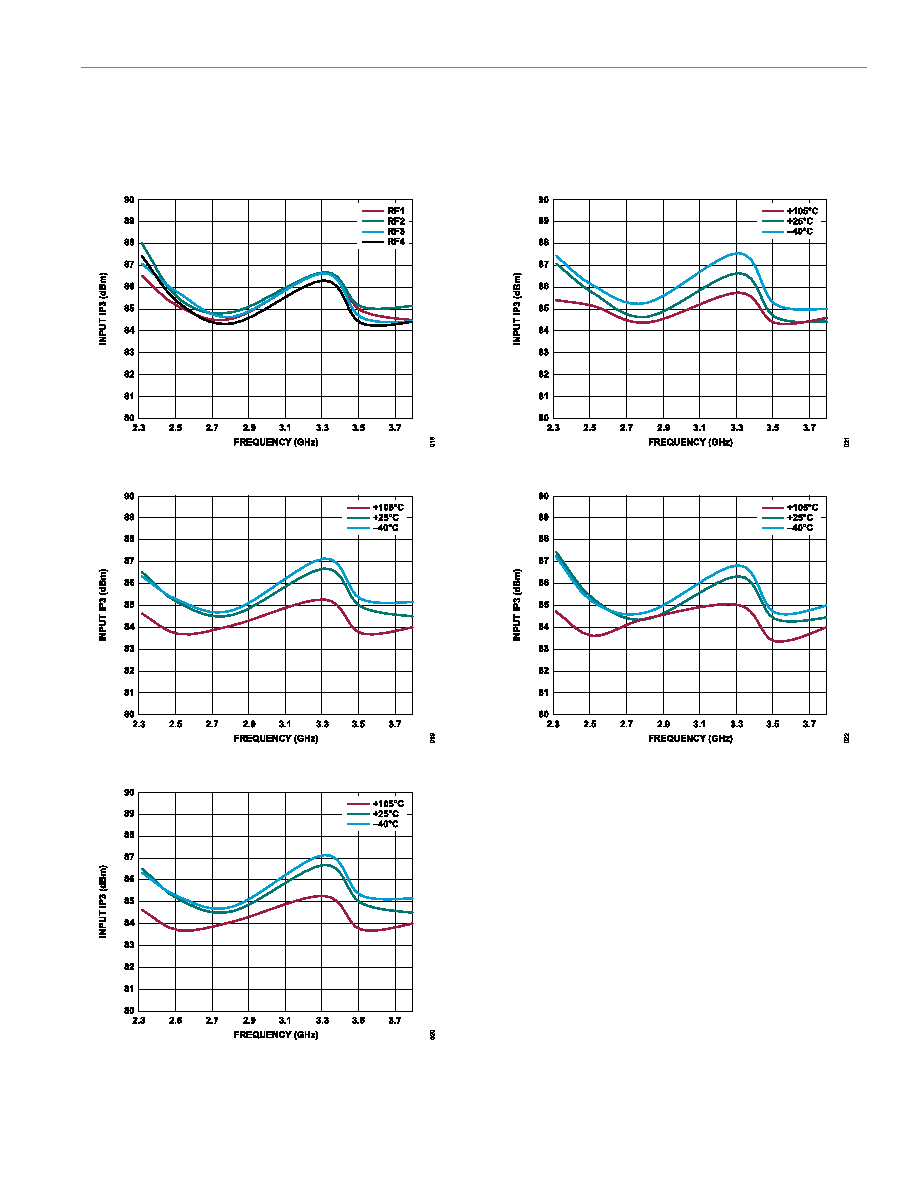

Figure 18. Input IP3 for RFC to RFx Selected vs. Frequency
Figure 19. Input IP3 for RF1 vs. Frequency over Various Temperatures
Figure 20. Input IP3 for RF2 vs. Frequency over Various Temperatures
Figure 21. Input IP3 for RF3 vs. Frequency over Various Temperatures
Figure 22. Input IP3 for RF4 vs. Frequency over Various Temperatures
