Product Description

The WRT Series antenna is ideally suited for

applications such as wireless vending, security,

traffic, or power equipment which require an

unobtrusive, tamper-resistant antenna solution.

The small 27 mm radome installs through a

small hole on the product and is anchored by a

threaded base. An adhesive foam compression

ring is used to resist the elements. The antenna

also features an integral counterpoise, which

reduces the need for a proximity ground plane.

The antenna is suited for mounting in applications

where the counterpoise will not be shielded

from the antenna (non-conductive or open metal

enclosures); installation where the counterpoise is

within a shielded enclosure will affect the antenna

performance. The antenna’s coax feed is available

with SMA or RP-SMA terminations. Alternate

coax lengths, connectors and custom colors are

available for volume OEM customers.

Features

• Low cost

• Unobtrusive

• Tamper resistant

• Integral counterpoise

• Indoor / outdoor

• Adhesive or permanent mount

Electrical Specifications

Center Frequency:

433MHz

Recom. Freq. Range:

425–441MHz

VSWR:

≤ 1.9 typical at center

Peak Gain:

–0.9dBi

Impedance:

50-ohms

Oper. Temp. Range:

–30° to +90°C

Max. Recom. Torque:

4.0 kgf-cm

Electrical specifications and plots measured on 10.16 cm x

10.16 cm (4.00” x 4.00”) reference ground plane

ANT-433-WRT-xxx

Data Sheet

by

Ordering Information

ANT-433-WRT-RPS (with RP-SMA connector)

ANT-433-WRT-SMA (with SMA connector)

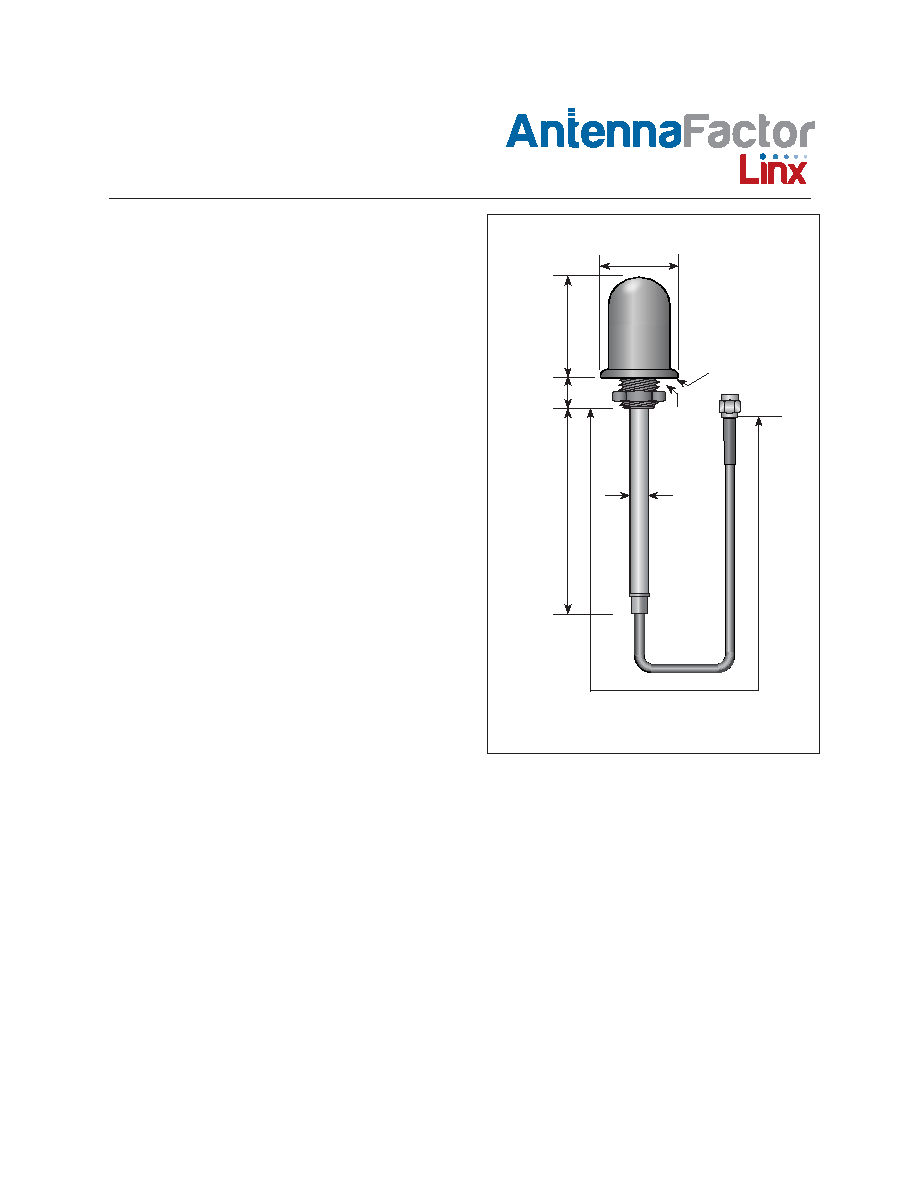

19.0 mm

(0.75")

RG-174 Cable Length

216.0 mm

(8.50”)

5.26 mm

(0.207")

27.0 mm

(1.06")

6.0 mm

(0.24")

83.8 mm

(3.30")

M11x1.0 mm

Thread

Adhesive Ring

Remove protective plastic

before installation
