NOTES: (UNLESS OTHERWISE SPECIFIED)

1. ALL DIMENSIONS ARE IN INCHES [mm].

2. DIMENSIONS APPLY AFTER FINISHING.

3. MANUFACTURE TO BE COMPLIANT WITH EU RoHS DIRECTIVE.

4. SAFETY BREAK ALL SHARP CORNERS AND EDGES .02 MAXIMUM.

SHEET 1 OF 1

LDCFDLT_A

SCALE: 2:1

TITLE:

SIZE DWG. NO.

REV

DO NOT SCALE DRAWING

ANGLES: 1

TOLERANCES:

.020 [0.50]-.200 [5.00]= .008 [0.20]

.200 [5.00]-1.200 [30.00]= .016 [0.40]

1.20 [30.0]-4.75 [120.0]= .024 [0.60]

4.75 [120.0]-12.40 [315.0]= .040 [1.0]

DRAWN:

ENGR:

DT:

DT:

MATERIAL:

FINISH:

PROJECTION:

THAT IS THE SOLE PROPERTY OF LINX TECHNOLOGIES, AND SHALL BE

TREATED AS SUCH. NO DISCLOSURE OR REPRODUCTION OF THIS

DOCUMENT IS PERMITTED, IN WHOLE OR IN PART, WITHOUT THE

EXPRESS WRITTEN PERMISSION OF LINX TECHNOLOGIES OR ITS

DESIGNATED AGENTS.

159 ORT LANE

MERLIN, OR 97532

REVISIONS

REV

DESCRIPTION

DATE

APPV

B

SAH

B

12-JUL-12

B.MURPHY

S.HOGAN

12-JUL-12

Added New Title Block

12-JUL-12

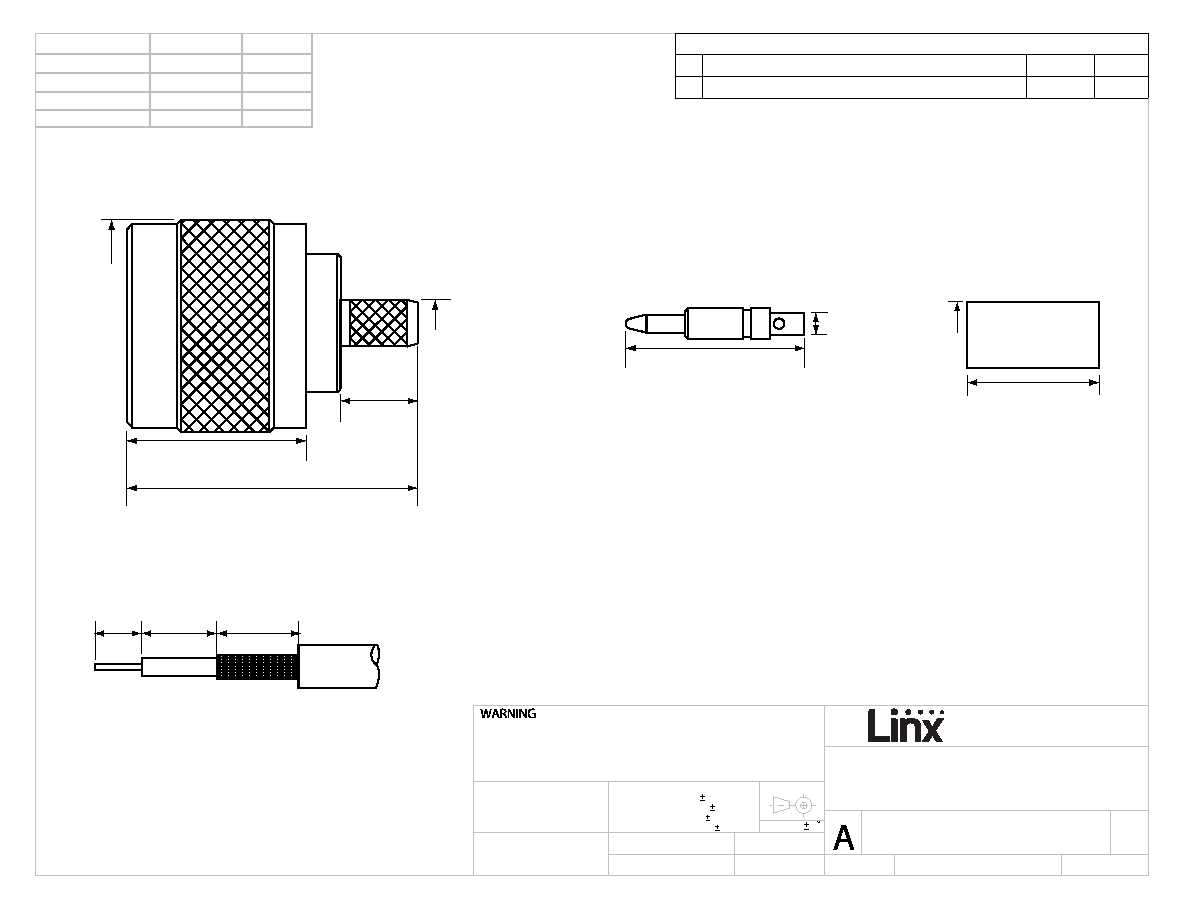

CONN007-R58

N MALE CABLE END CRIMP

FOR RG58 CABLE

Description

Material

Finish

Body

Pin

Insulation

Nickel

N/A

Gold

PTFE

Crimp Ring

Nickel

Brass

Brass

Brass

0.276

(7.00)

0.094

(2.40)

RECOMMENDED CABLE STRIPPING DIMENSIONS

0.118

(3.00)

RG-58 Cable

1. Solder the socket to the center conductor.

2. Insert the socket, center conductor, and insulator into the body.

3. Wrap the braid around the tail of the body and crimp the ring with a

hex crimp tool labeled for use with RG-58 cable.

CONN007-R58 ASSEMBLY INSTRUCTIONS

0.500

(12.70)

Ø0.256

(6.50)

CRIMP RING

0.689

(17.50)

0.083

(2.10)

PIN

5/8-24UNEF-2B THREADS

SIDE VIEW

0.803

(20.40)

0.287

(7.30)

0.661

(16.80)

0.177

(4.50)

1.106

(28.10)
