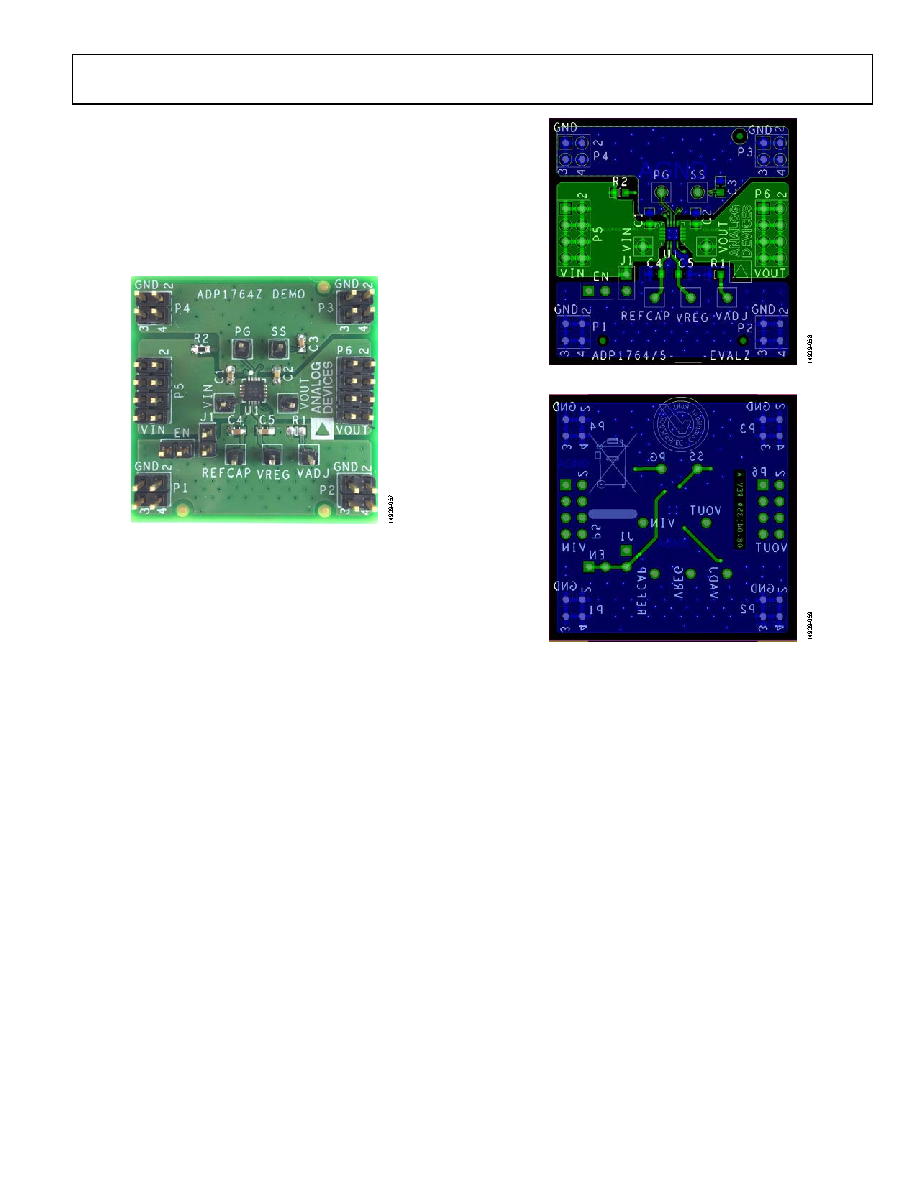

19 / 20 page ![]() Data Sheet ADP1764 Rev. A | Page 19 of 20 PCB LAYOUT CONSIDERATIONS Place the input capacitor as close as possible to the VIN and GND pins. Place the output capacitor as close as possible to the VOUT and GND pins. Place the soft start capacitor (CSS) as close as possible to the SS pin. Place the reference capacitor (CREF) and regulator capacitor (CREG) as close as possible to the REFCAP pin and VREG pin, respectively. Connect the load as close as possible to the VOUT and SENSE pins. Figure 57. Evaluation Board Figure 58. Typical Board Layout, Top Side Figure 59. Typical Board Layout, Bottom Side |
|
|
