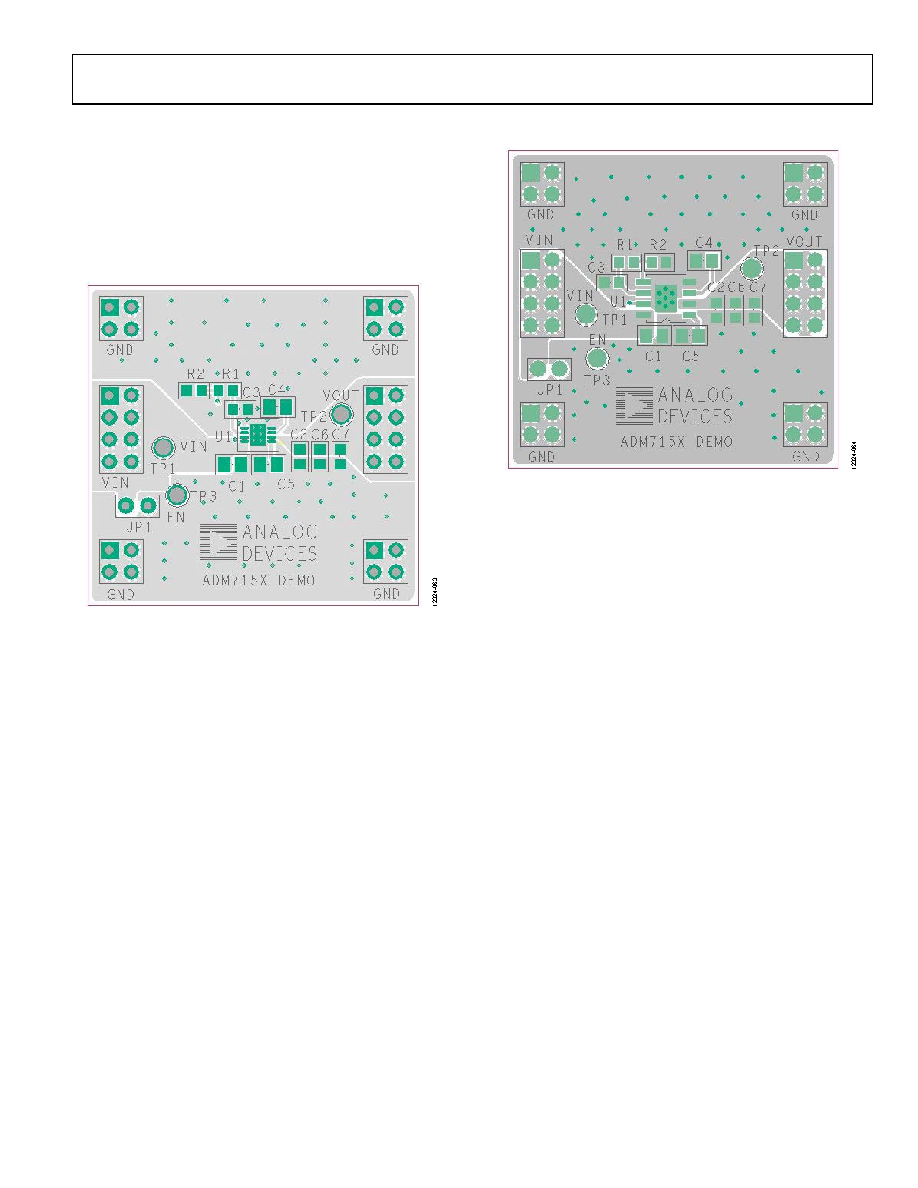

21 / 23 page ![]() Data Sheet ADM7154 Rev. B | Page 21 of 23 PCB LAYOUT CONSIDERATIONS Place the input capacitor as close as possible to the VIN and GND pins. Place the output capacitor as close as possible to the VOUT and GND pins. Place the bypass capacitors (CREG, CREF, and CBYP) for VREG, VREF, and VBYP close to the respective pins (VREG, REF, and BYP) and GND. Use of an 0805, 0603, or 0402 size capacitor achieves the smallest possible footprint solution on boards where area is limited. Figure 63. Example 8-Lead LFCSP PCB Layout Figure 64. Example 8-Lead SOIC PCB Layout |
|
|
