Data Sheet

ADCA5191

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 13 of 24

DOCSIS 3.1 DOWNSTREAM PERFORMANCE (SEE FIGURE 39)

190×, ITU-T J.83B, SCQAM 6 MHz Channels, and 54 MHz to 1218 MHz, unless otherwise noted. In Figure 22 to Figure 30, the performance at

the lower output power is limited by the test equipment and is not indicative of the noise performance of the device.

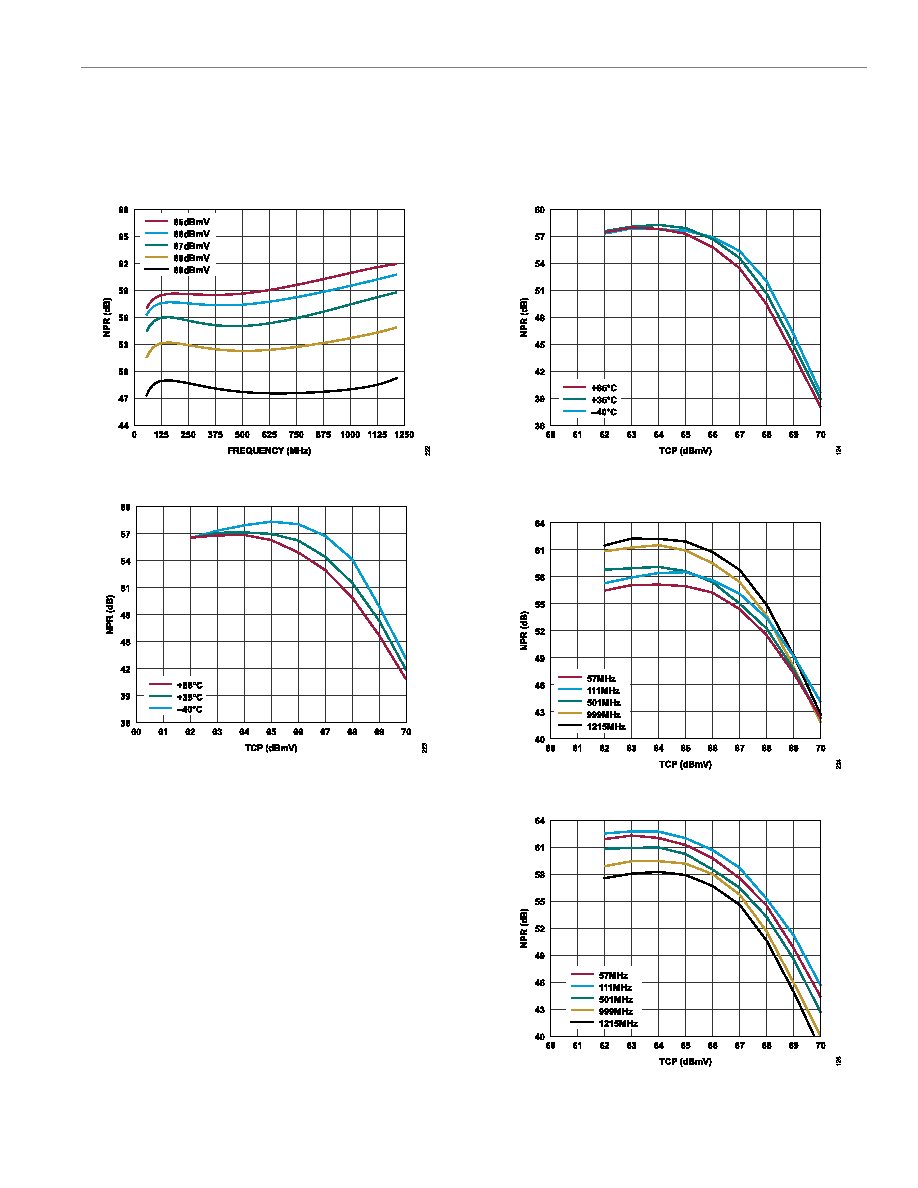

Figure 23. NPR vs. TCP Over Temperature, Worst Case Frequency, 10 dB Tilt,

Figure 24. NPR vs. TCP Over Temperature, Worst Case Frequency, 0 dB Tilt,
