Specifications

SWITCH FUNCTION: 1 thru 10 and 12 position available.

CONTACT RATING: 100 mA max. @ 5 V DC or 25 mA max.

@ 24 V DC.

MECHANICAL AND ELECTRICAL LIFE: 1,000 cycles min.

@ 5 V DC 10mA.

CONTACT RESISTANCE: 50 milliohms initial max.

INSULATION RESISTANCE: 100 V DC 100 megohms min.

DIELECTRIC WITHSTAND VOLTAGE: 300 V AC for 1 minute.

STORAGE TEMPERATURE: -40°C to 85°C.

OPERATING TEMPERATURE: -20°C to 85°C.

OPERATING FORCE: 800 grams max.

SOLDERABILITY: Flow solderable and washable

(soldering: 260°C for 10 sec. max.)

PACKAGING: Switches supplied in rigid dispensing tubes in full-

tube quantities only, this may affect order quantity. Numbers

of switches per tube varies with model. Tape and reel

packaging available for SMT options.

Materials

HOUSING: PPS, color black (UL94V-0).

COVER: PPS, color black (UL94V-0).

ACTUATOR: PA-6T (UL94V-0).

CONTACTS: Beryllium Copper with Gold over Nickel plate.

TERMINALS: Brass, Gold over Nickel plate.

Note: Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

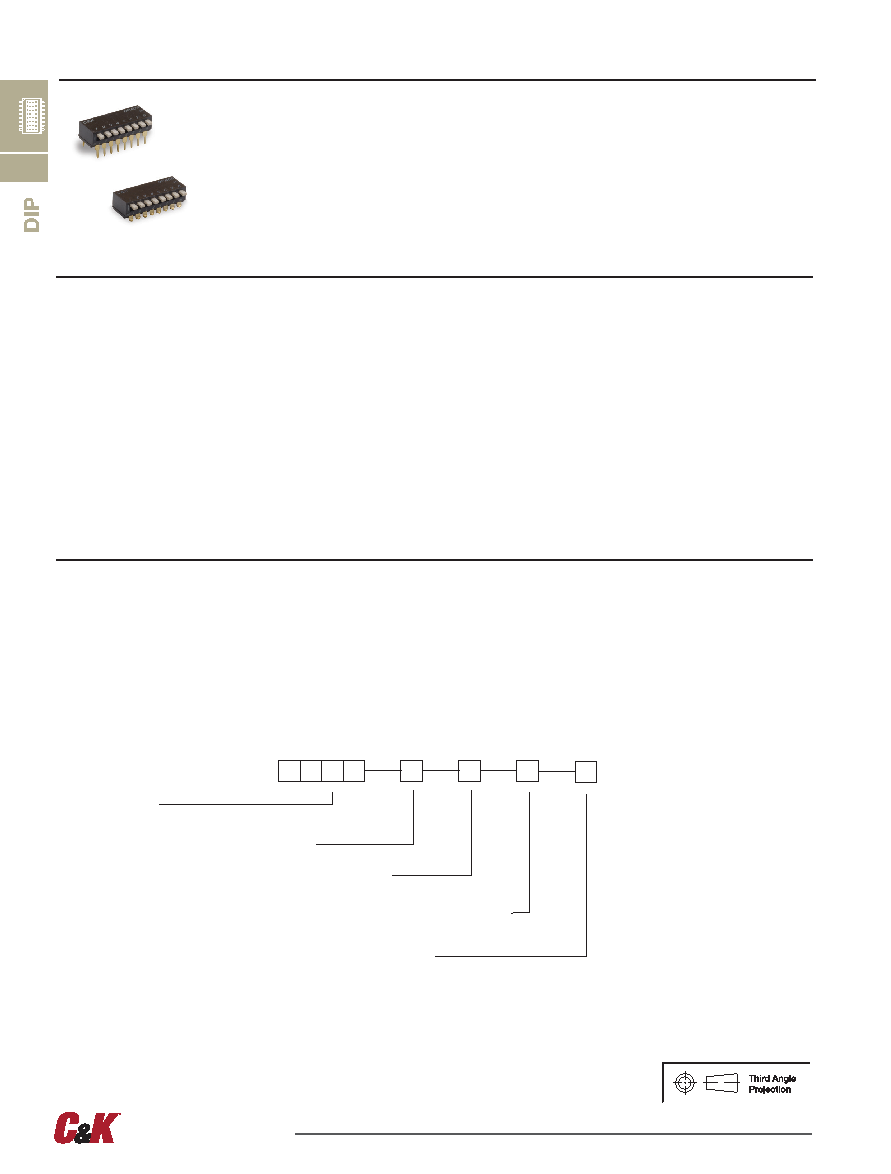

BPA Series

Side Actuated DIP Switches

Features/Benefits

SMT models

not require tape seal for washing

Typical Applications

peripherals

applications

Model

On Position

R

Up

Terminations

Packaging

BP A

B

Contact material

How To Order

The Build-A Switch concept allows you to mix and match options to create the switch you need. Below is a complete

listing of options shown in catalog. To order, simply select desired option from each category and place in the appropriate

box.

All switches supplied in “OFF” position.

13 feb 19
