3

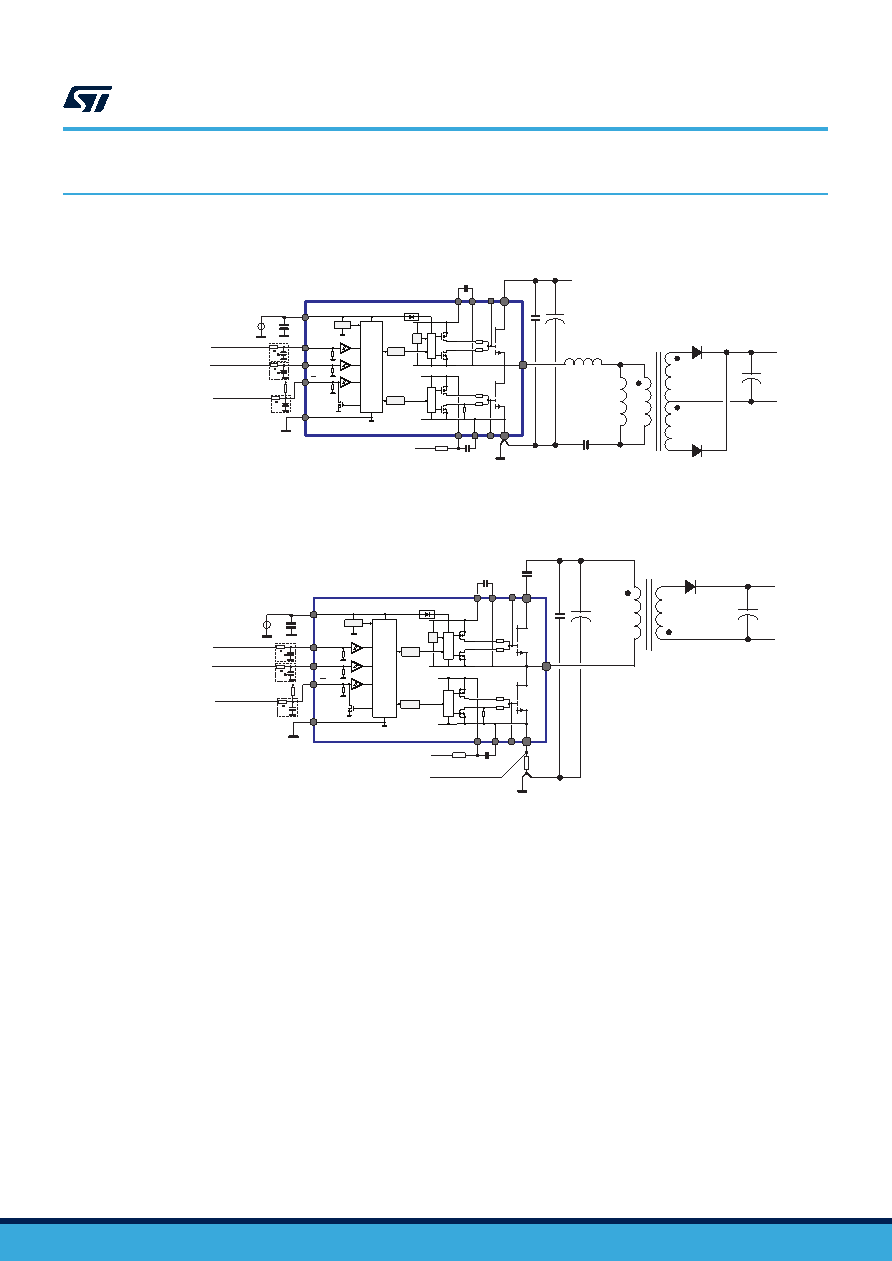

Typical application diagrams
Figure 3. Typical application diagram – Resonant LLC converter
+
CPVCC
FROM/TO CONTROLLER
H.V.
C
R
CBOOT
CVCC
C
R
COD
R
VCC
VCC
VPU
CbuS
FROM/TO CONTROLLER
FROM/TO CONTROLLER
VOUT
Driver
Driver
Logic,
interlocking,
overtemp
Level Shifter
Level Shifter
VCC UVLO
UVLO
Vbo
PGND
PVCC
OUTb
BOOT
GL
GH
VCC
HIN
LIN
SD/OD
GND
OUT
VS
SENSE
HON
HOFF
LON
LOFF
RBLEED
RGONL
RGOFFL
RGOFFH
RGONH
Figure 4. Typical application diagram – Active clamp flyback
+
CPVCC
FROM/TO CONTROLLER
H.V.
C
R
CBOOT
CVCC
C
R
COD
R
VOUT
VCC
VCC
VPU
CC
CbuS
FROM/TO CONTROLLER
FROM/TO CONTROLLER
TO CONTROLLER
Driver
Driver
Logic,
interlocking,
overtemp
Level Shifter
Level Shifter
VCC UVLO
UVLO
Vbo
PGND
PVCC
OUTb
BOOT
GL
GH
VCC
HIN
LIN
SD/OD
GND
OUT
VS
SENSE
HON
HOFF
LON
LOFF
RBLEED
RGONL
RGOFFL
RGOFFH
RGONH
MASTERGAN4
Typical application diagrams
DB4419 - Rev 1
