CC400
SWRS050
Page 28 of 32
30.
Package Description (SSOP-28)
10.50
9.90

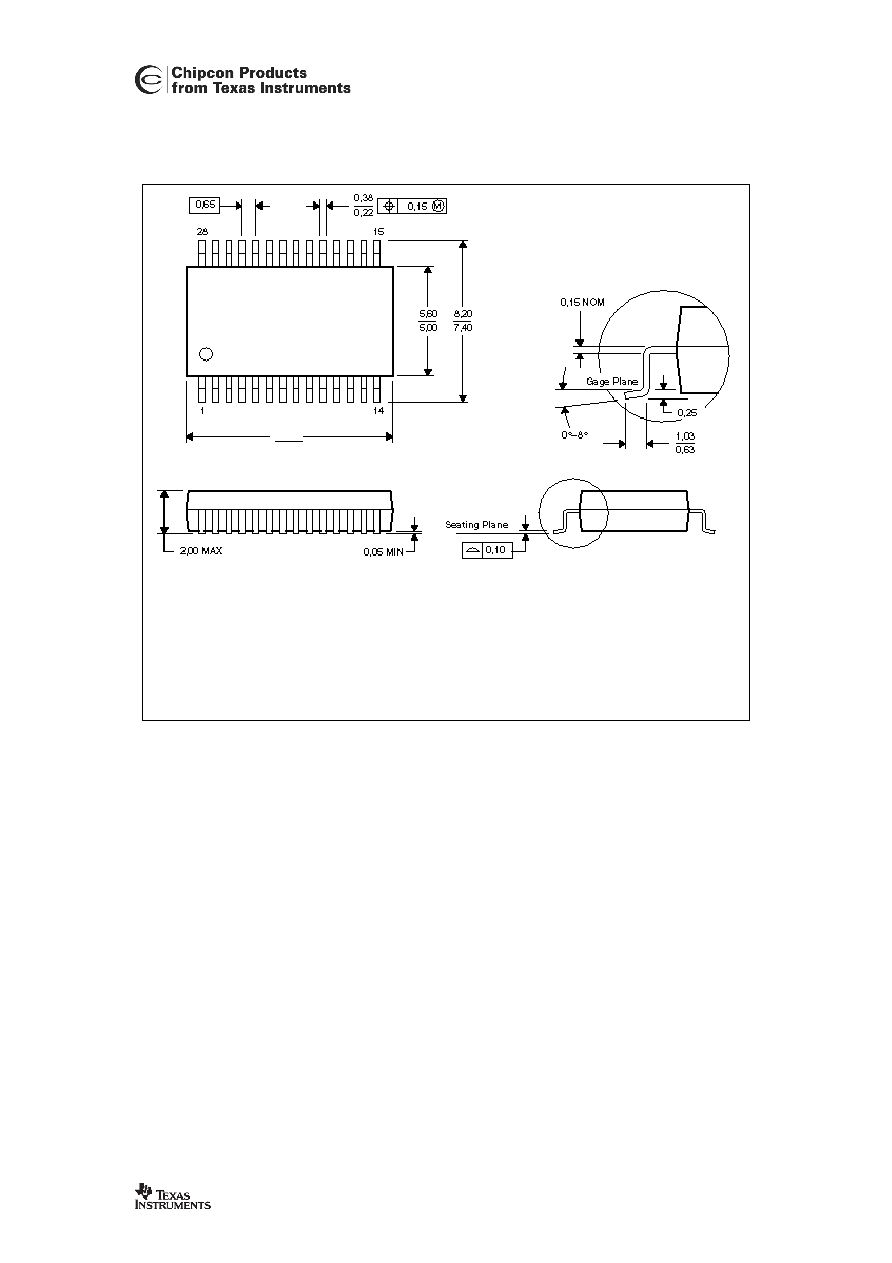

Figure 13: Package Dimensions Drawing
NOTES:
A. All linear dimensions are in millimeters.
B. This drawing is subject to change without notice.
C. Body dimensions do not include mold flash or protrusion not to exceed 0.1mm.
D. Falls within JEDEC MO-150.
31.
Soldering Information
The recommended reflow soldering profiles for SnPb eutectic and Pb-free soldering for Small
Body SMD packages are according to IPC/JEDEC J-STD-020C.
