ADP5588

Data Sheet

Rev. D | Page 6 of 28

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

PIN 1

INDICATOR

NOTES

1. NC = NO CONNECT.

2. EXPOSED PAD MUST BE CONNECTED TO GROUND.

1

R7

2

R6

3

R5

4

R4

5

R3

6

R2

15 C6

16 C7

17 CMP_IN1/C8

18 CMP_IN2/C9

14 C5

13 C4

TOP VIEW

(Not to Scale)

ADP5588

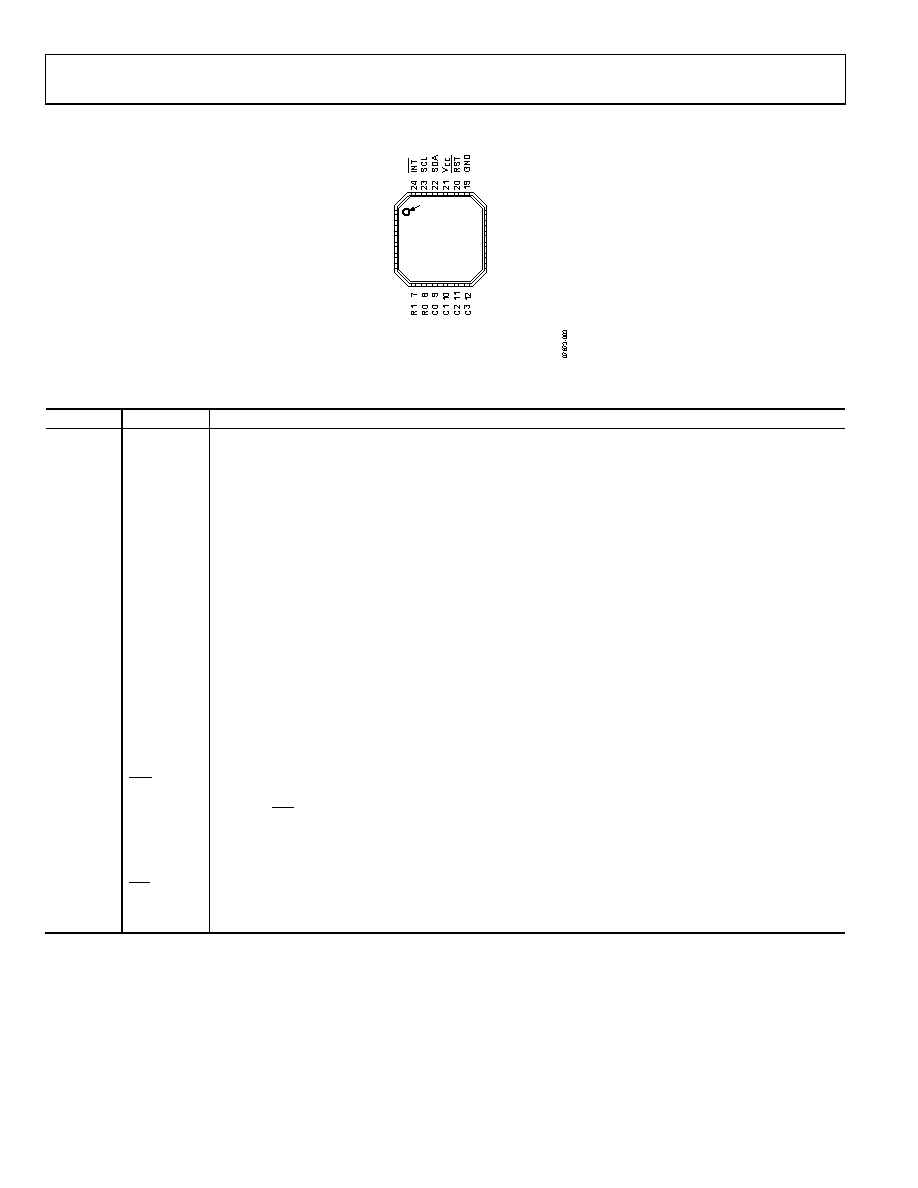

Figure 3. Pin Configuration

Table 9. Pin Function Descriptions

Pin No.

Mnemonic

Description

1

R7

GPIO, Row 7 in the Keypad Matrix.

2

R6

GPIO, Row 6 in the Keypad Matrix.

3

R5

GPIO, Row 5 in the Keypad Matrix.

4

R4

GPIO, Row 4 in the Keypad Matrix.

5

R3

GPIO, Row 3 in the Keypad Matrix.

6

R2

GPIO, Row 2 in the Keypad Matrix.

7

R1

GPIO, Row 1 in the Keypad Matrix.

8

R0

GPIO, Row 0 in the Keypad Matrix.

9

C0

GPIO, Column 0 in the Keypad Matrix.

10

C1

GPIO, Column 1 in the Keypad Matrix.

11

C2

GPIO, Column 2 in the Keypad Matrix.

12

C3

GPIO, Column 3 in the Keypad Matrix.

13

C4

GPIO, Column 4 in the Keypad Matrix.

14

C5

GPIO, Column 5 in the Keypad Matrix.

15

C6

GPIO, Column 6 in the Keypad Matrix.

16

C7

GPIO, Column 7 in the Keypad Matrix.

17

CMP_IN1/C8

GPIO, Column 8 in the Keypad Matrix; Comparator Input for Photosensor 1.

18

CMP_IN2/C9

GPIO, Column 9 in the Keypad Matrix; Comparator Input for Photosensor 2.

19

GND

Ground.

20

RST

Hardware Reset (Active Low). This bit resets the device to the power default conditions. The reset pin must be

driven for a minimum of 50 μs to be valid and to prevent falsing due to ESD glitches or noise in the system. If

not used, RST must be tied high with a pull-up.

21

22

SDA

23

SCL

24

INT

Processor Interrupt, Active Low, Open Drain. This pin can be pulled up to 2.7 V or 1.8 V for selection flexibility in

the processor GPIO supply group.

EP

EPAD

Exposed Pad. The exposed pad must be connected to ground.
