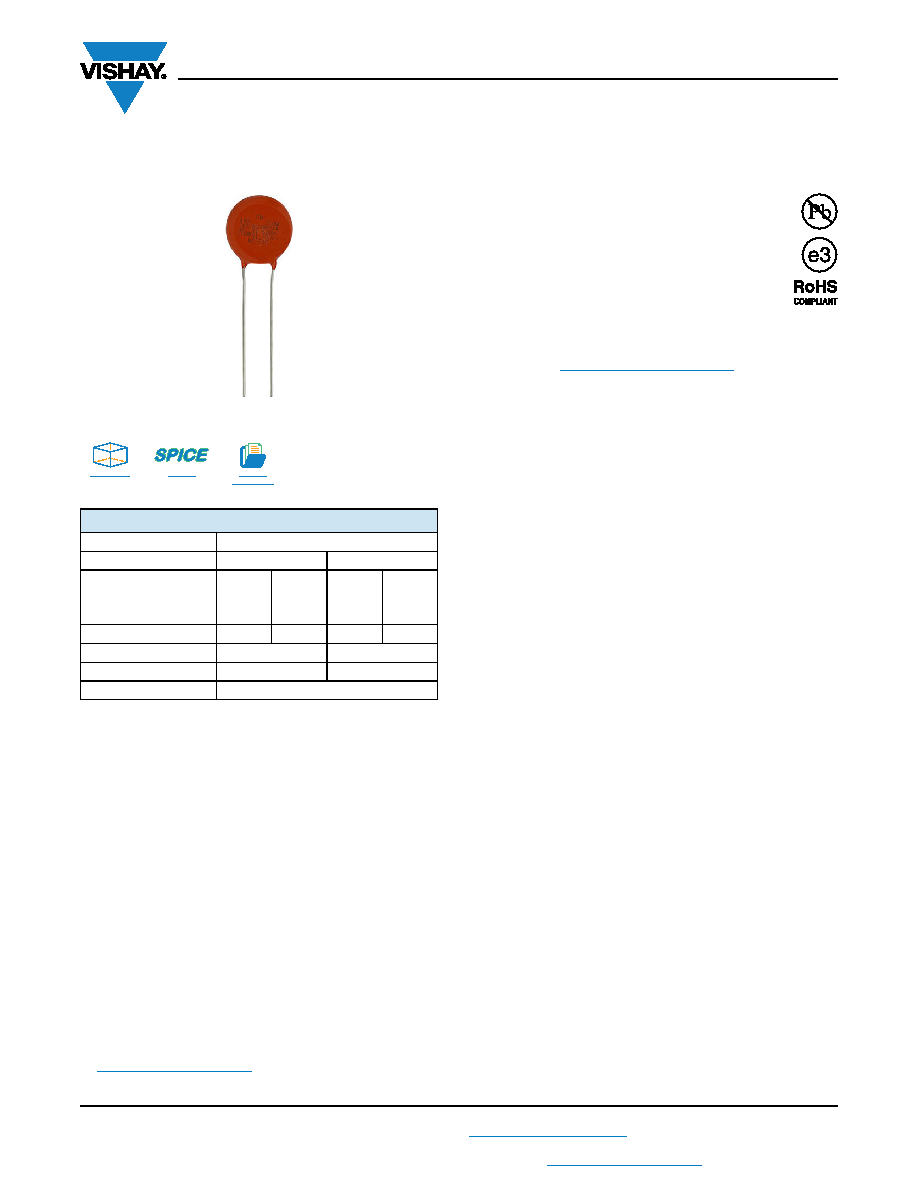

440L Series

www.vishay.com

Vishay Cera-Mite

Revision: 29-Oct-2021

1

Document Number: 23102

For technical questions, contact: ceramitesupport@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

EMI Suppression Capacitor, Ceramic Disc,

Class X1, 760 VAC, Class Y1, 500 VAC

LINKS TO ADDITIONAL RESOURCES

INSULATION RESISTANCE

Min. 1000

ΩF

TOLERANCE ON CAPACITANCE

± 10 %; ± 20 %

DISSIPATION FACTOR

2.0 % max. at 1 kHz; 1 V

CERAMIC DIELECTRIC

C0G, U2J, P3K, R3L (class 1)

X7R, Y5U (class 2)

CLIMATIC CATEGORY ACC. TO EN 60068-1

25/125/21

OPERATING TEMPERATURE RANGE

-30 °C to +125 °C (1)

Note

(1) For explanation about the difference of operating temperature

range and temperature characteristic of capacitance please see

www.vishay.com/doc?48299)

FEATURES

• Complies with IEC 60384-14

• Complies with IEC 60384-14 annex I humidity

robustness grade IIIB (highest)

• High reliability

• Radial leads

• High capacitance up to 20 nF

• Singlelayer AC disc safety capacitors

• Material categorization: for definitions of compliance

please see www.vishay.com/doc?99912

APPLICATIONS

• X1, Y1 according to IEC 60384-14

• Line-to-line filtering (Class X)

• Line-to-ground filtering (Class Y)

• Primary and secondary coupling (SMPS)

• Applications at large temperature and / or high humidity

• EMI / RFI suppression and filtering

DESIGN

The capacitors consist of a ceramic disc of which both sides

are silver-plated. Connection leads are made of tinned

copper having a diameter of 0.032" (0.81 mm). The

capacitors may be supplied with radial kinked or straight

leads having a lead spacing of 0.375" (9.5 mm). The

standard tolerances are ± 10 % or ± 20 %. Coating is made

of

flame-retardant

epoxy

resin

in

accordance

with

“UL 94 V-0.”

CAPACITANCE RANGE

10 pF to 20 nF

RATED VOLTAGE

IEC 60384-14:

• X1:

760 VAC, 50 Hz

• Y1:

500 VAC, 50 Hz

DIELECTRIC STRENGTH BETWEEN LEADS

Component test, 100 % test at production line:

4000 VAC, 50 Hz, 2 s

As repeated test at customer side admissible only once with:

3600 VAC, 50 Hz, 2 s

Random sampling test (destructive test):

4000 VAC, 50 Hz, 60 s

DIELECTRIC STRENGTH OF BODY

INSULATION

4000 VAC, 50 Hz, 60 s (destructive test)

QUICK REFERENCE DATA

DESCRIPTION

VALUE

Ceramic class

1

2

Ceramic dielectric

C0G,

U2J,

P3K,

R3L

C0G,

U2J,

P3K,

R3L

X7R,

Y5U

X7R,

Y5U

Voltage (VAC)

500

760

500

760

Min. capacitance (pF)

10

68

Max. capacitance (pF)

47

20 000

Mounting

Radial

333

DDD3 D

3D Models

Models
