Data Sheet

ADPA7009-2

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 12 of 24

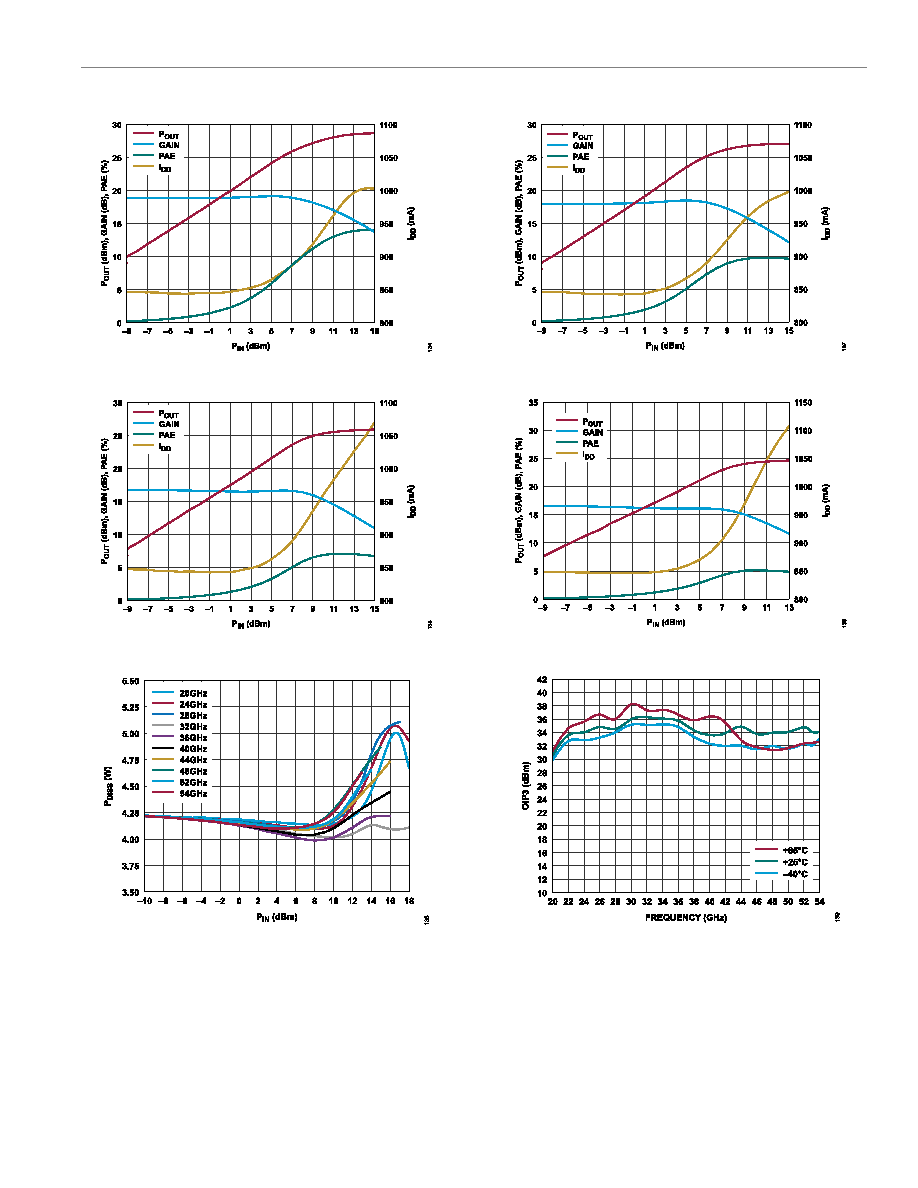

Figure 34. POUT, Gain, PAE, and IDD vs. PIN, 36 GHz, VDD = 5 V, IDQ = 850 mA

Figure 35. POUT, Gain, PAE, and IDD vs. PIN, 44 GHz, VDD = 5 V, IDQ = 850 mA

Figure 36. PDISS vs. PIN for Various Frequencies, TCASE = 85°C, VDD = 5 V, IDQ

= 850 mA

Figure 37. POUT, Gain, PAE, and IDD vs. PIN, 40 GHz, VDD = 5 V, IDQ = 850 mA

Figure 38. POUT, Gain, PAE, and IDD vs. PIN, 50 GHz, VDD = 5 V, IDQ = 850 mA

Figure 39. OIP3 vs. Frequency for Various Temperatures,

POUT per Tone = 14 dBm, VDD = 5 V, IDQ = 850 mA
