Technical Data ELX1131

Effective December 2021

MFBA2V1608

Automotive multilayer chip ferrite bead

www.eaton.com/electronics

Product specifications

Part number2

Impedance (Ω)

100 MHz, ±25%,

@ +25°C

DCR (Ω) maximum

@ +25 °C

Rated current1

(mA)

maximum

MFBA2V1608-300-R

30

0.04

3000

MFBA2V1608-800-R

80

0.04

3000

MFBA2V1608-121-R

120

0.10

2000

MFBA2V1608-151-R

150

0.10

2000

MFBA2V1608-221-R

220

0.10

2000

MFBA2V1608-301-R

300

0.20

1000

MFBA2V1608-471-R

470

0.20

1000

MFBA2V1608-601-R

600

0.20

1000

Part marking: No marking

All soldering surfaces to be coplanar within 0.1 millimeters

Tolerances are ±0.1 millimeters unless stated otherwise

Pad layout dimensions are reference only

Traces or vias underneath the inductor is not recommended

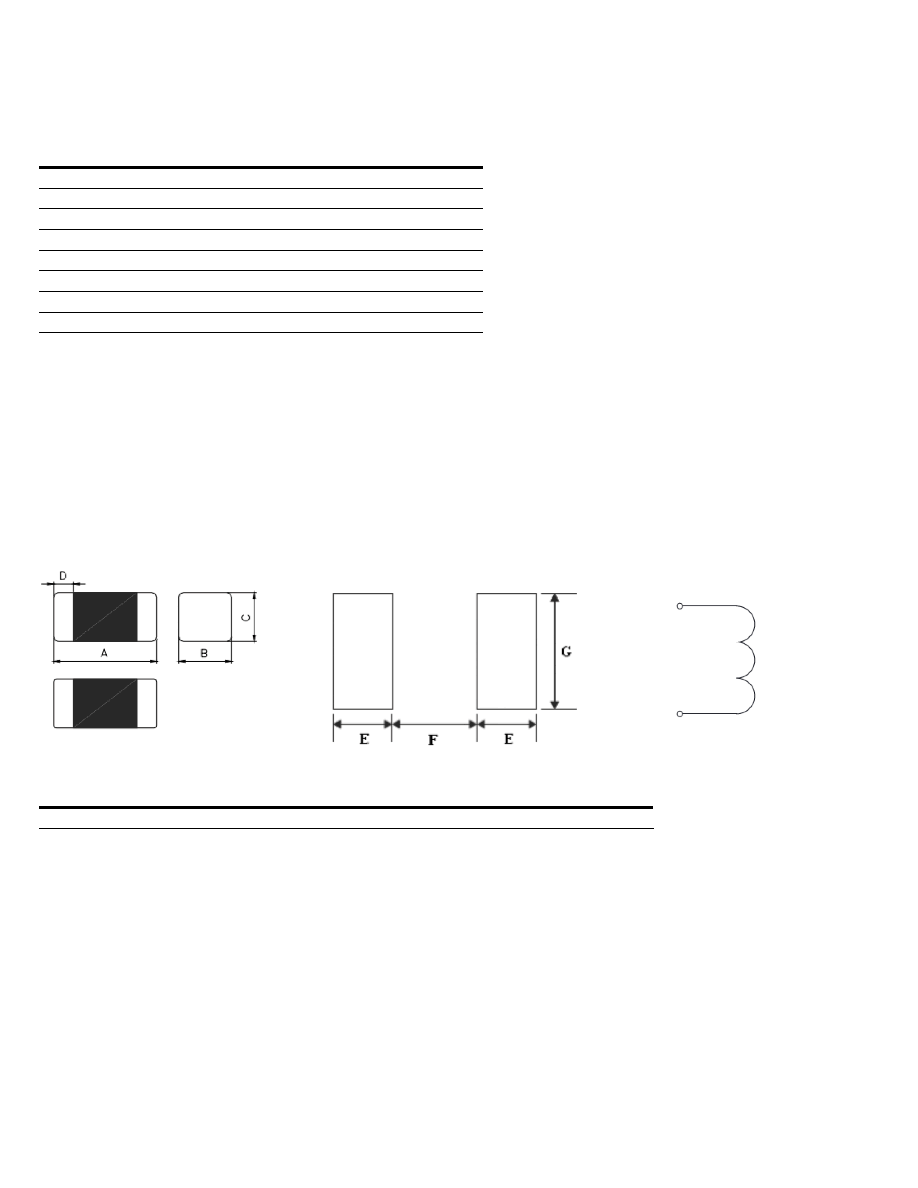

Mechanical parameters (mm)

Part number

A

B

C

D

E (ref.)

F (ref.)

G (ref.)

MFBA2V1608-***-R

1.6 ±0.15

0.80 ±0.15

0.80 ±0.15

0.30 ±0.20

0.80

0.85

0.95

1. Rated current: Current rating for an approximate self-temperature rise of 40 °C or less.

2. Part number definition: MFBA2V1608-xxx-R

MFBA2V1608 = Product code and size

xxx = Impedance value in Ω, last character equals number of zeros

-R suffix = RoHS compliant

Recommended pad layout

Schematic
