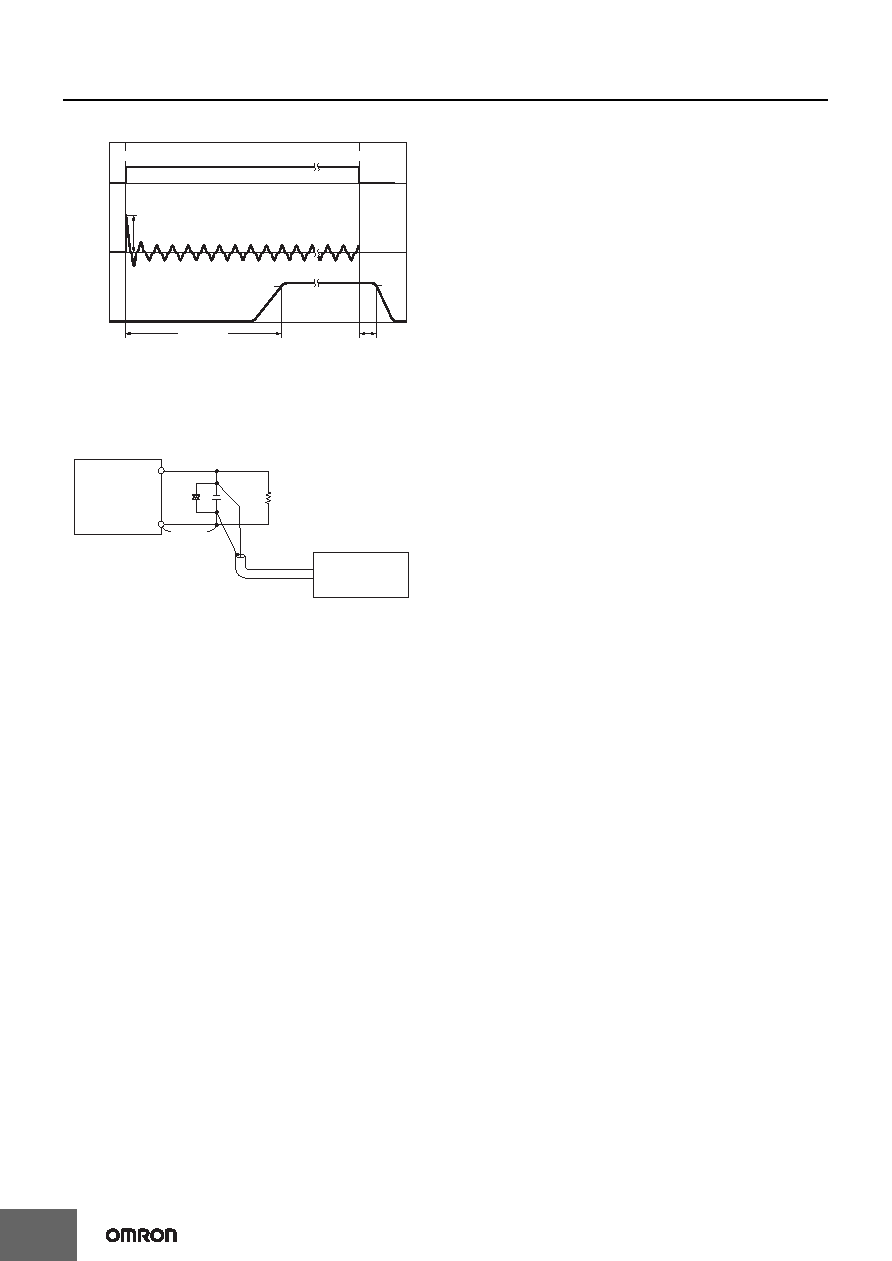

Inrush Current, Startup Time, Output Hold Time

Note: The total inrush current of all of the Power Supplies will flow for parallel operation or backup operation.

Sufficiently check the fusing characteristics of fuses and the operating characteristics of breakers and select fuses and breakers so that

external fuses will not burn out or breakers will not operate due to inrush current.

Ripple Noise Voltage

The specified standard for the ripple voltage noise was measured with a measurement circuit that is based on JEITA standard RC-9131A.

90%

96.5%

Startup time

AC input

voltage

AC input

current

Output

voltage

Inrush current on input application

Input OFF

Input ON

Hold time

150mm

S8FS-G

Oscilloscope

Frequency band:

100 MHz

C1

C2

Load

C1:100µF

C2:0.47µF

Coaxial cable

+V

−V
