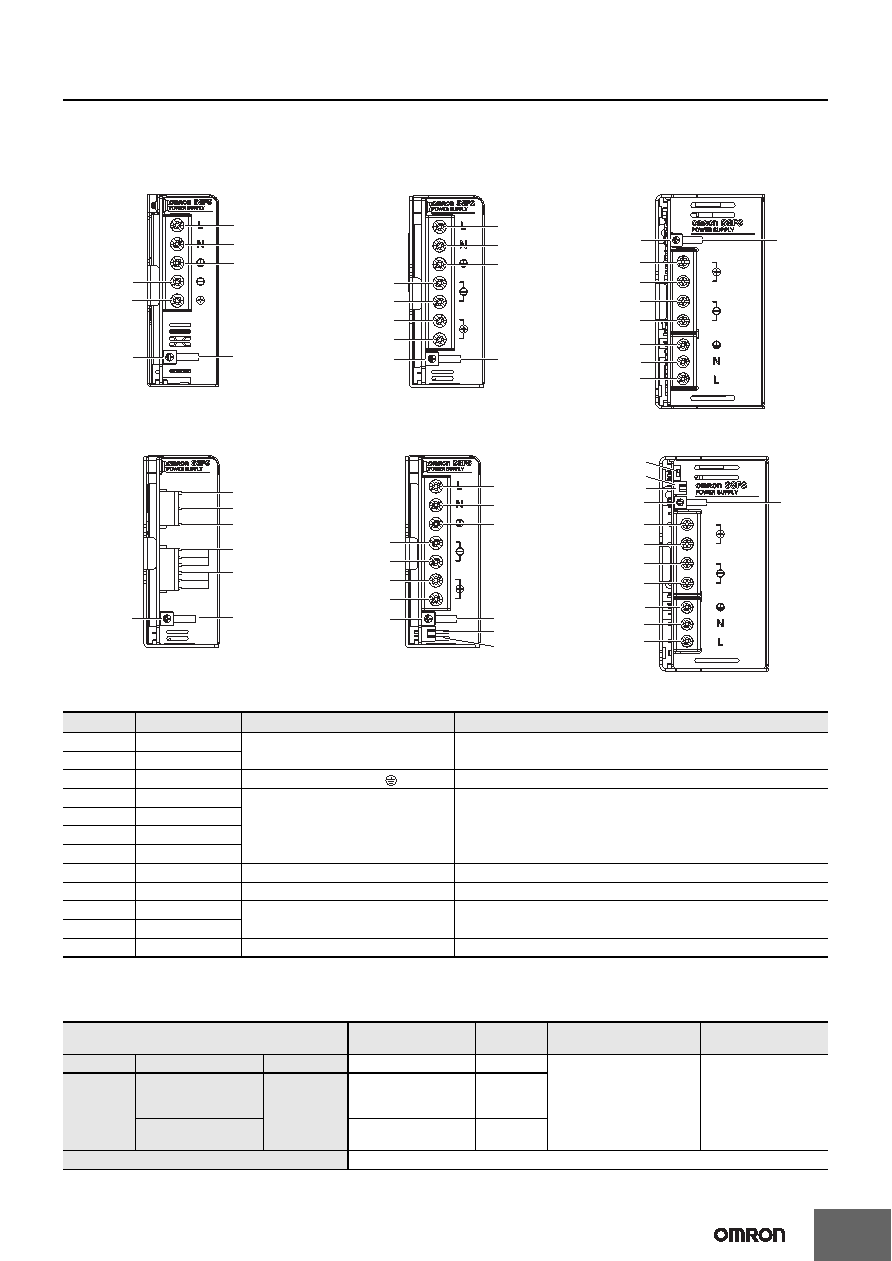

Construction and Nomenclature

Nomenclature

*1. The fuse is located on the (L) side. It is not user-replaceable. For a DC input, connect the positive voltage to the L terminal.

*2. This is the protective earth terminal specified in the safety standards. Always ground this terminal.

Input and Output Connectors (Connector type)

Note: The female connectors that are required for wiring are not provided with the Power Supply.

S8FS-G015

@@@

S8FS-G030

@@@

S8FS-G050

@@@

S8FS-G100

@@@

S8FS-G150

@@@

S8FS-G300

@@@

S8FS-G600

@@@

S8FS-G

@@@24CE

S8FS-G

@@@24C-R

S8FS-G

@@@24C-WR

No.

Terminal name

Name

Function

(1)

L

Input terminals

Connect the input lines to these terminals.

*1

(2)

N

(3)

PE

Protective Earth terminal ()

Connect the ground line to this terminal.

*2

(4)

+V1

DC output terminals

Connect the load lines to these terminals.

(5)

+V2

(6)

-V1

(7)

-V2

(8)

---

Output indicator (DC ON: green)

Lights while a direct current (DC) output is ON.

(9)

---

Output voltage adjuster (V.ADJ)

Use to adjust the voltage.

(10)

+RC

Remote control terminals

Wire for remote control.

(11)

-RC

(12)

---

Parallel operation switch

To operate in parallel, set the switch to the “PARALLEL” side.

Applicable

connector

Housing

Terminals

Applicable

crimp tool

Input side

All models

CN110

B3P5-VH (LF) (SN)

VHR-5N

Reel: SVH-21T-P1.1

Bulk: BVH-21T-P1.1

YC-160R

Output side

S8FS-G01524

@E

S8FS-G03024

@E

S8FS-G05024

@E

CN510

B4P-VH (LF) (SN)

VHR-4N

S8FS-G10024

@E

S8FS-G15024

@E

B6P-VH (LF) (SN)

VHR-6N

Manufacturer

J.S.T. Mfg. Co., Ltd.
