S8FS-G

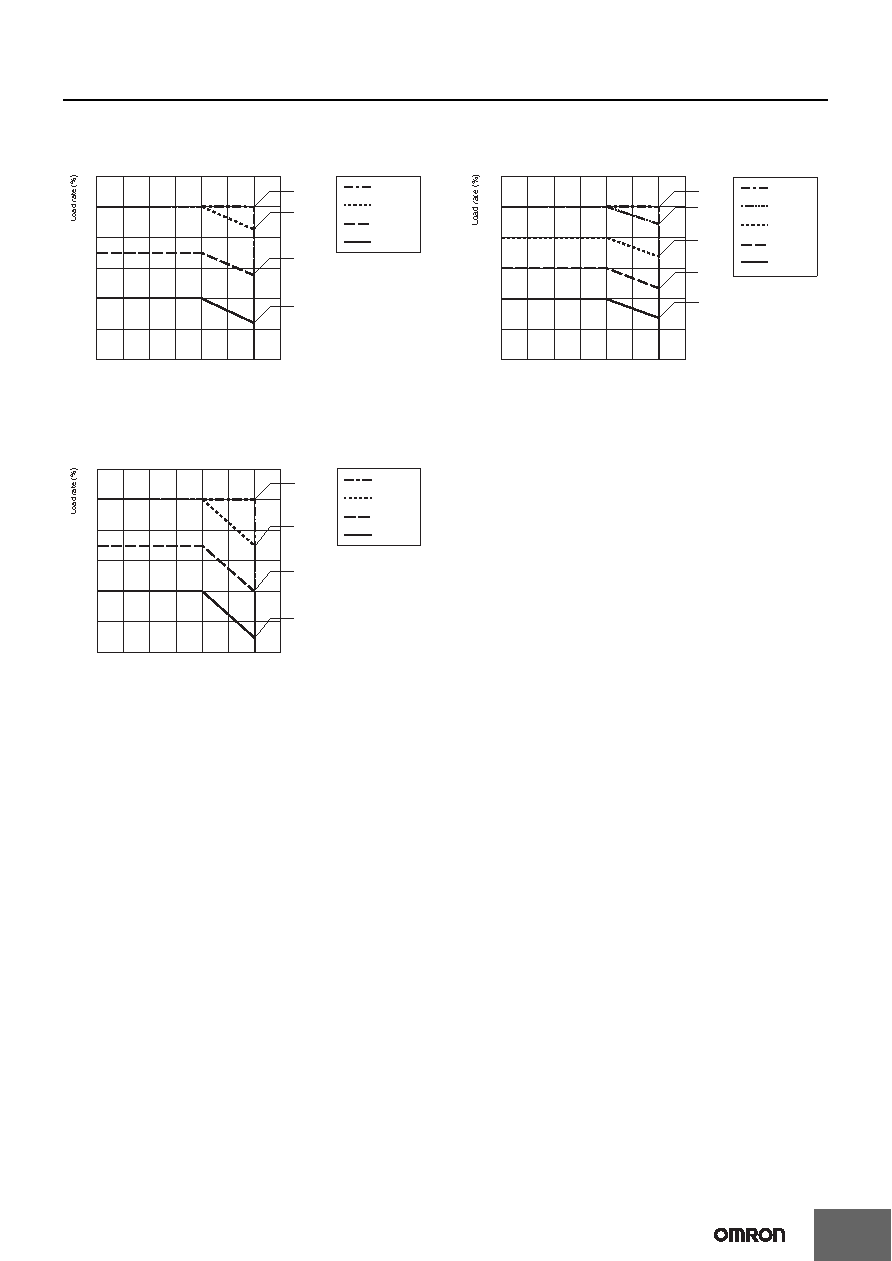

This Power Supply can be used at an altitude of 3,000 m.

Between 2,000 and 3,000 m, derate the load according to the following derating curve.

15 W to 150 W (During an AC input)

15 W to 150 W (During a DC input)

Note: At a voltage below 100 VAC, reduce the load at the rate of

1.3%/V. (40°C < Ambient temperature

≤ 70°C)

Note: At a voltage below 100 VDC, reduce the load by multiplying

with the coefficient 0.9.

300 W and 600 W

Note: At a voltage below 100 VAC, reduce the load at the rate of

1.3%/V.

70%

°C max.

°C

500

1,000

1,500

2,000

2,500

3,000

3,500

100%

85%

55%

25%

120

100

Altitude (m)

120

100

100%

90%

50%

70%

30%

°C max.

°C

500

1,000

1,500

2,000

2,500

3,000

3,500

Altitude (m)

500

1,000

1,500

2,000

2,500

3,000

3,500

120

100

°C max.

°C

100%

70%

40%

10%

Altitude (m)
