Technical Data ELX1147

Effective February 2022

2822HC

High current surface mount Brick fuse

www.eaton.com/electronics

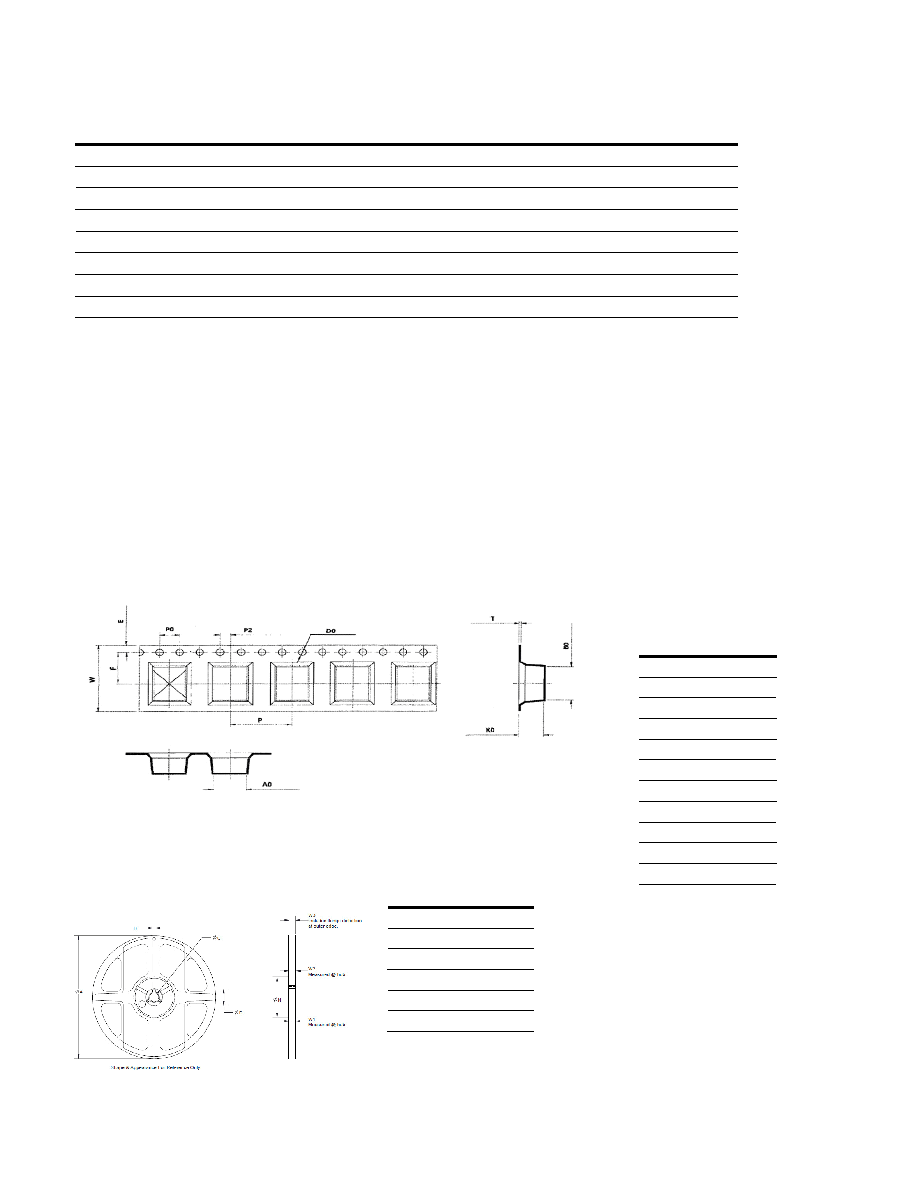

Packaging information - mm

1000 parts per 13” diameter reel (EIA-481 compliant)

Drawing not to scale

Dimension

millimeter

W

16.0

F

7.5

E

1.75

P0

4.0

P

12.0

P2

2.0

ØD0

1.50

ØD1

N/A

A0

6.3

B0

8.0

K0

4.7

Reel dimension- mm

Dimension

millimeter

A

330

B

2.2

C

13.5

D

22

W1

16.5

W2

22.4 maximum

General specifications

Operating temperature: -40 °C to +125 °C with proper derating factor applied

Soldering heat resistance: MIL-STD-202 method 210, Solder temperature +260 ±5 °C, solder immersion time 10±5 s

Solderability test: J-STD-002, method B1, Steam aging 1 hour, Solder temperature + 255 ±5 °C, solder immersion time 5 s

Thermal shock: MIL-STD-202 method 107, -40 °C/+125 °C. 1000 cycles, maximum transfer time 20 seconds, Dwell time 15 minutes. Air-Air

Humidity bias: MIL-STD-202 method 103, 1000 hours +85 °C/85% RH. at 10% of operating power.

Vibration: MIL-STD-202F method 201, 2 hours each of 3 orientations. Test from 10-55 Hz for 1 minute

Mechanical shock: MIL-STD-202 method 213, Figure 1 of Method 213. Condition C 100 g 6 ms

High temperature operating life: MIL-STD-202 method 108, Condition D steady state TA=+70 °C at 60% rated current.
