APPLICATIONS INFORMATION

analog.com

Rev. 0 | 19 of 21

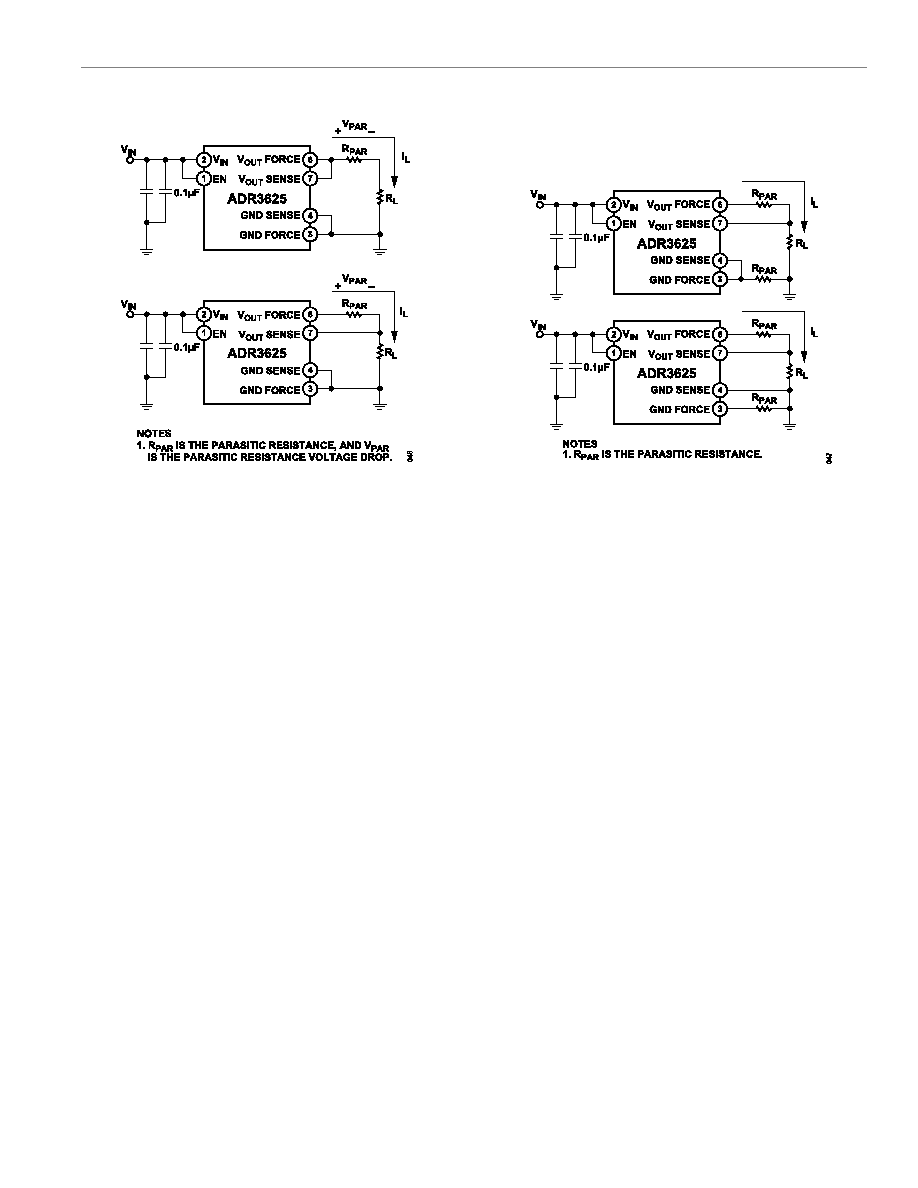

Figure 55. Output Force and Sense

Avoid adding parasitic resistance between the load and the VOUT

SENSE pin. Minimize the metal parasitic in the VOUT FORCE line to

the load to maintain a low dropout voltage.

The GND_FORCE line carries the load sinking current. Connect the

GND_SENSE line directly to the bottom of the load as shown in

Figure 56.

Figure 56. Ground Force and Sense
