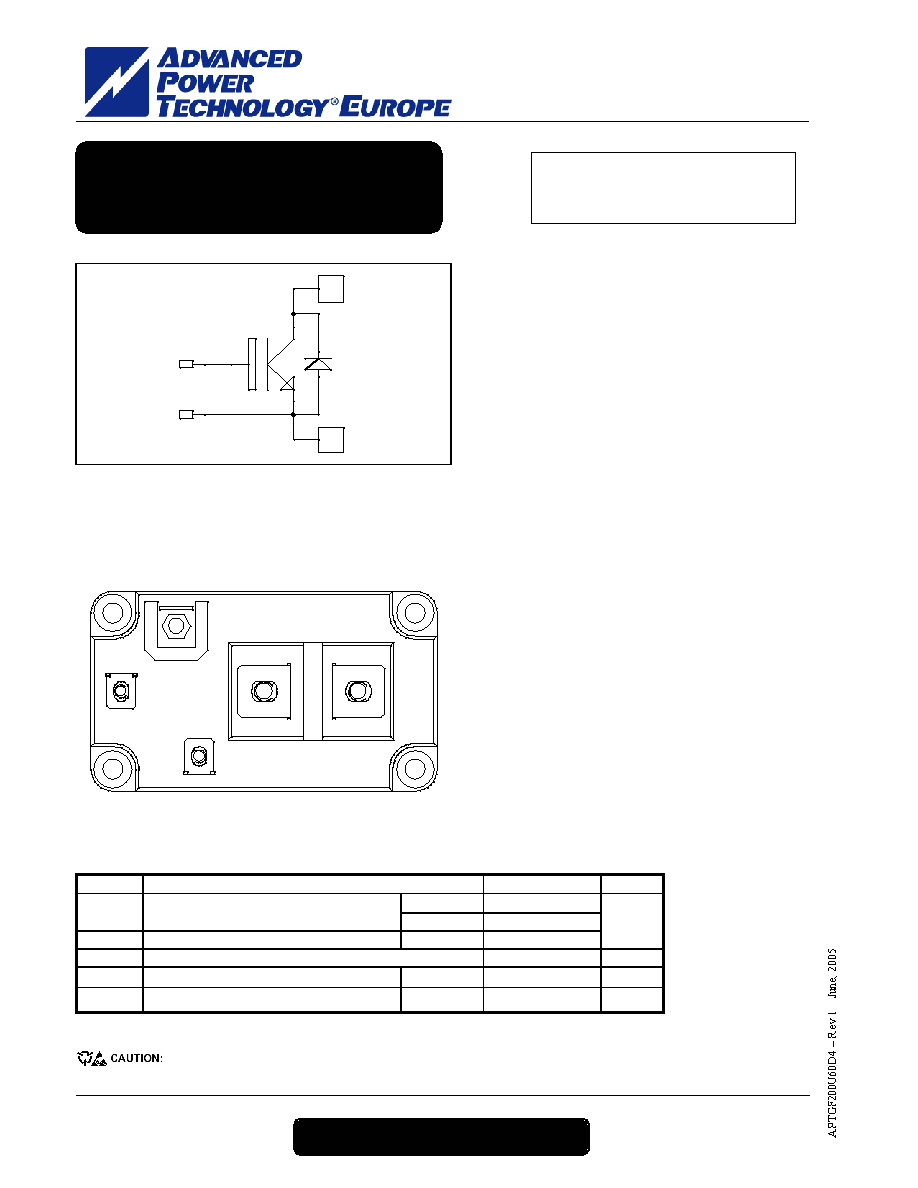

background image
APTGF200U60D4
APT website – http://www.advancedpower.com
1 - 5
Absolute maximum ratings
Symbol
Parameter
Max ratings
Unit
VCES
Collector - Emitter Breakdown Voltage
600
V
TC= 25°C
250
IC
Continuous Collector Current
TC= 80°C
200
ICM
Pulsed Collector Current
TC= 25°C
400
A
VGE
Gate – Emitter Voltage
±20
V
PD
Maximum Power Dissipation
TC= 25°C
735
W
RBSOA
Reverse Bias Safe Operation Area
Tj = 125°C
400A@420V
These Devices are sensitive to Electrostatic Discharge. Proper Handing Procedures Should Be Followed.
3
5
2
1
5
3
4
1
2
VCES = 600V
IC = 200A @ Tc = 80°C
Application
•
Welding converters
•
Switched Mode Power Supplies
•
Uninterruptible Power Supplies
•
Motor control
Features
•
Non Punch Through (NPT) fast IGBT
-
Low voltage drop
-
Low tail current
-
Switching frequency up to 50 kHz
-
Soft recovery parallel diodes
-
Low diode VF
-
Low leakage current
-
Avalanche energy rated
-
RBSOA and SCSOA rated
•
Kelvin emitter for easy drive
•
Low stray inductance
-
M6 connectors for power
-
M4 connectors for signal
•
High level of integration
Benefits
•
Outstanding performance at high frequency
operation
•
Stable temperature behavior
•
Very rugged
•
Direct mounting to heatsink (isolated package)
•
Low junction to case thermal resistance
•
Easy paralleling due to positive TC of VCEsat
Single switch
NPT IGBT Power Module
