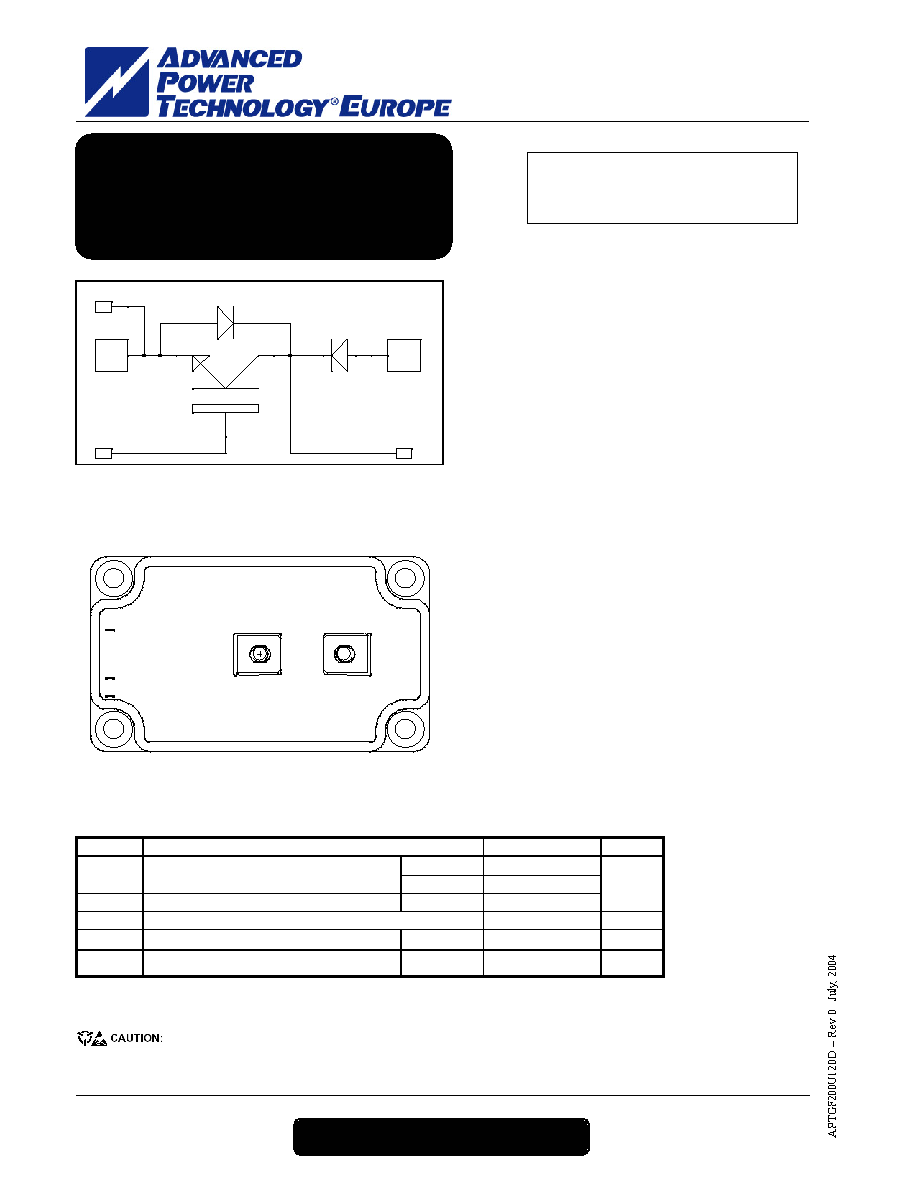

APTGF200U120D

APT website – http://www.advancedpower.com

1 – 6

Absolute maximum ratings

Symbol

Parameter

Max ratings

Unit

VCES

Collector - Emitter Breakdown Voltage

1200

V

Tc = 25°C

275

IC

Continuous Collector Current

Tc = 80°C

200

ICM

Pulsed Collector Current

Tc = 25°C

600

A

VGE

Gate – Emitter Voltage

±20

V

PD

Maximum Power Dissipation

Tc = 25°C

1136

W

SSOA

Switching Safe Operating Area

Tj = 150°C

600A @ 1200V

These Devices are sensitive to Electrostatic Discharge. Proper Handing Procedures Should Be Followed.

CK

EK

G

EC

C

CK

E

G

EK

VCES = 1200V

IC = 200A @ Tc = 80°C

Application

•

Zero Current Switching resonant mode

Features

•

Non Punch Through (NPT) FAST IGBT

-

Low voltage drop

-

Low tail current

-

Switching frequency up to 50 kHz

-

Soft recovery parallel diodes

-

Low diode VF

-

Low leakage current

-

Avalanche energy rated

-

RBSOA and SCSOA rated

•

Kelvin emitter for easy drive

•

Very low stray inductance

-

Symmetrical design

-

M5 power connectors

•

High level of integration

Benefits

•

Outstanding performance at high frequency

operation

•

Stable temperature behavior

•

Very rugged

•

Direct mounting to heatsink (isolated package)

•

Low junction to case thermal resistance

•

Easy paralleling due to positive TC of VCEsat

•

Low profile

Single Switch

with Series diodes

NPT IGBT Power Module
