PLA-7

PLA50F

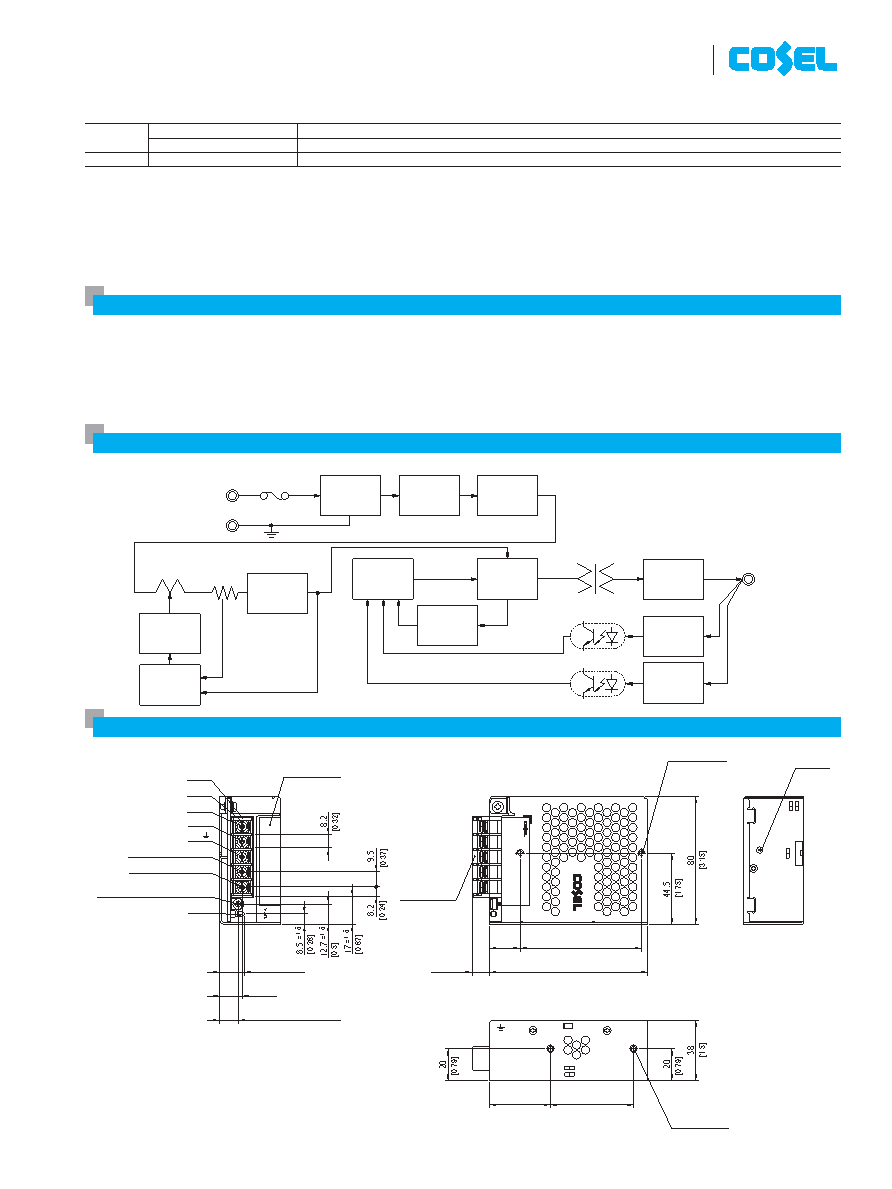

External view

Features

Block diagram

FG

OVER VOLTAGE

PROTECTION

NOISE

FILTER

RECTIFIER

INRUSH

CURRENT

LIMIT

RECTIFIER

AND

FILTER

DC OUT

FUSE

AC250V 2.5A

CONTROL

CONTROL

CONTROL

INVERTER

RECTIFIER

AND

FILTER

INVERTER

BOOSTER

INDUCTOR

CURRENT

SENSING

AC IN 85 - 264V

TRANSFORMER

Photocoupler

Photocoupler

OVER CURRENT

SENSING

- Compact design (Depth: 99mm 3.90inches)

- UL508 approved (Except option -J), and complies with SEMI F47

- Various connection interface options (vertical terminal [-T], AMP connector [-J])

*1 This is the result of measurement of the testing board with capacitors of 22mF and 0.1mF placed at 150

mm from the output terminals by a 20 MHz oscilloscope or a ripple-noise meter equivalent to Keisoku-

Giken RM103.

See 1.6 of Instruction Manual for more details.

*2 Drift is the change in DC output for an eight hour period after a half-hour warm-up at 25C.

*3 As for DC input, consult us for advice.

*4 Consult us about dynamic load and input response.

*5 Output power derating is required. See 3.2 in Instruction Manual.

*6 See 3.3 in Instruction Manual for more details.

*7 Consult us about safety agency approvals for the models with optional functions.

*8 Consult us about other classes.

*

Do not use the power supply in overcurrent conditions or in unspecified input voltage ranges.

Otherwise the internal components may be damaged.

*

Parallel operation is not possible with this mode.

*

Sound noise may be heard from the power supply when used for pulse load.

OTHERS

CASE SIZE/WEIGHT

38X80X99mm [1.50X3.15X3.90 inches] (Excluding terminal block and screw) (WXHXD) / 400g max

COOLING METHOD

Convection

WARRANTY WARRANTY

*6

5 years (subject to the operating conditions)

SPECIFICATIONS

Output voltage

adjustable potentiometer

Output terminal(+)

Output terminal(-)

FG( )

AC(N)

AC(L)

M3.5

TB1

[0.49]

Name plate

Terminal cover

12.5max

[2.05]

[1.5]

Mounting hole

2-M3

38

52 ±0.5

[2.99]

[0.75]

[3.9]

Mounting hole

(Bottom side)

2-M3

99

19

76 ±0.5

Point A

¶ Tolerance : ±1 [±0.04]

¶ Weight : 400g max

¶ PCB Material/thickness : CEM-3 / 1.6mm [0.06inches]

¶ Chassis material : Electric galvanizing steel board

¶ Case material : Electric galvanizing steel board

¶ Dimensions in mm, [ ]=inches

¶ Mounting torque : 0.6N-m max

¶ Screw tightening torque : 1.0N-m max

[0.6]

(LED)

15.3 ±1.5

[0.46]

(Potentiometer)

11.6±1.5

[0.55]

14 ±1.5

LED

April 17, 2018
