H7CC-R

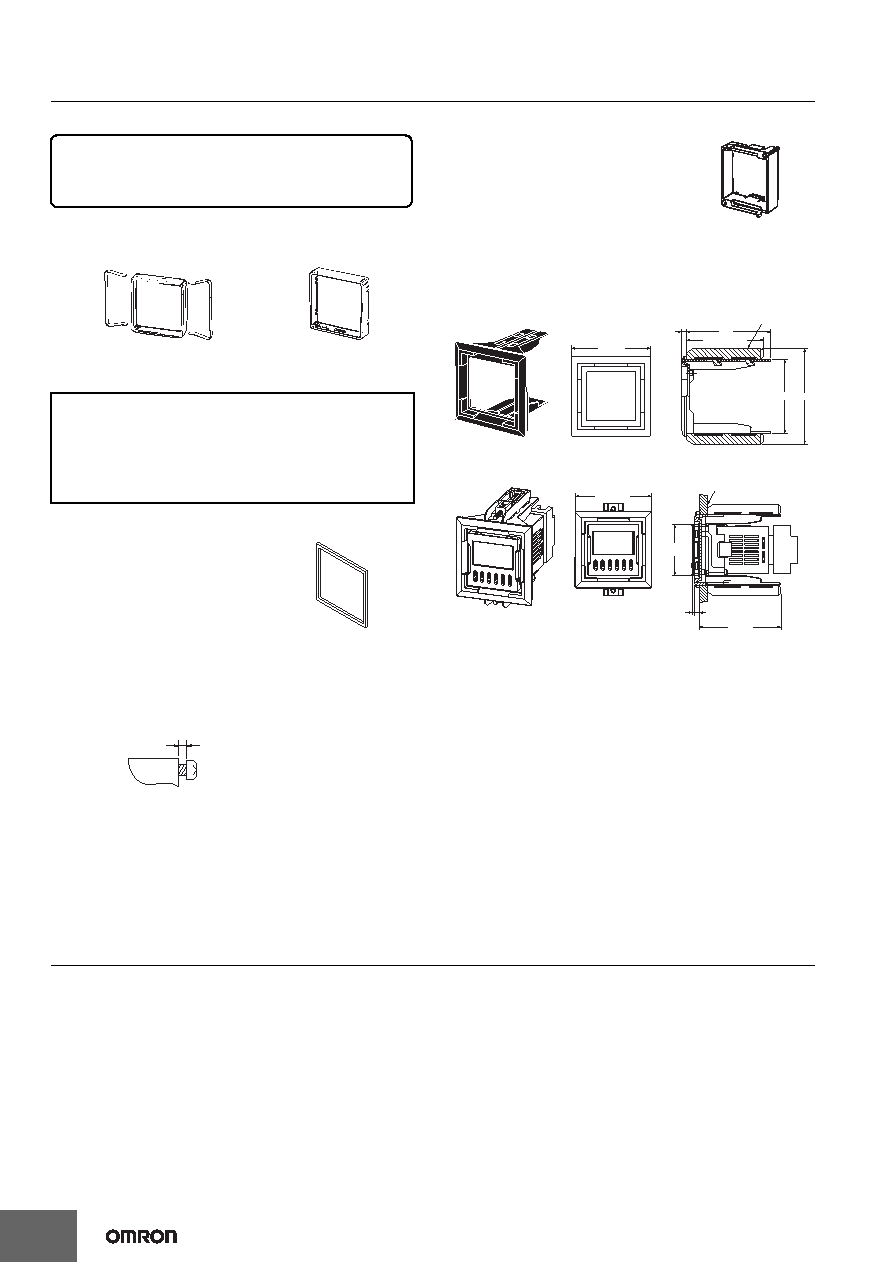

Accessories (Order Separately)

Protecting the Counter/Tachometer in Environments

Subject to Oil

The panel surface of the H7CC-A/-R is water-resistant (conforming to

IP66). To protect the internal circuits from water penetration through

the space between the H7CC and operating panel, waterproof

packing is included. Attach the Y92F-30 Adapter with sufficient

pressure with the reinforcing screws so that water does not penetrate

the panel.

The Waterproof Packing will deteriorate, harden, and shrink

depending on the application environment. To ensure maintaining the

@6 waterproof level, periodically replace the Waterproof Packing.

The periodic replacement time will depend on the application

environment. You must confirm the proper replacement time. Use 1

year or less as a guideline. If the Waterproof Packing is not replaced

periodically, the waterproof level will not be maintained. It is not

necessary to mount the Waterproof Packing if waterproof

construction is not required.

Connection Sockets

Refer to Connection Sockets on page 13 for details.

Optional Products for Track Mounting

Refer to Optional Products for Track Mounting on page 14 for details.

The H7CC's panel surface is water-resistive (conforming to IP

@6)

and so even if drops of water penetrate the gaps between the keys,

there will be no adverse effect on internal circuits. If, however, there

is a possibility of oil being present on the operator's hands, use the

Soft Cover. The Soft Cover ensures protection equivalent to IP54F

against oil. Do not, however, use the H7CC in locations where it

would come in direct contact with oil.

Note: Depending on the operating environment, the condition

of resin products may deteriorate, and may shrink or

become harder. Therefore, it is recommended that resin

products are replaced regularly.

Soft Cover

Y92A-48F1

Hard Cover

Y92A-48

Waterproof Packing

Y92S-P6

Note: The Waterproof Packing is included

with models with screw terminals.

Order the Waterproof Packing separately if it

is lost or damaged. The Waterproof Packing

can be used to achieve IP66 protection.

0.5 to 1 mm

It is recommended that the space

between the screw head and the

Adapter be 0.5 to 1 mm.

Flush Mounting Adapter

Y92F-30

Order the Flush Mounting Adapter with the

following model number separately if it is

lost or damaged.

Note: The Waterproof Packing is included

with models with screw terminals.

69.6 to 77.6

4.7

u 72

u 67

Fixture (provided)

Panel (1 to 8 mm)

u 72

u 48

77.3

2.2

4.7

Y92F-45

Note: 1. The adapter is black in color.

2. The Y92F-45 can be used in combination with the Y92F-30

Adapter provided with the Tachometer.
