LSP5523
Document number: DS44073 Rev. 7 - 2
12 of 17
www.diodes.com
May 2022
© 2022 Copyright Diodes Incorporated. All Rights Reserved.
LSP5523

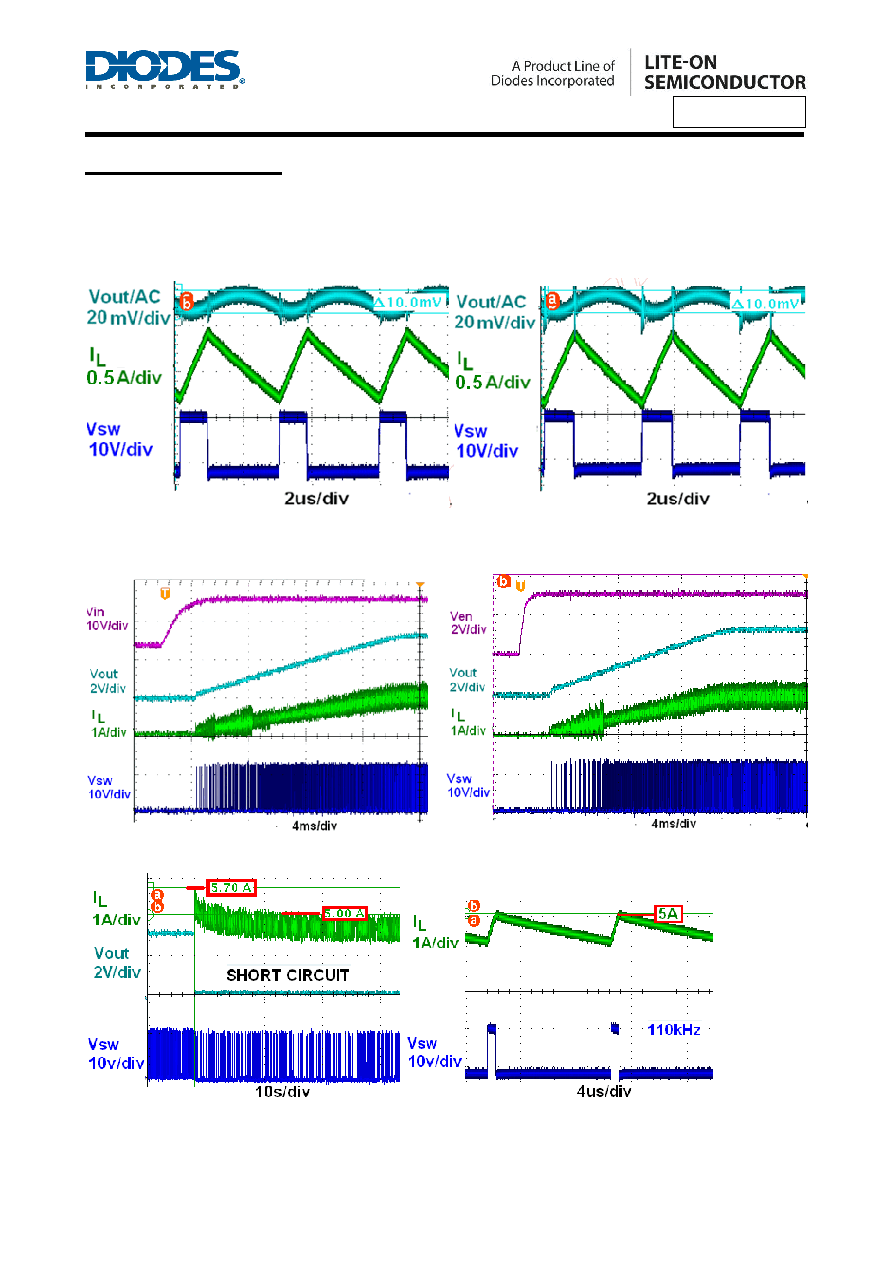

Typical Characteristics
(Vin=12V, IO=0mA, Temperature = 25°C, unless otherwise specified)
Light Load Operation (No load)
Heavy Load Operation (3A Load)
Vin=12V, Iin=8.2 mA, Vout=3,3V
Vin=12V, Vout=3,3V
Startup Vin=12V, Vout=3.3V, Iout=1A
through Vin.
through Enable.
Short Circuit Protection Vin=12V
