Data Sheet

ADM3061E/ADM3062E/ADM3063E/ADM3064E/

ADM3065E/ADM3066E/ADM3067E/ADM3068E

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. H | 14 of 25

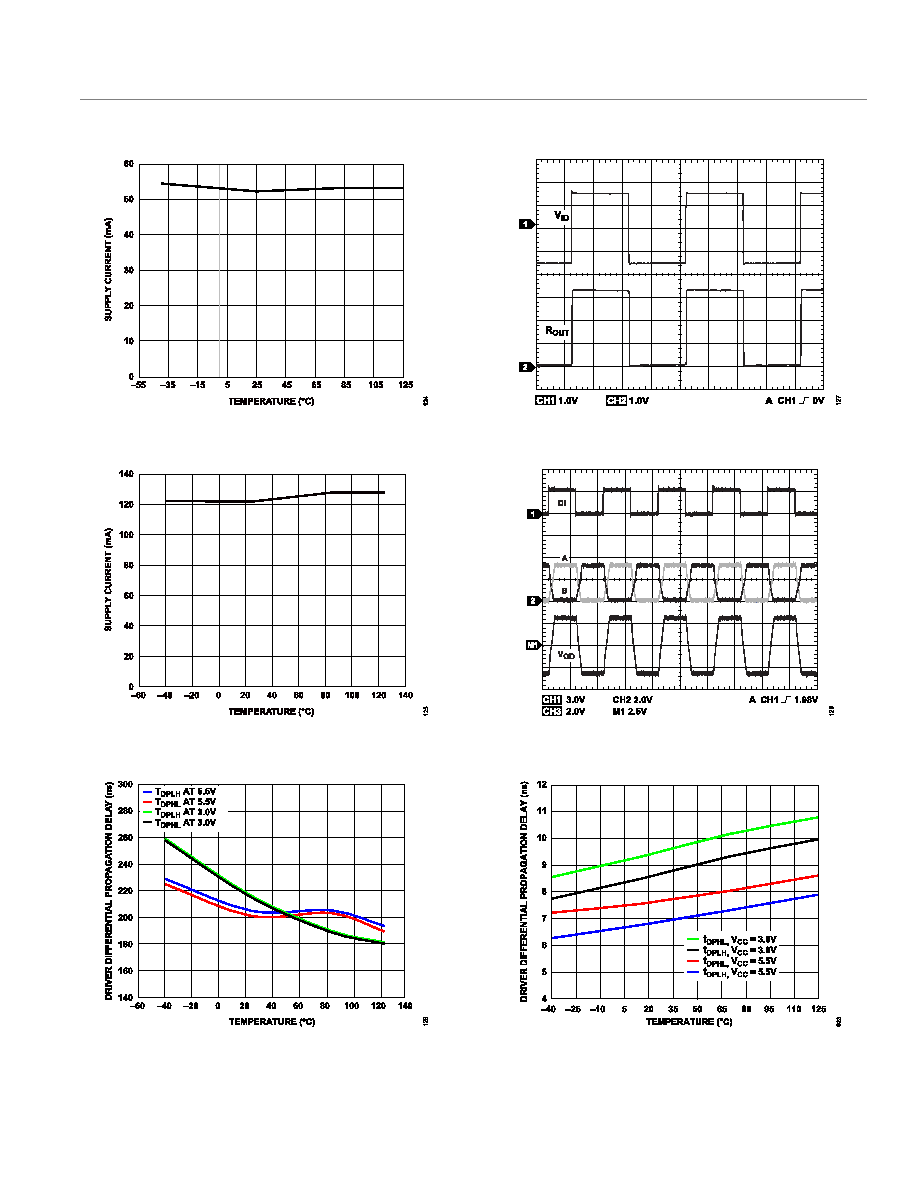

Figure 21. Supply Current (ICC) vs. Temperature, Data Rate = 500 kbps, 500

kbps Models, VCC = 3.0 V

Figure 22. Supply Current (ICC) vs. Temperature, Data Rate = 500 kbps, 500

kbps Models, VCC = 5.5 V

Figure 23. Driver Differential Propagation Delay vs. Temperature, 500 kbps

Models

Figure 24. Receiver Propagation Delay (Oscilloscope Plot), Data Rate = 500

kbps, VID ≥ 1.5 V

Figure 25. Driver Propagation Delay (Oscilloscope Plot), Data Rate = 500

kbps, 500 kbps Models

Figure 26. Driver Differential Propagation Delay vs. Temperature, 50 Mbps

Models
