Product data sheet

Specifications

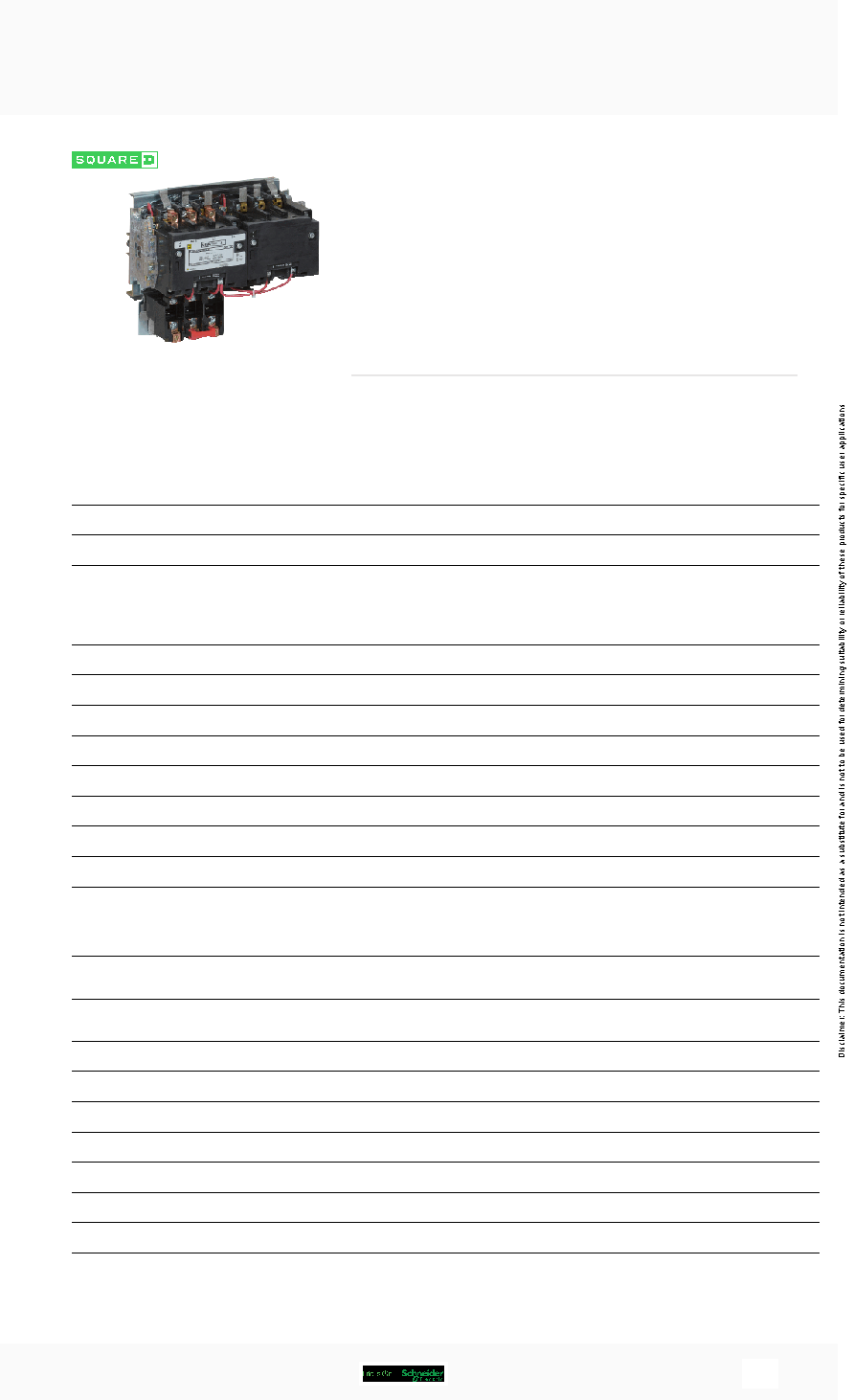

NEMA Starter, Type S, reversing,

horizontal, Size 2, 45A, 25 HP at

575 VAC, 5 kA SSCR, 3 phase, 3

pole, melting alloy overload, 600

VAC coil, open

8736SDO2V07

Product availability : Non-Stock - Not normally stocked in

distribution facility

Main

Product Type

Starter

Product Range

S

Starter Type

Reversing

Complementary

NEMA Size

2

Rated Current

45 A

Number of Poles

3P

Mounting Orientation

Horizontal

Wiring Mode

3 wires

Maximum Voltage Rating

600 V AC

Phase

3 phase

Type of Overload

Melting alloy 3

Horsepower Rating

10 HP 200 V AC

15 HP 230 V AC

25 HP 460 V AC

25 HP 575 V AC

SCCR

Circuit-breaker: 5 kA at 600 V AC

Fuse: 5 kA at 600 V AC

Coil Voltage

550 V AC 50 Hz

600 V AC 60 Hz

Control Circuit Type

Common control circuit

Control Units

No control units

Pilot Light

Without pilot light

Auxiliary Contacts

Without

Terminal Type

Screw clamp terminals

Height

8.50 in (215.90 mm)

Width

9.00 in (228.60 mm)

Depth

6.03 in (153.16 mm)
