VLMB41..

www.vishay.com

Vishay Semiconductors

Rev. 1.9, 05-Jul-2022

2

Document Number: 81641

For technical questions, contact: LED@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

Note

• Not designed for reverse operation

Note

• Luminous intensity is tested at a current pulse duration of 25 ms

and an accuracy of ± 11 %.

These type numbers represent the order groups which include

only a few brightness groups. Only one group will be shipped on

each reel (there will be no mixing of two groups on each reel). In

order to ensure availability, single brightness groups are not be

orderable.

In a similar manner for colors where wavelength groups are

measured and binned, single wavelength groups will be shipped

on any one reel.

In order to ensure availability, single wavelength groups are not

be orderable

Note

• Wavelengths are tested at a current pulse duration of 25 ms

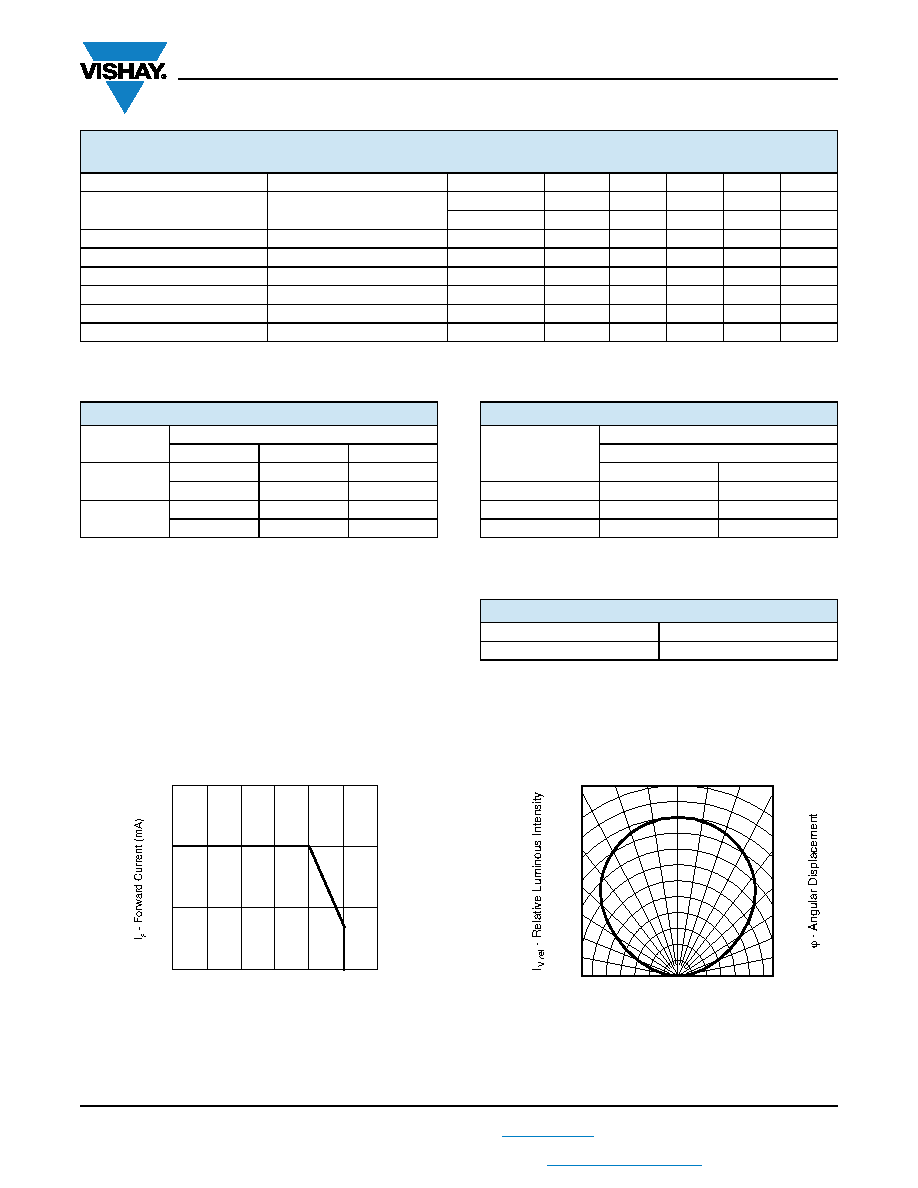

TYPICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)

Fig. 1 - Forward Current vs. Ambient Temperature

Fig. 2 - Relative Luminous Intensity vs. Angular Displacement

OPTICAL AND ELECTRICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)

VLMB41.., BLUE

PARAMETER

TEST CONDITION

PART

SYMBOL

MIN.

TYP.

MAX

UNIT

Luminous intensity

IF = 10 mA

VLMB41P1Q2

IV

45

90

112

mcd

VLMB41P2Q2

IV

56

90

112

mcd

Dominant wavelength

IF = 10 mA

λd

462

469

476

nm

Peak wavelength

IF = 10 mA

λp

-

464

-

nm

Angle of half intensity

IF = 10 mA

ϕ

-± 60

-

°

Forward voltage

IF = 20 mA

VF

-3.2

4.2

V

Temperature coefficient of VF

IF = 10 mA

TCVF

--3-

mV/K

Temperature coefficient of IV

IF = 10 mA

TCIV

-

-0.4

-

%/K

LUMINOUS INTENSITY CLASSIFICATION

GROUP

LIGHT INTENSITY (mcd)

OPTIONAL

MIN.

MAX.

P

145

56

256

71

Q

171

90

2

90

112

COLOR CLASSIFICATION

GROUP

BLUE

DOM. WAVELENGTH (nm)

MIN.

MAX.

3

462

468

4

466

472

5

470

476

CROSSING TABLE

VISHAY

OSRAM

VLMB41..

LBT67C

0

10

20

30

0

20406080

100

T

amb - Ambient Temperature (°C)

20913

120

0.4

0.2

0

95 10319

0.6

0.9

0.8

0°

30°

10°

20°

40°

50°

60°

70°

80°

0.7

1.0
