SSM2302
Rev. 0 | Page 9 of 20
TYPICAL APPLICATION CIRCUITS
GAIN
CONTROL
FET
DRIVER
MODULATOR
VDD
VDD
GND
GND
VDD
INTERNAL
OSCILLATOR
OUTR+
OUTR–
OUTL+
OUTL–
GAIN
CONTROL
BIAS
FET
DRIVER
MODULATOR
INR+
INR–
GAIN
SD
GAIN
SHUTDOWN
INL+
INL–
0.01µF1
1 INPUT CAPS ARE OPTIONAL IF INPUT DC COMMON-MODE
VOLTAGE IS APPROXIMATELY VDD/2.
0.01µF1
0.01µF1
0.01µF1
LEFT IN+
LEFT IN–
RIGHT IN–
RIGHT IN+
SSM2302
0.1µF
VBATT
2.5V TO 5.0V
10µF

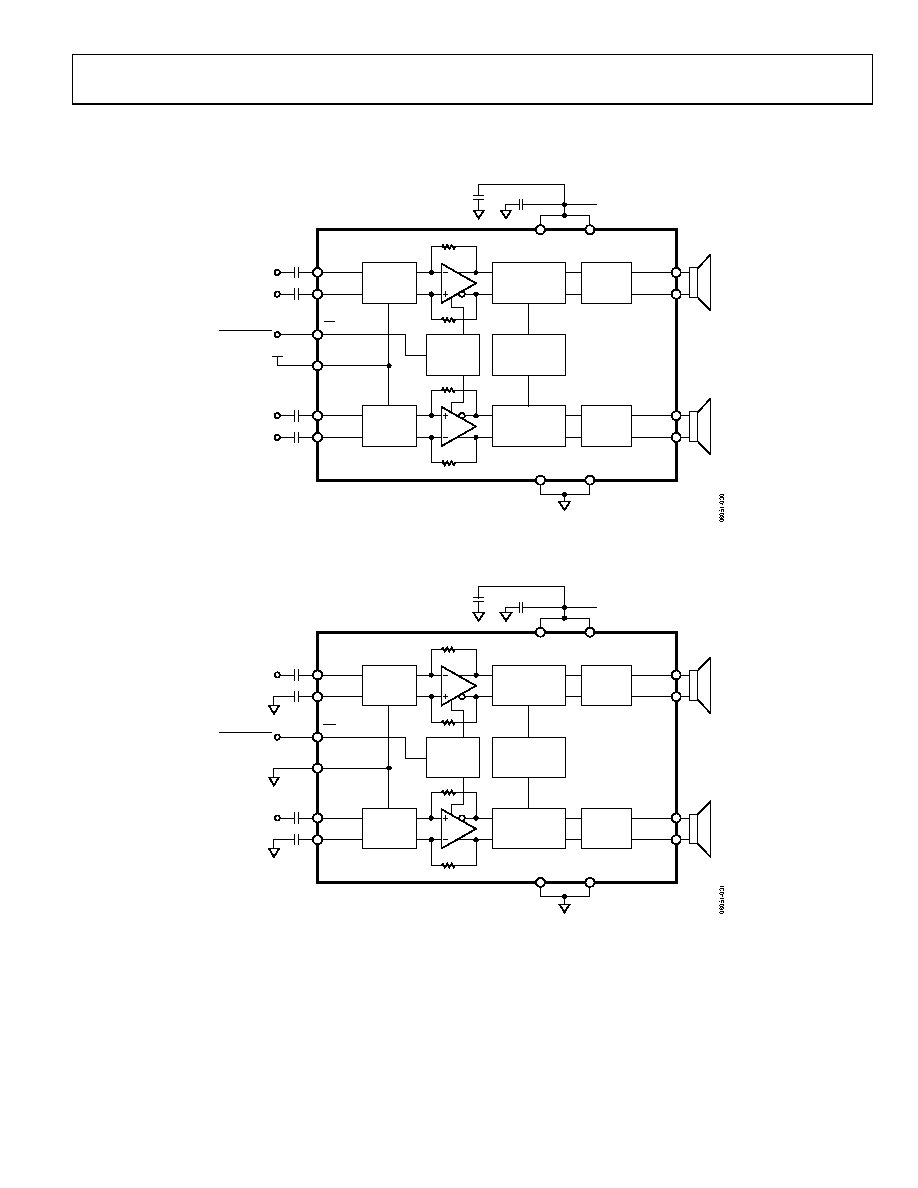

Figure 20. Stereo Differential Input Configuration, Gain = 12 dB
GAIN
CONTROL
FET
DRIVER
MODULATOR
VDD
VDD
GND
GND
INTERNAL
OSCILLATOR
OUTR+
OUTR–
OUTL+
OUTL–
GAIN
CONTROL
BIAS
FET
DRIVER
MODULATOR
INR+
INR–
SD
SHUTDOWN
INL+
INL–
0.01µF
0.01µF
0.01µF
0.01µF
LEFT IN
RIGHT IN
SSM2302
GAIN
GAIN
0.1µF
VBATT
2.5V TO 5.0V
10µF
Figure 21. Stereo Single-Ended Input Configuration, Gain = 6 dB
