TSOP532..DF1P, TSOP534..DF1P
www.vishay.com
Vishay Semiconductors
Datasheet Values Refer to PCN-OPT-1225-2022-REV-0
Rev. 1.3, 17-Jan-2023
9
Document Number: 82892
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

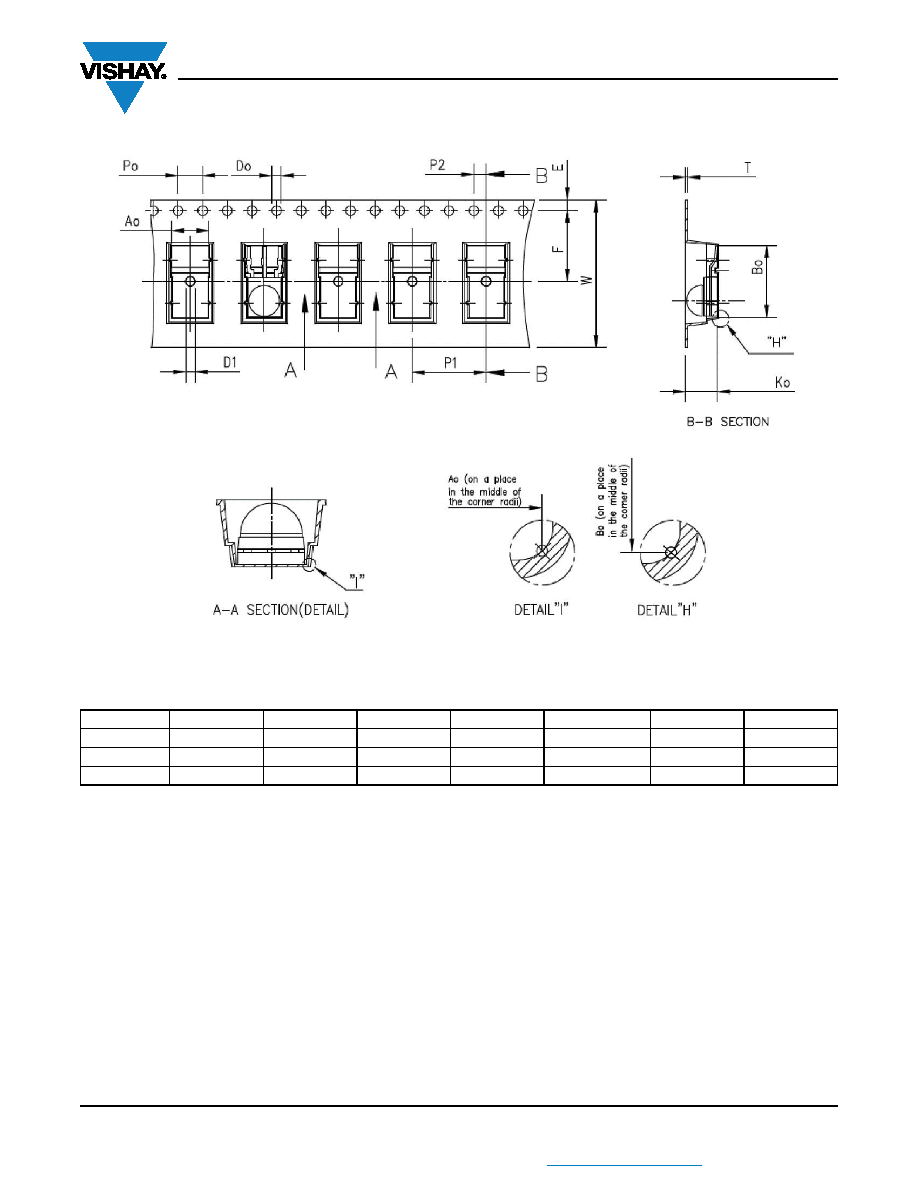

PACKAGING DIMENSIONS in millimeters
Item
A0
B0
K0
P0
P1
P2
T
Dimensions
6.08 ± 0.10
11.75 ± 0.10
5.25 ± 0.10
4.0 ± 0.10
12.0 ± 0.10
2.0 ± 0.10
0.40 ± 0.05
Item
EF
D0
D1
W
10P0
Dimensions
1.75 ± 0.10
11.50 ± 0.10
1.55 ± 0.05
1.5 min.
24.0 +0.30 / -0.10
40.0 ± 0.20
Drawing-No.: 9.700-5399.01-4
Issue: 2; 29.06.18
(0.4)
