TSOP572..H, TSOP574..H

www.vishay.com

Vishay Semiconductors

Datasheet Values Refer to PCN-OPT-1224-2022

Rev. 2.1, 30-Aug-2022

9

Document Number: 82646

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

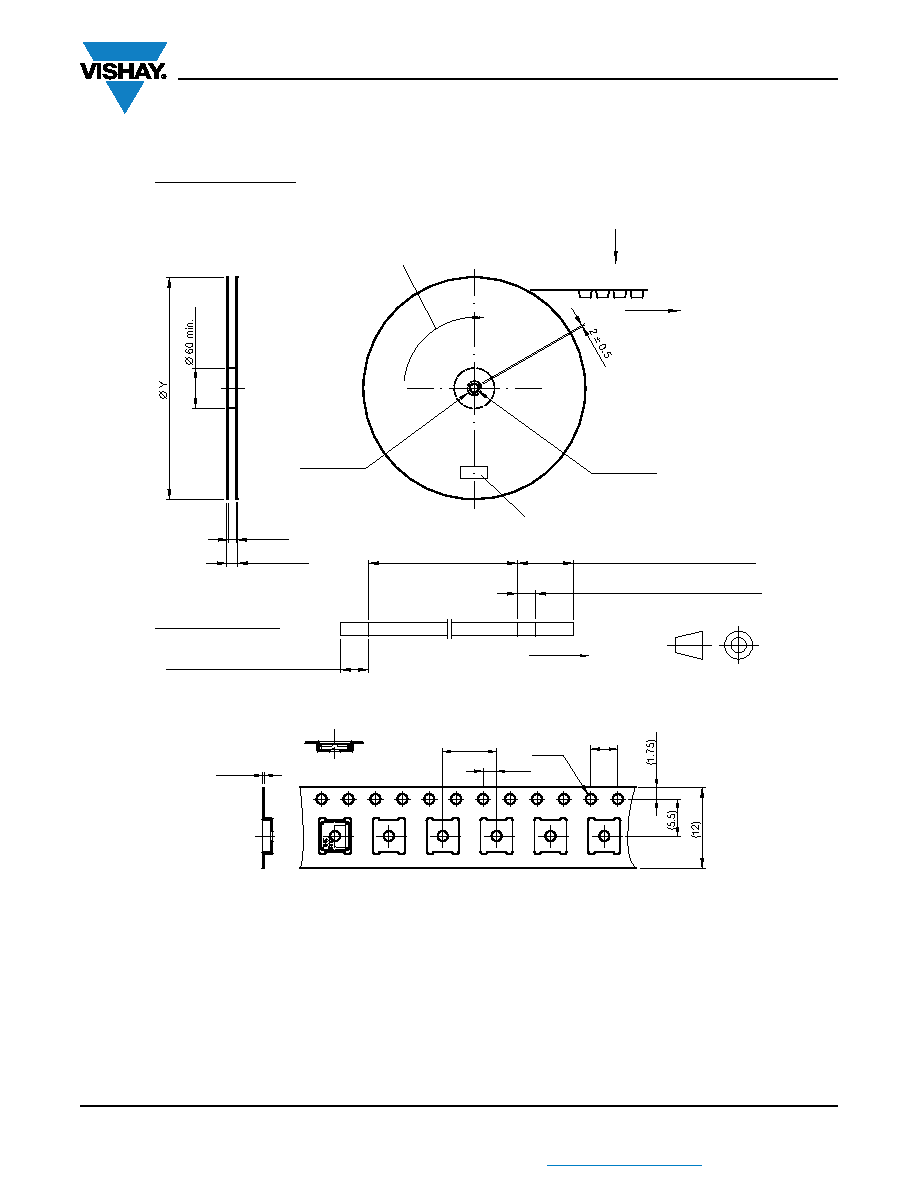

TAPING VERSION TSOP57... DIMENSIONS in millimeters

Reel size “Y”

TT1 Ø 180 ± 2 = 1500 pcs.

Unreel direction

X

Tape position

coming out from reel

Ø 13 ± 0.2

Ø 21 ± 0.8

Label posted here

18.4 max.

(12.4)

Parts mounted

Empty leader 400 mm min.

100 mm min. with cover tape

Direction of pulling out

Empty trailer 200 mm min.

X 2 : 1

(8)

(2)

(4)

(Ø 1.5)

(0.3)

Technical drawings

according to DIN

specifications

Drawing-No.: 9.700-5380.01-4

Issue: 3; 07.03.18

Not indicated tolerances ± 0.1

Tape and reel dimensions:

Leader and trailer tape:
